Name
Outdoor siren and strobe light
Outdoor battery operated siren
Features
Highly resistant ABS housing UV prevention
Magnetic dynamic sounders with 120DB at 1M
Battery Backup
Inside metal cover for double prodection
Positive/negative siren trigger
Positive/negative flash trigger
3 way tamper switch protection

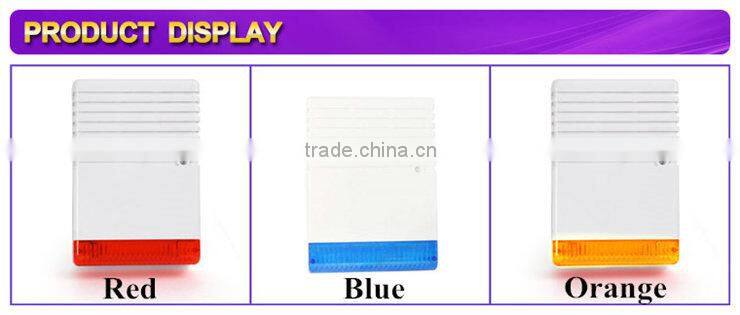

Len colors in red,blue,orange optional
Characteristic

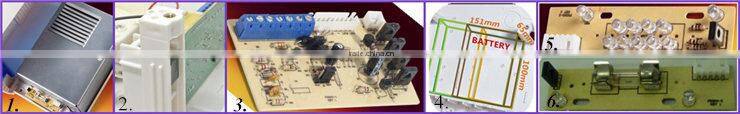

1. Internal metal protection dual protection
2. Triple Tamper Protection(Lid,wall and screw tamper detection)
3. PCB design with moisture-proof
4. Suitable for various Rechargeable Lead Acid Batter(eg. 12V 1.3Ah,12V 7.2Ah etc.)
5. Bulb Lens Alarm Twin Alternating LEDS
6. LED Lens optional Twin Alternating LEDS
7. Loudest Piezo Sound design up to 120DB
Technical Data:
Item |
Outdoor siren 305 |
Sound Pressure Level |
120dB |
Fundamental |
Yelp |
Siren Tone |
1850Hz |
Frequency Range |
1300-2400Hz |
Flash Light |
Lamp 12VDC/5W |
Power Supply Voltage |
13.8-14.2VDC |
Charge Current Limit |
250mA |
Current consumption (Speaker and Strobe) |
Standby:8mA, Alarm:1600mA @13.8VDC |
Maximum Power |
50W(Peak) |
Trigger Level |
Trigger Low=Max. 1VDC Trigger High = Min.9VDC |
Siren Alarm Period |
F.T-Follow trigger TMR-3min |
Input Impedance (Alarm/Flash/Trigger) |
1k Ohm |
Tamper Switch |
N.C 28VDC Max current 0.1A -open when cover is removed |
Backup Battery |
Rechargeable Lead Acid Battery 12V up to 1.3Ah |
Low Battery Level |
8VDC±0.3VDC |
Material |
External Box: ABS(3mm thick). Internal Cover:Metal (0.8mm thick) |
Operating temperature |
-30 °C to +60 °C |
IP Rating |
IP45 |
Dimensions |
280*195*100 |
Weight (Without Battery) |
1.85KGS |
