24v Unique Smoke Alarm

US$ 3 - 6 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

P&H

Model Number:

S27

Shenzhen P&H Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name P&H

Model Number S27

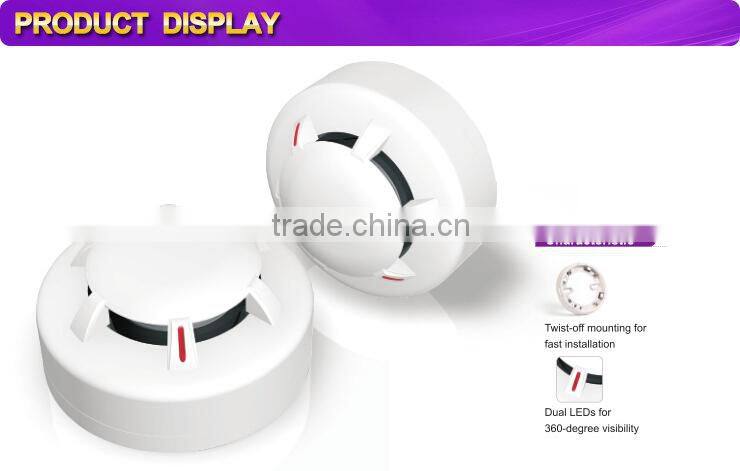

Product disply

Product Description

Name

2-wire/ 3-wire Conventional Photoelectric Smoke Detector
4-wire Conventional Photoelectric Smoke Detector

24v unique smoke alarm

Features

Smoke Detector designed to comply with EN54 standards

Non-polar power input

2 wire or 4 wire optional

Dual 2 Led lights

Power-off reset & Remoted LED indicator output ( 2 wire)

Auto-reset or power-off reset optional (4 wire)

Low power consumption, high precision and stability

Durable Sensor Head; Excellent smoke access

Easy Installation and maintenance

Extended Warranty

Characteristic

Twist-off mounting for fast installation

Removable labyrinth for easy cleaning & maintenance

Dual LEDs for 360 degree visibility

Technical Data:

Model	S27P-2	S27P-4
Operating Voltage	DC9-35V
Standby Current	20μA	13mA(NC), 4mA(NO)
Alarm Current	35mA@DC12V, 83mA@DC24V	3mA(NC), 19mA(NO)
Alarm Output	Remote LED indicator	Relay output (N.O/N.C) and LED flash
Smoke Alarm Density	2.06%/ft
Detecting Area	80 square meter (with the installation height of 6m-12m), and 60square meter (with the installation height less than 6m)
Installation Method	Ceiling Mounted
Operating Temperature	-10℃ ~ +55℃
Operating Humidity	≤95%RH
Dimensions	100mm(Dia)×48mm(H)
