Name
Magnetic Switch

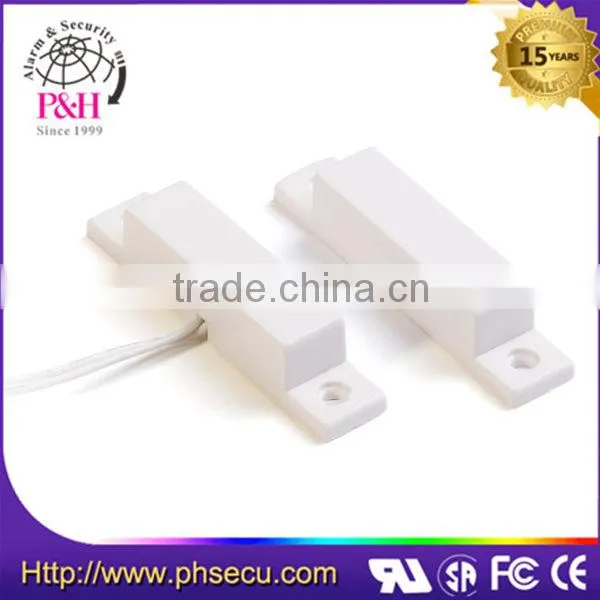

Magnet door contact/magnet door closer
Features
1. Screw mount
2. 17 inch (43cm) side leads with AWG #22
3. Magnet : Permanent Ferriye
4. Color : white, brown, grey
5. ABS Housing
Characteristic
Japanese UL listed OKI Reed
Open Loop or SPDT is available if required
Deactivated Rhodium Plated Reed
Technical Data:
Surface Mounted:
Model |
Loop Type |
Reed Form |
Operating Gap Inch (mm) |
Max Contact Resistance (Ohm) |
Max Rating Current (mA) |
Max Switching Voltage (VDC) |
ES130 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |
ES130B |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES130C |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES131 |
closed |
NO |
1/2(16±5) |
0.2 |
500 |
100 |

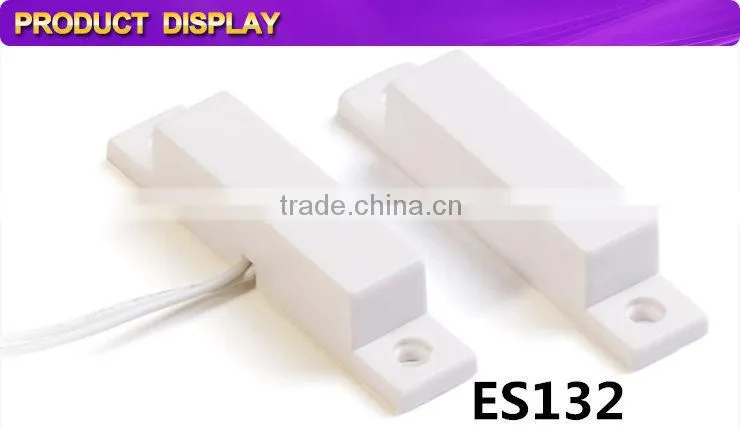

ES132 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES133 |
closed |
NO |
1(22.5±2.5) |
0.2 |
500 |
100 |
ES134 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES137 |
closed |
NO |
1/2(16±5) |
0.2 |
500 |
100 |
ES138 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |
ES138B |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES139 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |
ES153 |
closed |
NO |
1(25±5) |
0.2 |
500 |
100 |
ES154 |
closed |
NO |
2(50±10) |
0.2 |
500 |
100 |
ES157 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |
THE MAGNETIC CONTACTS FOR YOUR CHOOSE:
Overhead Mounted:
Surface Mounted:
Recessed Mounted:
Four Care You Need!
You care for produce!
--We supply high quality products by using qualified materials and sophisticated equipment
You care for price!
--We offer reasonable price by improving the technology and management
You care for service!
--We provide all-sided services by our efficient teams
You care for innovation!
--We issue 4 to 8 new products per year
As a market-driven and customer -centric company.P&H strive to create products and services that enhance human life by continually developing innovative technologies centering on the fields of Alarm and Security.
