Help CenterElectronics Reed Switch With Cable
Related Products
Name
Magnetic Switch

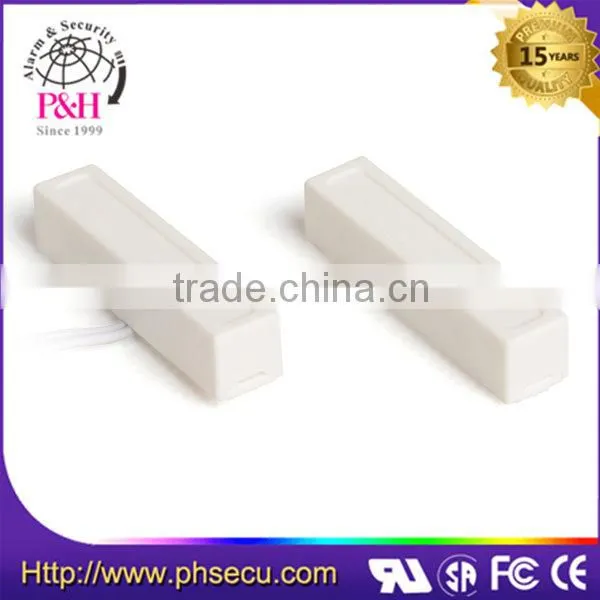

Electronics reed switch with cable
Features
1. Concealed screw mount with attractive cover
2. 12 inch (30cm) center leads with AWG #24
3. Magnet : NdFeB
4. Color : white, brown, grey
5. Warranty: 3 Years
5. ABS Housing
Characteristic
Japanese UL listed OKI Reed
Open Loop or SPDT is available if required
Deactivated Rhodium Plated Reed
Technical Data:
Surface Mounted:
Model |
Loop Type |
Reed Form |
Operating Gap Inch (mm) |
Max Contact Resistance (Ohm) |
Max Rating Current (mA) |
Max Switching Voltage (VDC) |
ES130 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |
ES130B |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES130C |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES131 |
closed |
NO |
1/2(16±5) |
0.2 |
500 |
100 |
ES132 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES133 |
closed |
NO |
1(22.5±2.5) |
0.2 |
500 |
100 |
ES134 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES137 |
closed |
NO |
1/2(16±5) |
0.2 |
500 |
100 |
ES138 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |
ES138B |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ES139 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |
ES153 |
closed |
NO |
1(25±5) |
0.2 |
500 |
100 |
ES154 |
closed |
NO |
2(50±10) |
0.2 |
500 |
100 |
ES157 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |
THE MAGNETIC CONTACTS FOR YOUR CHOOSE:
Overhead Mounted:
Surface Mounted:
Recessed Mounted:
Four Care You Need!
You care for produce!
--We supply high quality products by using qualified materials and sophisticated equipment
You care for price!
--We offer reasonable price by improving the technology and management
You care for service!
--We provide all-sided services by our efficient teams
You care for innovation!
--We issue 4 to 8 new products per year
As a market-driven and customer -centric company.P&H strive to create products and services that enhance human life by continually developing innovative technologies centering on the fields of Alarm and Security.
