Smoke Detector Smoke Alarm With Gsm Alarm Function

US$ 3 - 7 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

P&H

Model Number:

S17

Shenzhen P&H Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name P&H

Model Number S17

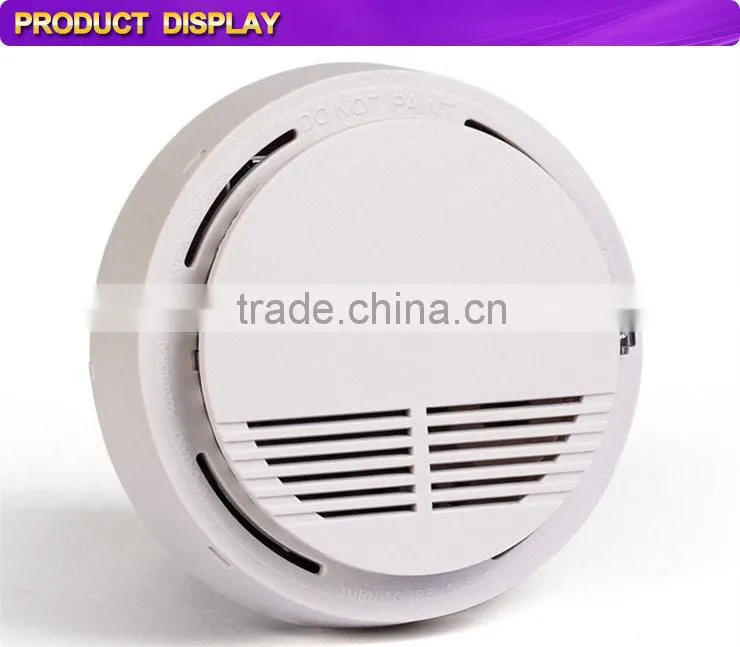

Product disply

Product Description

S17 Series

S17PS Standalone Photoelectric Smoke Detector

S17IS Standalone Ionization Smoke Detector

S17P-4 4-wire Conventional Photoelectric Smoke Detector

S17I-4 4-wire Conventional Ionization Smoke Detector

S17PF Wireless Smoke Detector

Smoke detector smoke alarm with gsm alarm function

Features

Sleek, low-profile design

Low current draw

Built-in sounder with high dB level of 85dB

Durable Sensor Head; Excellent smoke access

Auto-reset

Easy Installation and maintenance

Easy replacement of battery

Manual test button with sound&flash alarm

Extended Warranty

Characteristic

Manual Test Button

Twist-off mounting for fast installation

Technical Data:

Model	S17PS	S17IS	S17P -4	S17I-4	S17PF
Operating Voltage	DC 9V battery(6F22)		DC12V		DC 9V battery(6F22)
Standby Current	10uA		200uA		10uA
Alarm Current	20mA (Max)
Detecting Area	80 square meter(with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m)
Alarm Output	Sound & flash alarm (≥85dB/M)		Relay output(N.O/N.C) and Sound & flash alarm		RF signal(315MHz or 433MHz) and sound & flash
Installation Method	Ceiling Mounted
Operating Temperature	-10°C ~ +55°C
Operating Humidity	95%RH (Max)
Dimensions	107mm(Dia)x35mm(H)
