En14604 Approved Smoke Alarm

US$ 3 - 7 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

P&H

Model Number:

S13

Shenzhen P&H Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name P&H

Model Number S13

Product disply

Product Description

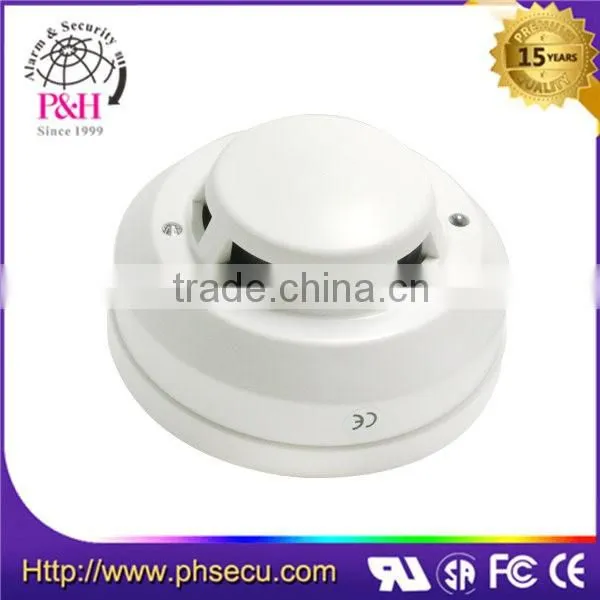

Smoke detector

4-wire Cigarette Smoke Sensor Smoke Detector

2-wire Cigarette Smoke Sensor Smoke Detector

En14604 approved smoke alarm

Features

Smoke Detector Designed to comply with EN-54 standards

High Anti-RFI with inside stainless housing

Two or four wire models optional

Sleek, low-profile housing design

Low power consumption, high precision and stability

Durable Sensor Head; Excellent smoke access

Power-off reset for 2 wire connection

Auto-reset or power-off reset optional for 4 wire connection

Easy Installation and maintenance

24V mode available

Extended Warranty

Characteristic

Dual LEDs for 360-degree visibility

Stainless steel inner housing for high ANTI-RFI

Twist-off mounting for fast installation

Technical Data:

Model	S13P-2	S13P-4
Operating Voltage	DC 24V	DC 12V
Standby Current	55uA	12mA(NC);2mA(NO)
Alarm Current	22mA@DC12V;40mA@DC24V	3mA(NC);15mA(NO)
Detecting Area	80 square meter(with the installation height of 6m-12m) and 60 square meter (with the installation height less than 6m)
Alarm Output	Conventional Output and LED flash		Relay output (N.O/N.C) and LED flash
Installation Method	Ceiling Mounted
Operating Temperature	-10°C ~ +55°C
Operating Humidity	95%RH(max)
Dimensions	103mm(Dia)x51mm(H)
