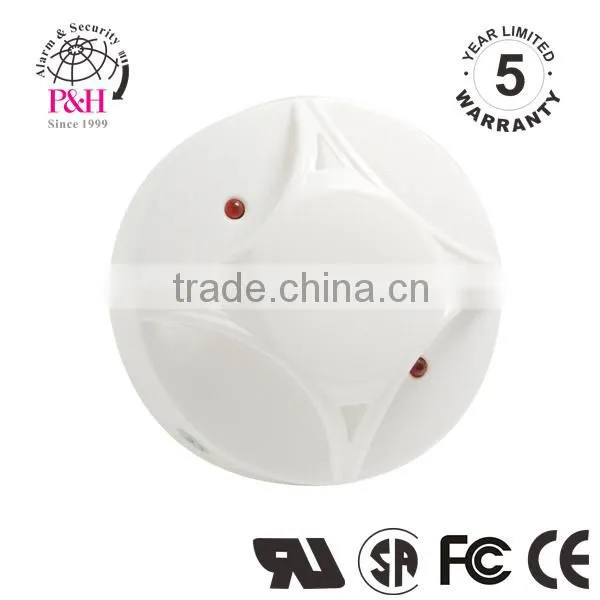

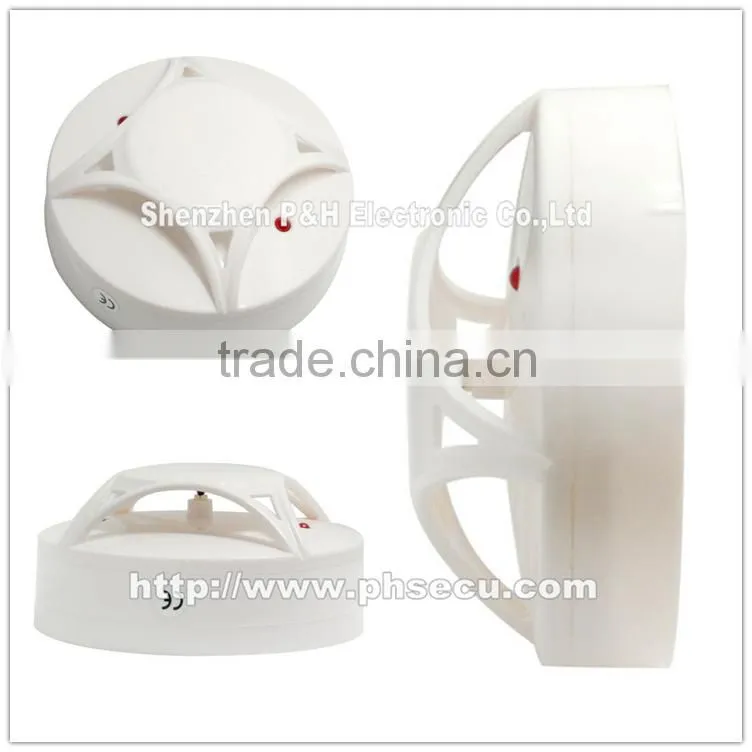

Fire Alarm Systerm Rate of Rise Heat Detector

US$ 3 - 7 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

P&H

Model Number:

H64-2-RH

Shenzhen P&H Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name P&H

Model Number H64-2-RH

Specifications

1.heat detector with CE approval
2.OEM available
3.Extended warranty
4.Rate of rise heat detector
5.Delivery on time

Product Description

Product description

Name

Heat detector

2 wire Rate of Rise (8-15 °C /min)heat detector

Feature

1.Moden Stylish design

2.Low Power consumption

3.Remoted LED indicator output(2 wire)

4.Non-polar input power supply

5.Extended warranty

6.Easy Installation and maintenance

Characteristic

Dual LEDs for 360-degree visibility

Twist-off mounting for fast installation

Technical Data

Model	H64-2	H64-4
Operating Voltage	DC9~35V
Standby Current	55uA	12mA(NC), 500uA(NO)
Alarm Current	35mA@DC12V, 83mA@DC24V	3mA(NC), 19mA(NO)
Alarm Output	Conventional alarm output & LED flash	Relay output and LED flash
Smoke Alarm Density	2.06%/ft
Installation Method	Ceiling Mounted
Operating Temperature	-10°C ~ +55°C
Operating Humidity	95%RH(max)
Dimensions	100mm(Dia)x48mm(H)

Ordering Information

Model	Detail
H64-2-FH	2 wire Fixed Temperature(57 °C ,135F)heat detector
H64-2-RH	2 wire Rate of Rise (8-15 °C /min)heat detector
H64-2-FRH	2 wire Fixed Temperature (57 °C ,135F) & Rate of Rise (8-15 °C /min)heat detector
H64-4-FH	4 wire Fixed Temperature(57 °C ,135F)heat detector
H64-4-RH	4 wire Rate of Rise (8-15 °C /min)heat detector
H64-4-FRH	4 wire Fixed Temperature (57 °C ,135F) & Rate of Rise (8-15 °C /min)heat detector
