24V Fire Alarm System Sensor Combined Heat and Smoke Detector

Shenzhen P&H Electronic Co., Ltd.

US$ 3 - 6 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

P&H

Model Number:

HS53 Combined heat and smoke detector

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name P&H

Model Number HS53 Combined heat and smoke detector

Specifications

1. 24V combined heat and smoke detector
2. CE approval
3. OEM available
4. Warranty 2 years
5. Delivery on time

Product Description

Product description

Name

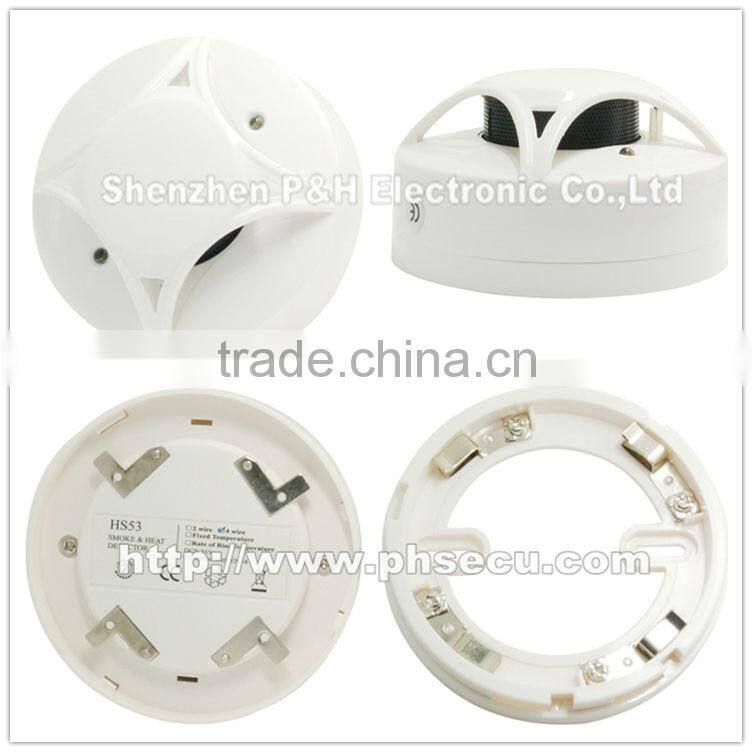

HS53P-2 2-wire Combined Heat and Smoke Detector

HS53P-4 4-wire Combined Heat and Smoke Detector

Features

1. Combined Heat and Smoke Detector design to comply with EN54 standard

2. 2 wire or 4 wire optional

3. Fixed temperature 57°C,135F heat sensor

4. Non-polar power input

5. Extended warranty

6. Easy Installation and maintenance

Characteristic

Dual LEDs for 360-degree visibility

Twist-off mounting for fast installation

Technical Data

Model	HS53P-2	HS53P-4
Operating Voltage	DC9~35V
Standby Current	300uA	12mA(NC), 2mA(NO)
Alarm Current	18mA@DC12V, 42mA@DC24V	3mA(NC), 15mA(NO)
Alarm Output	Conventional alarm output & LED flash	Relay output (N.O/N.C) and LED flash
Smoke Alarm Density	2.06%/ft
Installation Method	Ceiling Mounted
Operating Temperature	-10°C ~ +55°C
Operating Humidity	95%RH(max)
Dimensions	100mm(Dia)x48mm(H)
