Photoelectric Smoke and Heat Detector Combined

US$ 3 - 7 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

P&H

Model Number:

HS51

Shenzhen P&H Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name P&H

Model Number HS51

Product disply

Product Description

Name

Detector

HS51P-2 2-wire Smoke and Heat Detector

HS51P-4 4-wire Smoke and Heat Detector

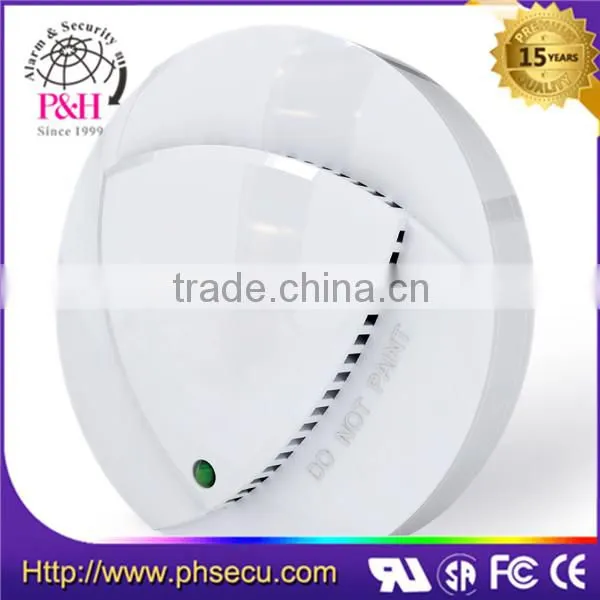

Photoelectric smoke and heat detector combined

Features

Designed to comply with UL539 standards

2 wire or 4 wire optional

Fixed temperature 57ºC,135F heat sensor

Non-polar power input

Extended warranty

Easy Installation and maintenance

Characteristic

Removable labyrinth for easy cleaning

Twist-off mounting for fast installation

Technical Data:

Model	HS51P-2	HS51P-4
Operating Voltage	DC9~35V
Standby Current	55uA	12mA(NC), 2mA(NO)
Alarm Current	22mA@DC12V, 40mA@DC24V	3mA(NC), 15mA(NO)
Alarm Output	Remote LED indicator	Relay output (N.O/ N.C) and LED flash
Smoke Alarm Density	2.06%/ft
Alarm Temperature	57ºC (135F)
Detecting Area	80 square meter (with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m)
Installation Method	Ceiling Mounted
Operating Temperature	-10°C ~ +55°C
Operating Humidity	Less than r equal to 95%RH
Dimensions	100mm(Dia)x46mm(H)
