wifi antenna ibeacon outdoor wireless bridge AP CPE
Introduction
1.Using Atheros 9 series chipset,600Mhz frequency and 128M RAM,which stand for high level of the wireless industry.
2.Powerful Todacore firmware system,easy to set-up,can choose 2.3-2.7G(4-6G),avoid from any disturb easily,get faster speed and better quality of communication.
Features
1. Indicator light indicates work state,small size, conveient and flexible installation.
2. Dual-network port POE power supply.
3. 3 antenna system, higher bandwidth.
4. Powerful radiator make the work of the board to maintain optimal state.

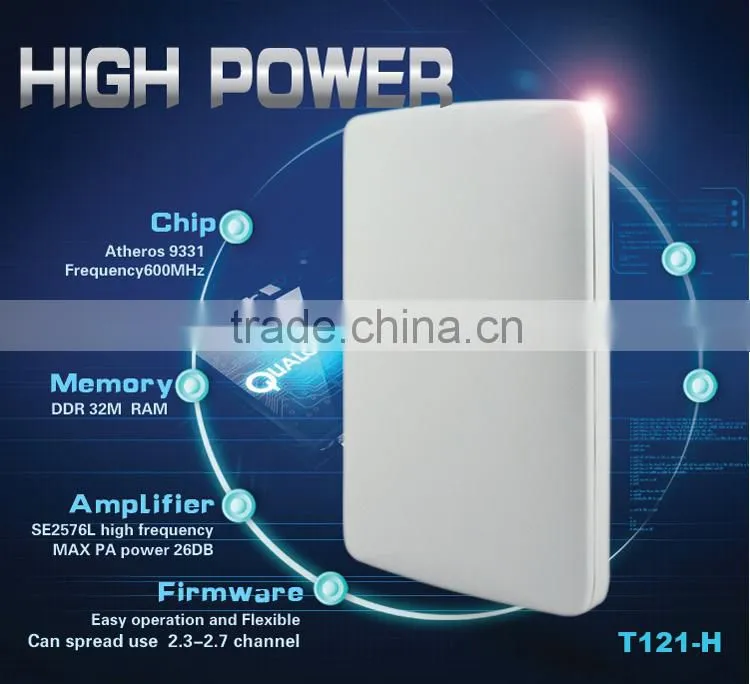

5. It's a CPU which have 8M FLASH 32M memory and 400MHz,it's a hardware platform to make it more stable and high-performance.
Specification
| Hardware specification | |||
| ATHEROS AR9331 400MHZ CPU SE2576L RF 32MDDR 8M FLASH | |||
| Frequency Bands | 2.3~2.7GHz | ||
| RF Output Power | 27dBm | ||
| Modulation Mode | DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM | ||
| Sensitivity | 150M:-68dBm@10% PER; | ||
| 130M:-68dBm@10% PER | 108M: -68dBm@10% PER | ||
| 54M: -68dBm@8% PER | 11M: -85dBm@8% PER | ||
| 6M: -88dBm@8% PER | 1M: -90dBm@8% PER | ||
| Data and operating parameters | |||
| Automatic rate selection |
802.11n:6.5-144.44Mbps | ||
| 802.11b:11/5.5/2/1Mbps | |||
| 802.11g:108/54/48/36/24/18/12/9/6Mbps | |||
| Standard | IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE 802.3u,IEEE 802.3af | ||
| Support Protocols | CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5 | ||
| Size and environmental | |||
| Environmental | Physical performance | ||
| Weight | 0.855kg/1.24kg(packing) | Operation Temperature | -30~65℃ |
| Size | 350*220*45mm | Storage Temperature | -50~80℃ |
| Packing | 350*250*90mm | Storage Humidity | ≤95%(non-condensation) |
| Management | |||
| Web management | Yes | ||
| SNMP MIB | Yes | ||
| Telnet | Yes | ||
| Security | |||
| MAC control | Yes | ||
| encryption | WEP key 64/128 bits,WPA,WPA2,802.1x | ||
| Antenna System | |||
| Frequency Band(Mhz) | 2300-2700 | ||
| Polorization | Vertical | ||
| Increase Ratio(DBi) | 16DB | ||

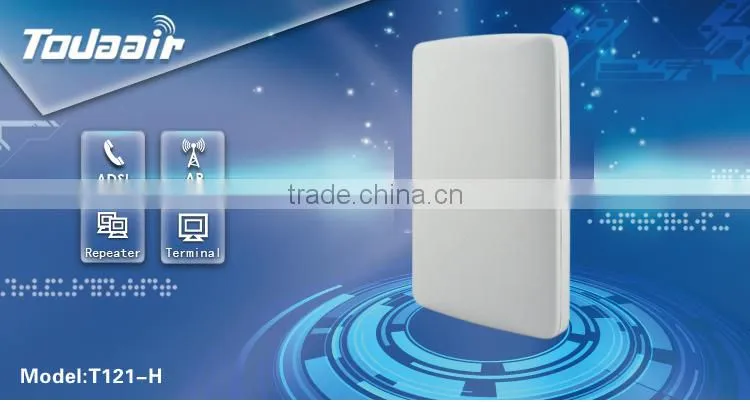

Pictures

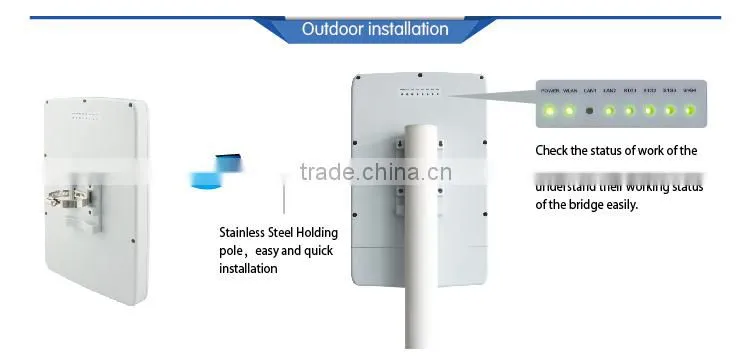

Wireless bridge Introduction
TODAAIR wireless bridge adopt special injection molding material,deal with a variety of weather.
The surface use of special technologies,rich in tactile,at the mean time,it has a stylish atmosphere,
Compact design for comfort and control,beautiful well-designed in appearance.

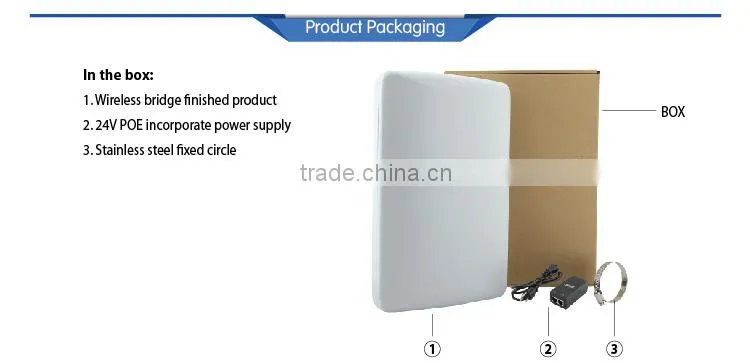

package

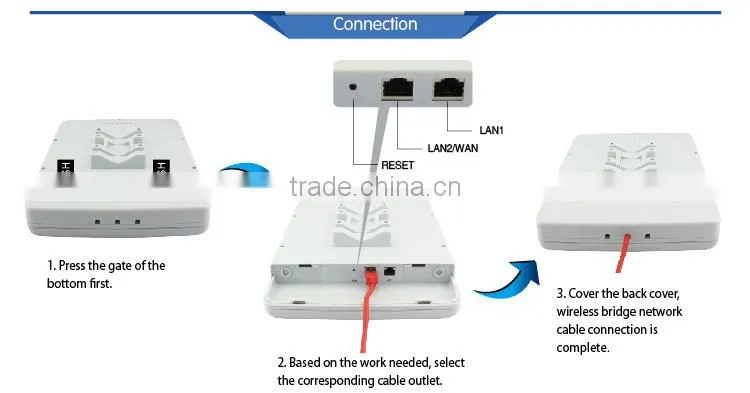

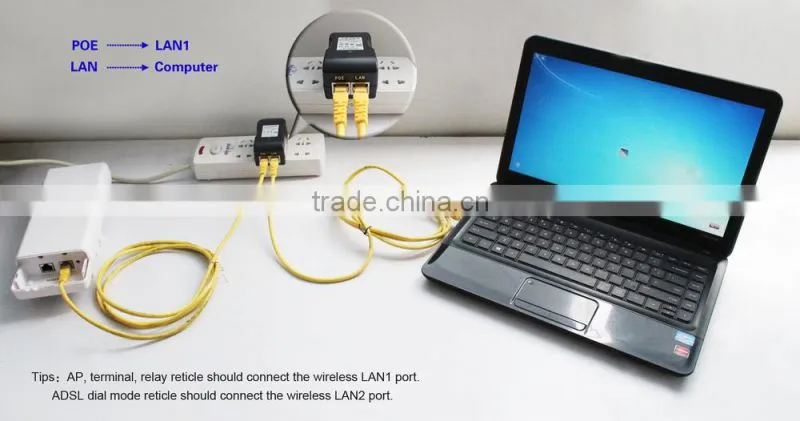

connection

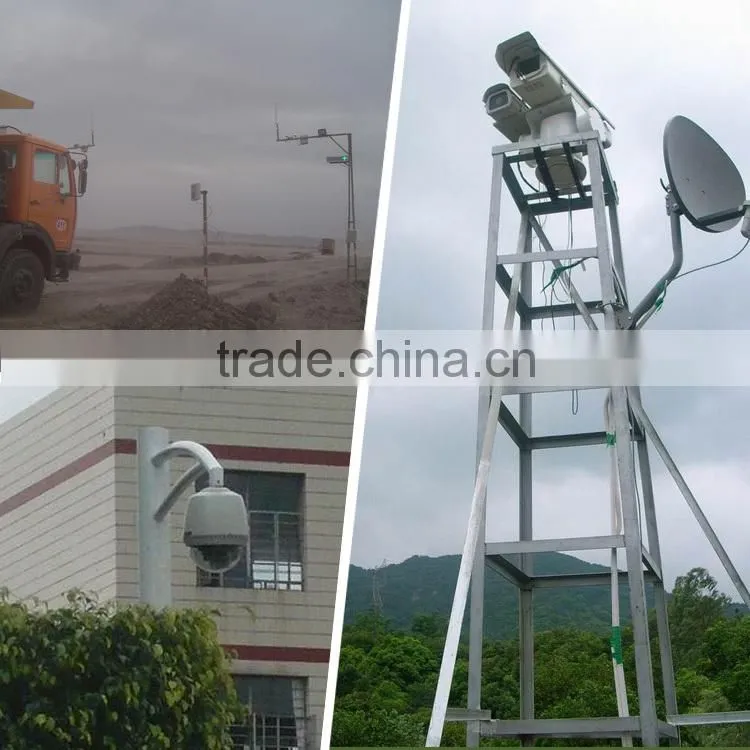

Application Case
Our device can be used by many environment,such as traffic monitoring,schools,constructional engineering.....
About our company
For firmware download and more products,please copy and open this website:
