The other beam sensors for your choose:
Name

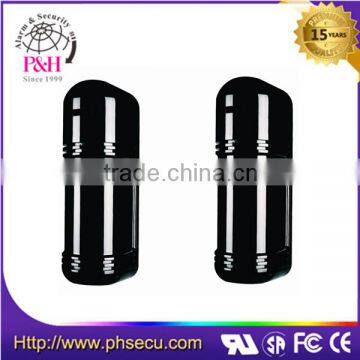

Photoelectric Beam Detector
Infrared security dual beam
Features
1.Triplicate Photoelectric Detector EM-B50/75/100/150/200/250
2.Triplicate synchronized pulsed beams designed for greater stability
3.Design Durability
4.Frost and dew protection
5.High grade aspherical lens
6.99.5% beam blocking stability
7.Adjustable beam interruption period
8.Quick optical and voltage alignment to speed up positioning
9.A.G.C (Automatic Gain Control) Circuit
Technical Data:
Specifications Model |
EM100-B50 |
EM100-B75 |
EM100-B100 |
EM100-B150 |
EM100-B200 |
EM100-B250 |
Detection Method |
Infrared photoelectric |
|||||
Range Outdoor |
50m |
75m |
100m |
150m |
200m |
250m |
Range Indoor |
100m |
225m |
300m |
450m |
400m |
750m |
Beam Characteristics |
Pulsed infrared dual beams |
|||||
Interruption period |
50~700msec(selectable) |
|||||
Power input |
DC12~24V/AC11~18V |
|||||
Current consumption |
70mA max |
80mA max |
90mA max |
100mA max |
100mA max |
|
Alarm period |
2sec(±1)nominal |
|||||
Alarm output |
Form C relay(AC/DC30V 0.5A max) |
|||||
Tamper switch |
N.C. Opens when cover is removed |
|||||
Operating temperature |
-25℃ to +55℃ |
|||||
Environment humidity |
95%max |
|||||
Alignment angle |
±10°vertical, ±90°horizontal |
|||||
Mounting |
Wall or pole |
|||||
Weight |
2168g(Both transmitter and receiver) |
|||||
Appearance |
PC Resin(Black) |
|||||
IP Rating |
IP65 |
|||||
