2.4Ghz wireless wifi router 300 square cover indoor wireless router 300M MIMO for hotels
- 10000 Piece / Pieces per Month
- Shenzhen Guangzhou Jiangmen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Products Status: | Stock | Type: | Wireless | Application: | Other, wireless router |
Function: | Firewall, VPN, Other, Firewall, VPN, wireless router | LAN Ports: | Other, wireless router | WAN Ports: | Other, wireless router |
Certification: | CE,FCC | Brand Name: | Topda OEM | Model Number: | T324 |
Place of Origin: | Guangdong, China |
Product Description
2.4G 300M Ceiling AP
Introduction

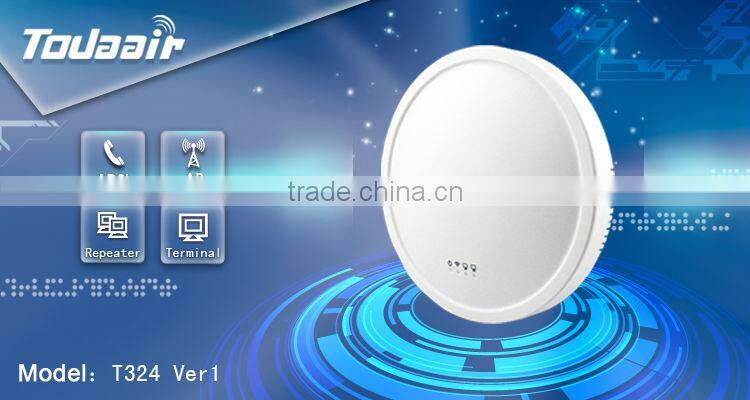

1.Todaair T324 is the latest ceiling wireless bridge, working for AP,WDS,Terminal,Relay

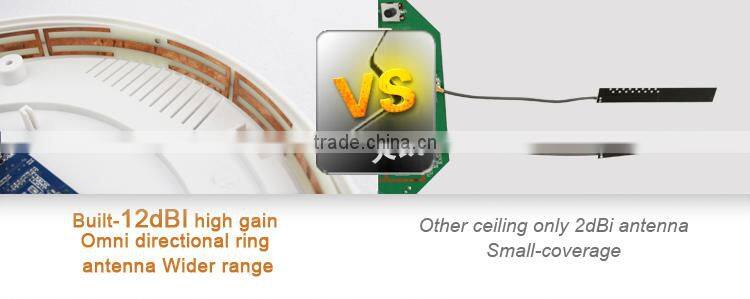

2.It has 12DB creative circular omnidirectional antenna which provides higher gain and broader coverage.
3.The bridge operates in the 2.4G frequency and the transmit rate up to 300M.Make sure that the Wifi signal is accessible and stable.
Features

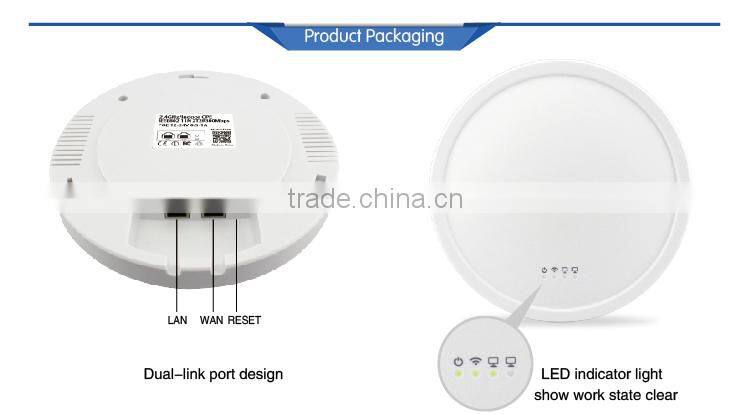

1.Indicator light indicates work state clearly.The design of ceiling is elegant.
2.Dual-network port POE power supply
3.Double polarized system,higher bandwidth
4.Powerful radiator made the work of the board to maintain optimal state

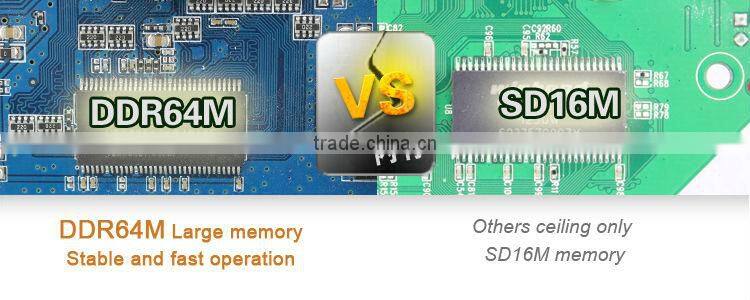

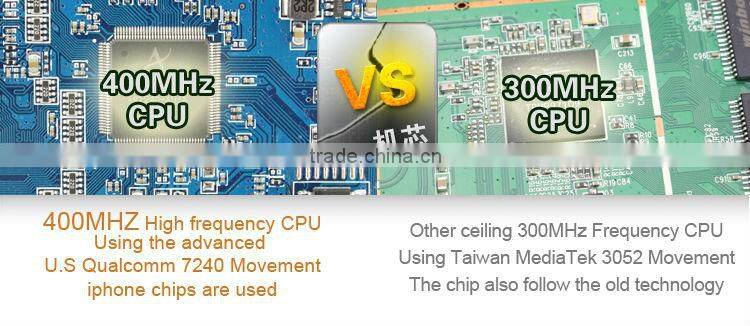

5.8M FLISH 64M memory and 400MHZ,it’s a hardware platform to make powerful the board
more stable and high-performance
Specification
Hardware specification | |||
ATHEROS AR7240 400MHZ CPU RF 64MDDR 8M FLASH | |||
Frequency Bands | 2.4GHz | ||
RF Output Power | 26dBm | ||
Modulation Mode | DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM | ||
Sensitivity | 300M:-68dBm@10% PER; | 270M:-68dBm@10% PER; | |
130M:-68dBm@10% PER | 108M: -68dBm@10% PER | ||
54M: -68dBm@8% PER | 11M: -85dBm@8% PER | ||
6M: -88dBm@8% PER | 1M: -90dBm@8% PER | ||
Data and operating parameters | |||
Automatic | 802.11n:6.5-144.44Mbps | ||
802.11b:11/5.5/2/1Mbps | |||
802.11g:108/54/48/36/24/18/12/9/6Mbps | |||
Standard | IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE 802.3u,IEEE 802.3af | ||
Support Protocols | CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5 | ||
Size and environmental | |||
Environmental | Physical performance | ||
Weight | 0.7kg | Operation Temperature | -30~65°C |
Size | 210*210*40mm | Storage Temperature | -50~80°C |
Packing | 310*250*65mm | Storage Humidity | ≤95%(non-condensation) |
Management | |||
Web management | Yes | ||
SNMP MIB | Yes | ||
Telnet | Yes | ||
Security | |||
MAC control | Yes | ||
encryption | WEP key 64/128 bits,WPA,WPA2,802.1x | ||
Antenna System | |||
Frequency Band(Mhz) | 2400 | ||
Polorization | Omnidirectional | ||
Increase Ratio(DBi) | 12DB |
Model | T324 |
Frequency range | 2.4Ghz |
Transmission Rate | 300Mbps |
Power | 100MW |
Coverage | 300m2 |
Antenna | 12dBi |
Wireless bridge introduction

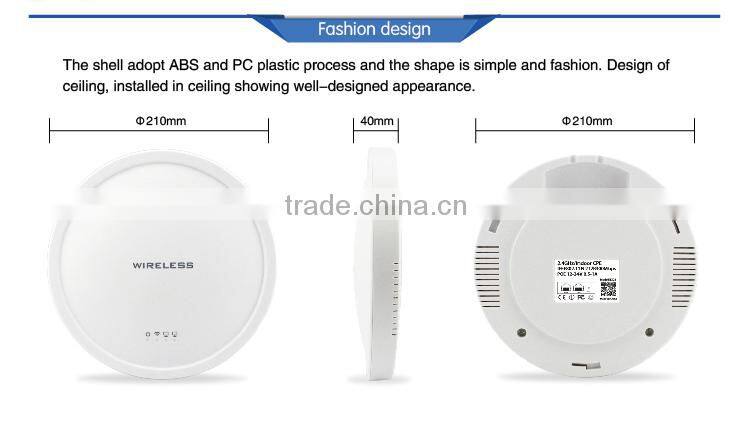

The shell adopt ABS and PC plastic process and the shape is simple and fashion.Design of ceiling,installed in ceiling showing well-designed appearance.
Application Case

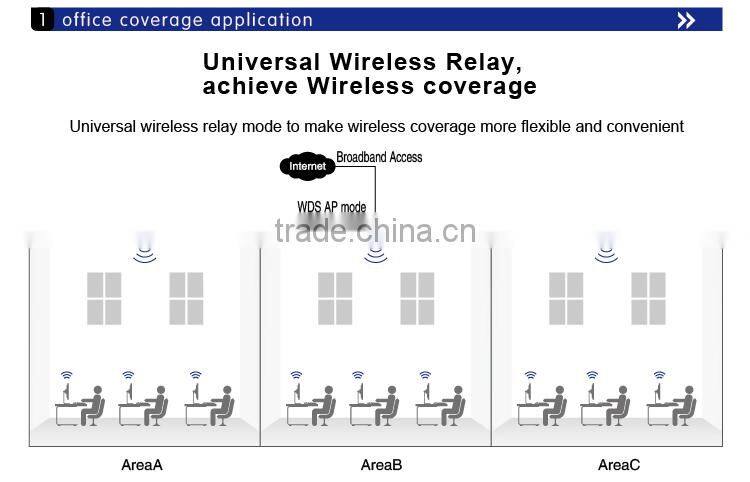

Our device can be used by many environment,such as traffic monitoring,schools,constructional engineering.......
About our company
For firmware download and more products,please copy and open this website:
Contact Us
- Jiangmen Topda Electronic Co., Ltd.
- Contact nameRay Xian
- Phone86-0750-3671877
- AddressF.6 Electronic Building, No.1 Shuinan Guangdeli Road Jiangmen,Guangdong
