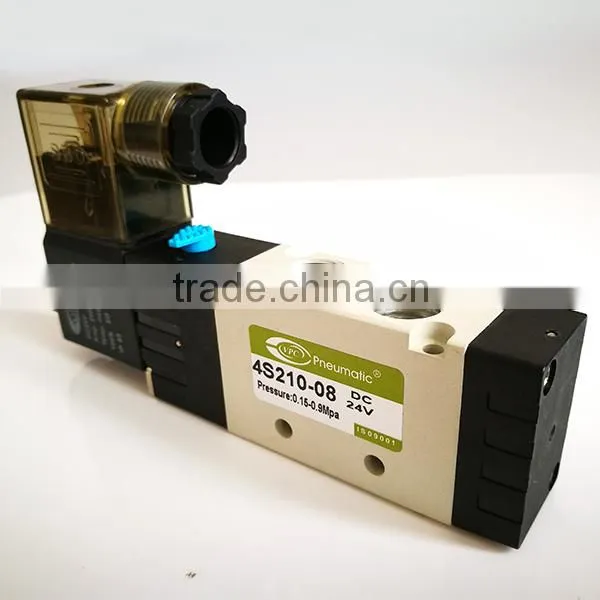

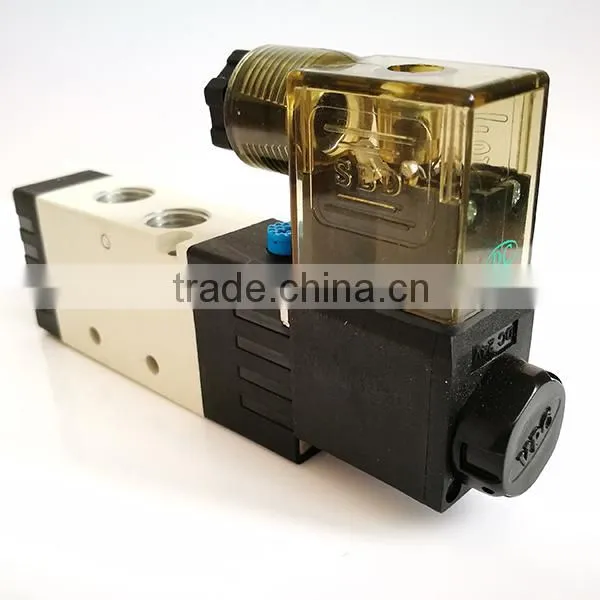

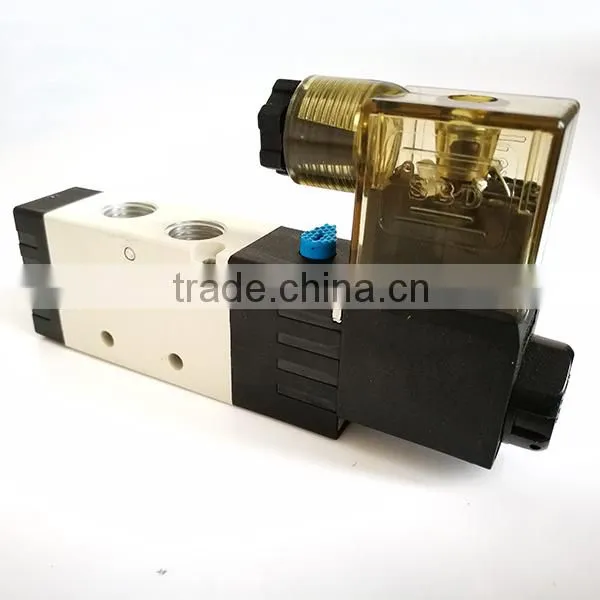

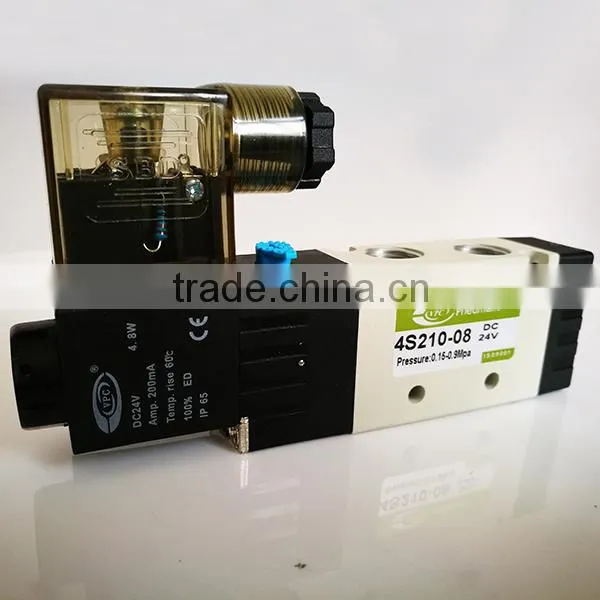

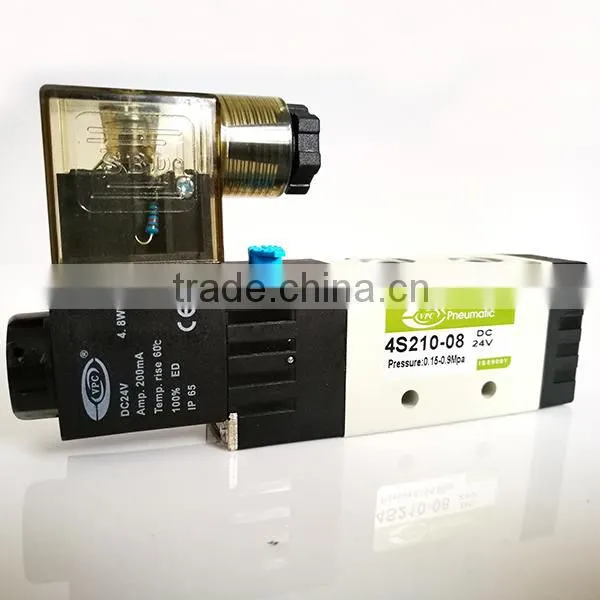

Help CenterGas Controlled Reset Single-control Electromagnetic Valve
Related Products
-
Assembly Valve Block Wiring HarnessUS$ 35 - 300MOQ: 10 Pieces -
Valvula SolenoideUS$ 2 - 10MOQ: 50 Pieces
-
SLP Series Brass Solenoid ValveUS$ 15 - 180MOQ: 10 Pieces
-
4V Series Pneumatic Directional 3 Position 5 Port Single Control Solenoid ValveUS$ 10 - 200MOQ: 10 Pieces
-
VDF Series Water Solenoid ValveUS$ 20 - 200MOQ: 10 Pieces
The utility model discloses the inner structure of a gas control resetting single electromagnetic valve reset by using compressed air to push the valve pole, which is formed an integral part by a valve body, a valve pole, pilot head components and connection box components, etc. connected by bolts. The upper side of the valve body is equipped with two work cave mouths and windpipes are communicated with the upper and lower work cave mouths of the air cylinder respectively. The exhaust gas from the air cylinder comes back to the inner cave of the valve body through the work cave mouth. The inner cave of the valve body contains a valve pole, a resetting piston and a pilot piston, all of which are sealed with rubber seal ring to prevent from the communication or leakage among all work inner caves. The ventilation branch is positioned at the back of the pilot piston and resetting piston. The pilot head components are equipped with a moving iron core, a static iron core and an electromagnetic coil surrounding the outside. In the resetting of the valve pole, the valve pole can not be driven until the resetting piston is driven by the compressed air from the ventilation branch .
|
Model |
4S110-M5 | 4S110-06 | 4S210-06 | 4S210-08 | 4S310-08 | 4S310-10 | 4S410-15 |
| Working Medium | Clean Air (40 Micrometer Filteration) | ||||||
| Ways | 2 Position 5 Port | ||||||
| Acting Type | Direct Acting | ||||||
| Joint Size |
Import=M5 Export=M5 Exhaust=M5 |
Import=1/8 Export=1/8 Exhaust=1/8 |
Import=1/4 Export=1/4 Exhaust=1/8 |
Import=1/4 Export=1/4 Exhaust=1/4 |
Import=3/8 Export=3/8 Exhaust=1/4 |
Import=1/2 Export=1/2 Exhaust=1/2 |
|
| Sectional Area | 5.5mm2(CV=0.31) | 12mm2(CV=0.67) | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) | 50mm2(CV=2.79) |
| Working Pressure | 0.15~0.9Mpa | ||||||
| Guarantee Pressure | 1.2Mpa | ||||||
| Working Temperature | -5~60°C | ||||||
| Voltage Range | -15%~10% | ||||||
| Heat Resistant Grade | B | ||||||
| Protective Class | IP65(DIN40050) | ||||||
| Coil Type | DIN Type,Flying Leads | ||||||
| Max Acting Frequency | 5 Times/s | 4 Times/s | 3 Times/s |
||||
The installation size is as same as 4V210-08
1pc in 1 color box.
100pcs in one carton
N.W.:0.25KGS/PC
All package will be inspected before shipping.
Protective packing material will be added in your package if we believe item can be damaged easily in transit.
Quickly respond, professional service, rich inventory, good price, strong packages, perfect after-sale.
Our company is specialized in manufactuing all kinds of solenoid valves, pneumatic cylinders,pneumatic fittings, air hoses, pneumatic silencers and FRLs. And we welcome the customized products, only provide the samples or drawing.
