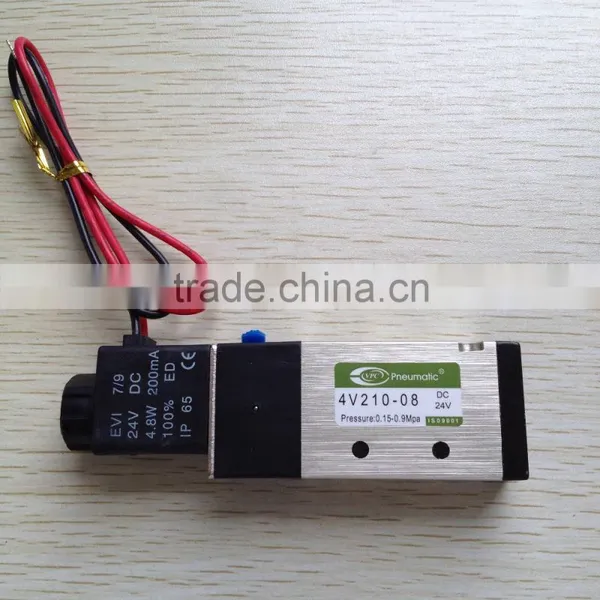

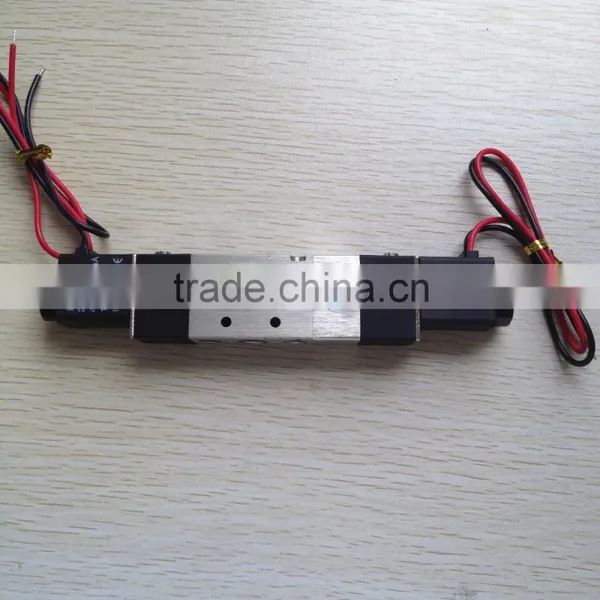

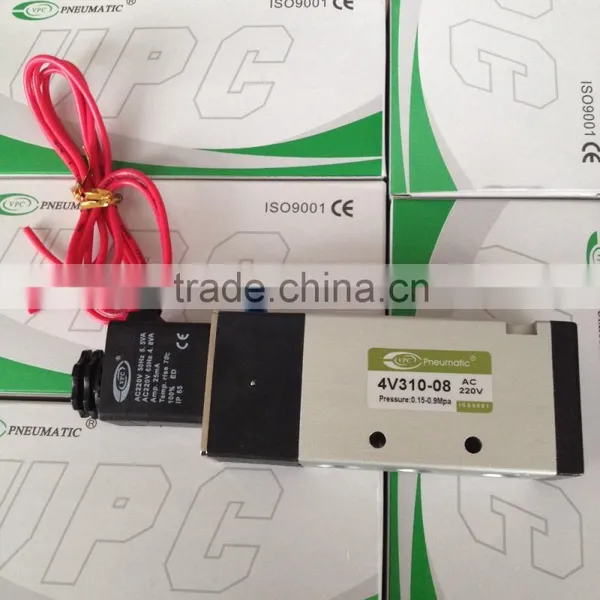

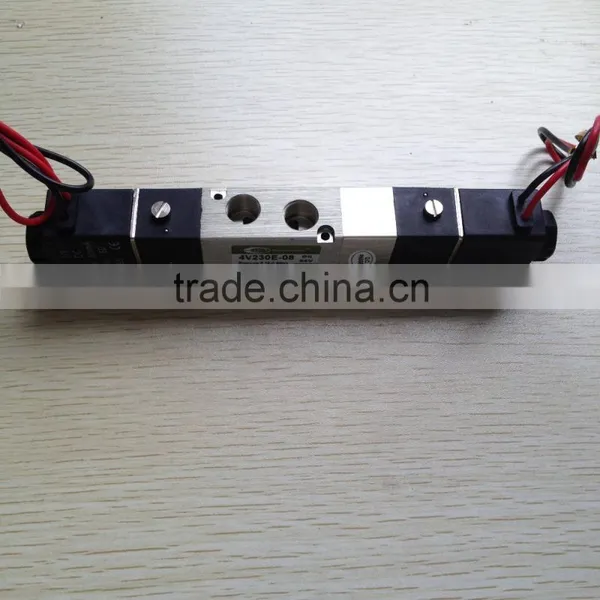

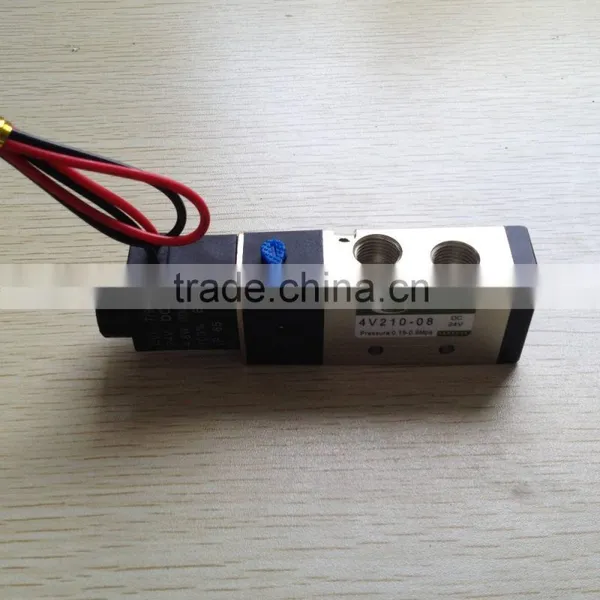

Lead Wiring Type Pneumatic Valve
- 50000 Piece / Pieces per Month
- ningbo/shanghai
- T/T Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Pilot | Pressure: | Medium Pressure |
Power: | Solenoid | Material: | Brass | Temperature of Media: | Medium Temperature |
Media: | Water | Port Size: | M5 M6 1/8" 3/16" 1/4" 5/16" 3/8" 1/2" 3/4" 1" 2" | Place of Origin: | Zhejiang, China |
Model Number: | 3V/4V Lead Wiring Type Pneumatic Valve | Brand Name: | VPC or OEM brand Lead Wiring Type Pneumatic Valve | Application: | General |
Product Description
Product Description:Lead Wiring Type Pneumatic Valves
Type: Internally Piloted Acting Type
Voltage: 110V AC,220V AC, 380V AC, 12V DC, 24V DC, 24V AC
Operating temperature range:-5~55℃
Working pressure range: 0.15~0.8MPa
Proof pressure: 1.05MPa
Voltage range: ±10%
Insulation and protection: Class F.IP65
Wiring method: Lead and DIN connector
Frequency: 5/S
Response time: 50ms
Model: 3V110-M5,3V110-06,3V210-06,3V210-08, 3V310-10,3V410-15,3V120-M5,3V120-06,3V220-06,3V220-08,3V320-08,3V320-10,3V420-15,4V110-M5,4V110-06,4V210-06, 4V210-08, 4V310-08, 4V310-10, 4V410-15, 4V120-M5, 4V120-06, 4V220-06, 4V220-08, 4V320-08,4V320-10, 4V420-15, 4V130C-M5,4V130C-06, 4V230C-06, 4V230C-08, 4V330C-08, 4V330C-10, 4V430C-15, 4V130P-M5, 4V130P-06,4V230P-06,4V230P-08, 4V330P-08, 4V330P-10, 4V430P-15,4V130E-M5, 4V130E-06,4V230E-06,4V230E-08, 4V330E-08, 4V330E-10, 4V430E-15,

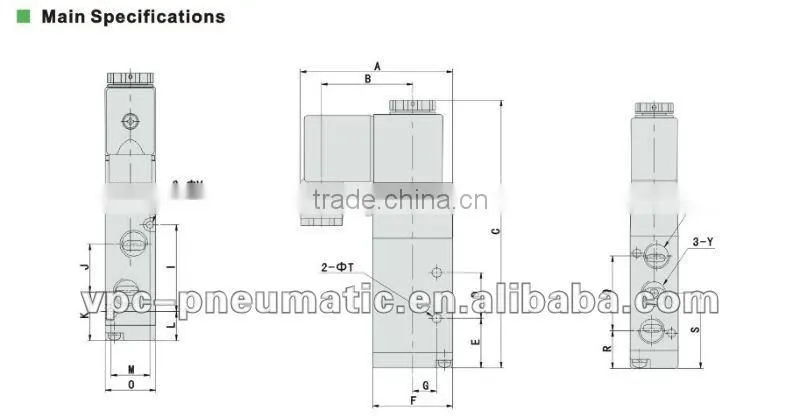

Specificaitons of 4v Series Solenoid Valve (2 Position 5 port single control)
Model | 4V110-M5 | 4V110-06 | 4V210-06 | 4V210-08 | 4V310-08 | 4V310-10 | 4V410-15 |
Working Medium | Clean Air (40 Micrometer Filteration) | ||||||
Ways | 2 Position 5 Port | ||||||
Acting Type | Direct Acting | ||||||
Joint Size | Import=M5 Export=M5 Exhaust=M5 | Import=1/8 Export=1/8 Exhaust=1/8 | Import=1/4 Export=1/4 Exhaust=1/8 | Import=1/4 Export=1/4 Exhaust=1/4 | Import=3/8 Export=3/8 Exhaust=1/4 | Import=1/2 Export=1/2 Exhaust=1/2 | |
Sectional Area | 5.5mm2(CV=0.31) | 12mm2(CV=0.67) | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) | 50mm2(CV=2.79) |
Working Pressure | 0.15~0.9Mpa | ||||||
Guarantee Pressure | 1.2Mpa | ||||||
Working Temperature | -5~60°C | ||||||
Voltage Range | -15%~10% | ||||||
Heat Resistant Grade | B | ||||||
Protective Class | IP65(DIN40050) | ||||||
Coil Type | DIN Type,Flying Leads | ||||||
Max Acting Frequency | 5 Times/s | 4 Times/s | 3 Times/s |
