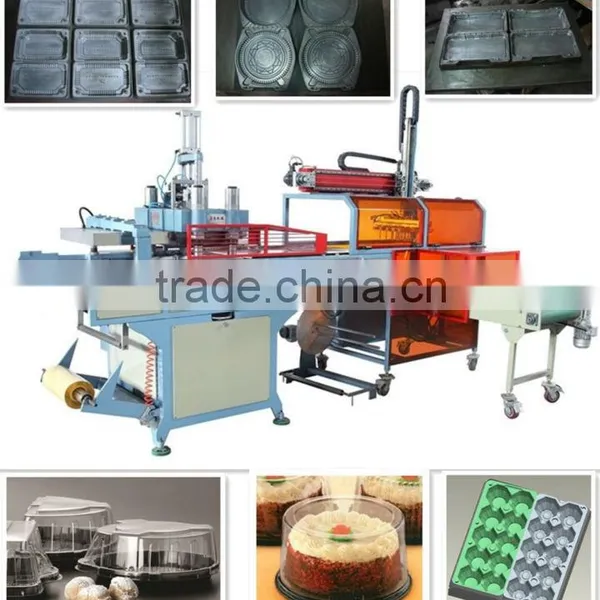

SP-510/580 Automatic BOPS Thermoforming Machine With Stacking, air pressure thermoforming machine,
- 10 Set / Sets per Month
- NINGBO PORT
- T/T
- Food Box Thermoforming Machine Disposable Plastic Cup Making Machine
- Plastic Cup Thermoforming Making Machine Disposable Plastic Cups Plate Machine
- Plastic Cup Machine Plastic Thermoforming Manufacturing Machine Full Automatic Plastic Cup Thermoforming Machine
- Plastic Cup Thermoforming Machine Full automatic Plastic Cup Making Machine
- High Efficiency PP Plastic Cup Making Machine PET Food Box Thermoforming Machine
- High Speed Manufacture Plastic Coffee Cup Cover Thermoforming Machine
Product Details
Condition: | New | Product Type: | Fast Food Box | Place of Origin: | Zhejiang, China |
Brand Name: | SP | Model Number: | SP-510/580 | Voltage: | 380V/50HZ |
Power(W): | 25KW | Dimension(L*W*H): | 2750*1410*2350 | Weight: | 2500kg |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
I. Features:
1. SP-510/580 Automatic BOPS Thermoforming Machine With Stacking used for forming BOPS/ HIPS/ PS/PVC/PET plastic sheet into various of boxes, dishes, trays, bowls and lids.
2.Combination of mechanical, electrical and pneumatic components, and it combines the material sending, heating, forming and cutting onto one process. The final products already cut one by one.
3. The whole system is controlled a micro PLC, which can be operated in man-interface. And has capability reliable, quality jarless, fault few.
4. Has three operation models: manual, semi-automatic and automatic
5. Servo motor drives the sheet transport system
6.Has quickly production capacity, highly utilization ratios of plastic sheet,Low air consumption and maintenance,beautiful final ready products,so it is a new generation ideal package equipment
7. Telecommuting and memory reserve functions
II. Parameter:
1,Forming Area: 510×580mm | 2,Forming Depth: 100mm |
3,Sheet Thickness Range: 0.15-1mm | 4,Sheet Roller Diameter: 710mm |
5,Cutting Length: 6350mm | 6,Air Pressure: 0.7Mpa |
7,Water Consumption: 10 Liters/min(15-20°C) | 8,Air Consumption: 2200 Liters/min |
9,Speed: 600-1200 strokes/h | 10,Voltage: 120V,60HZ |
11,Preheating Power: 4kw | 12,Mould Plate Heating Power: 6kw |
13,Heating Plate Power: 15kw | 14,Max Sheet Width: 650mm |
15,Weight: 2500kg | |
16,Dimension(L×W×H): 2750×1410×2350 mm Over Packing Size (L x W x H): 2900 x 1600 x 2300mm (The cylinder will be disassembled from the whole machine when packing). |

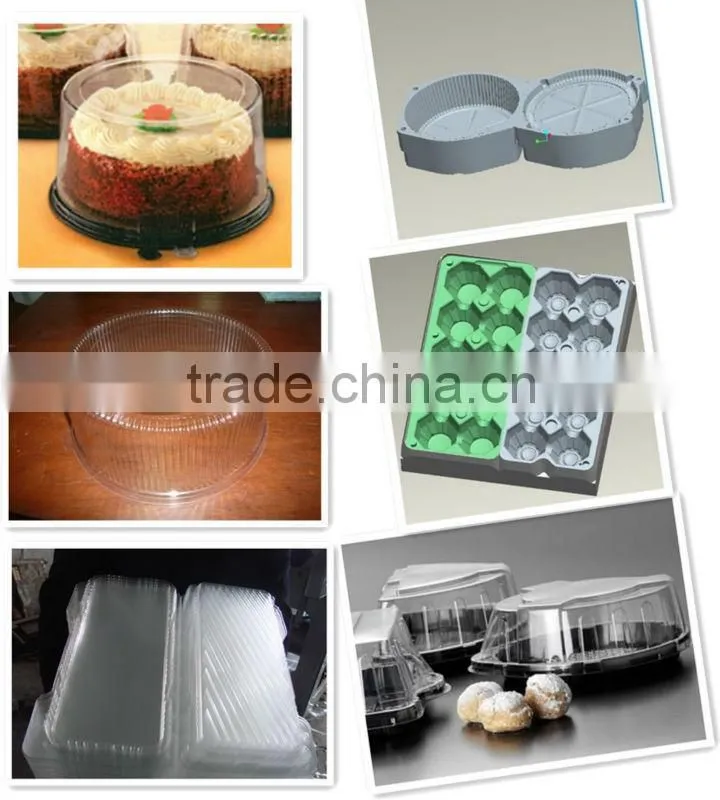

III. Finished Product Samples:

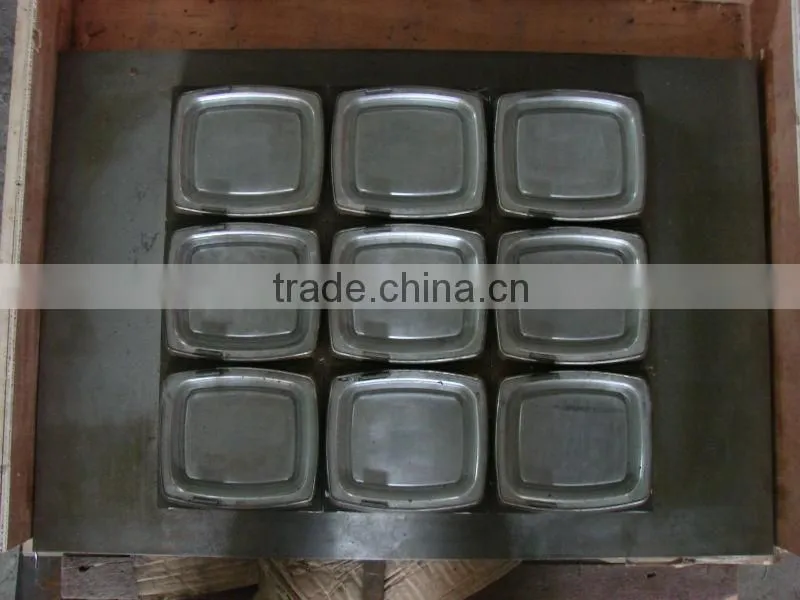

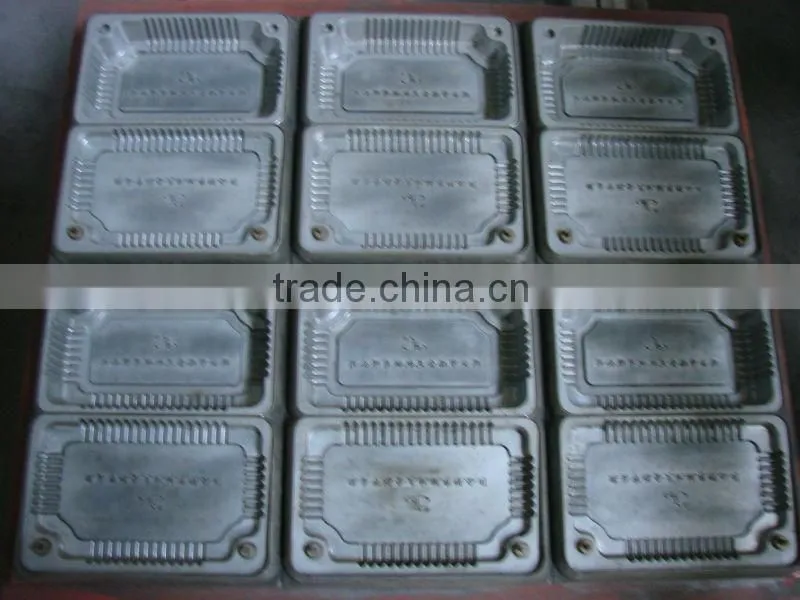

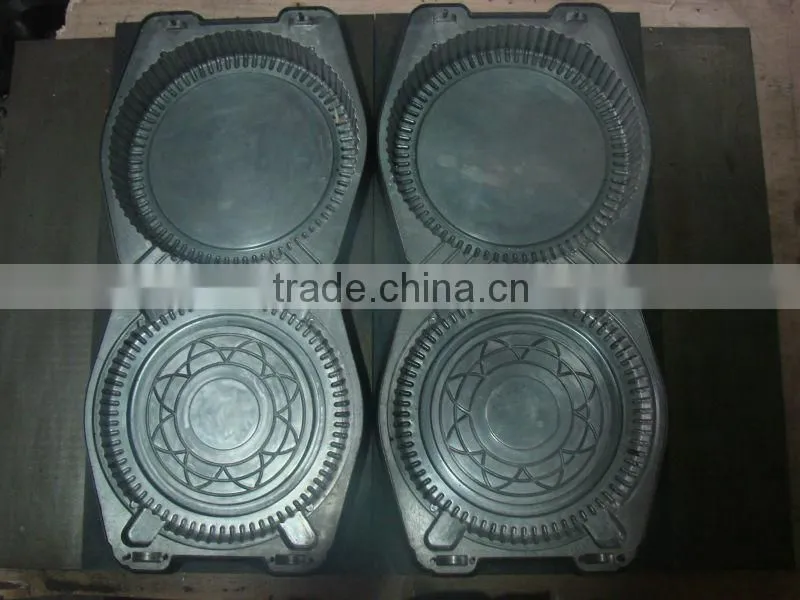

V. Mould Samples:
VI. Packing: Standard Export Wooden case
VII. After Service
1. Warranty: We warranty machine for one year and supply some frangible spare parts for free during this time.
2. After service: If necessary, we will send our technician to the buyer’s side for machine installation and test running machine and basic training. All expenses abroad including two-way air tickets, local food, hotel, traffic and translation should be paid by customer. Meanwhile, the buyer should pay USD80/Day to our technician for wage.
Any more information, please don't hesitate to contact with MS Maggie Lin
Skype: maggielam718
Trade Manager: sinoplast2013
Mobile: +86-13958816227
