Help CenterSP-360 PP Lids/Plate Thermoforming Machine, PP Lids Making Machine, PP Lids Forming Machine, Thermoforming Machine
Related Products
-
SP 3021B 3in1 Thermoforming Machine, 3 Stations Forming MachineUS$ 98,000 - 138,000MOQ: 1 Set -
AUTOMATIC PLASTIC CUP TILT-MOLD THERMOFORMING MACHINE, PLASTIC CUP MAKING MACHINE, CUP MACHINEUS$ 98,000 - 108,000MOQ: 1 Set
-
Automatic Lid Thermoforming MachineUS$ 20,000 - 25,000MOQ: 1 Set
-
Automatic PP Cup Lid Making Machine, Thermoforming Machine, Plastic Lids MachineUS$ 32,000 - 45,000MOQ: 1 Set
-
SP-510/580 Automatic Air-pressure BOPS Thermoforming MachineUS$ 35,000 - 37,000MOQ: 1 Set
Design Feature
1. Full automatically produce plastic disposable lids of round ,square and rectangular or other shapes with automatic stacker .
2. Cam system faster running.
3. Forming station driven by frequency inverter
4. Touch screen and programmable PLC control
8. Precise index accuracy utilizing servo system
9. Retractable, independently operated upper and lower ovens
9. PID temperature control ensures precise temperature accuracy and easy operation
10. Accessing to all digitalized functions by pressing touch screen
11. Cam-controlled drive technology ensures 100% precise repetition of each cycle
13. Highly stressed parts are of very robust design ,with lower table and frames made of casting.
14. Little maintenance effort required and long intervals between maintenance
15. Most of Components are from multi-national suppliers assures a reliability and worldwide compatibility
16. This machine special for making PP/PS/PET/PVC lids and plate, but without hole punching.
FInished Product Samples

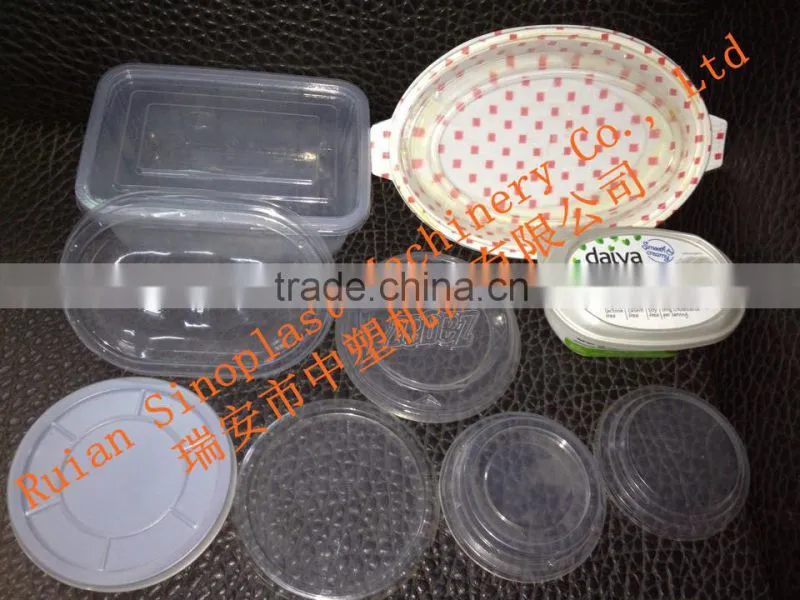

Plastic Lids

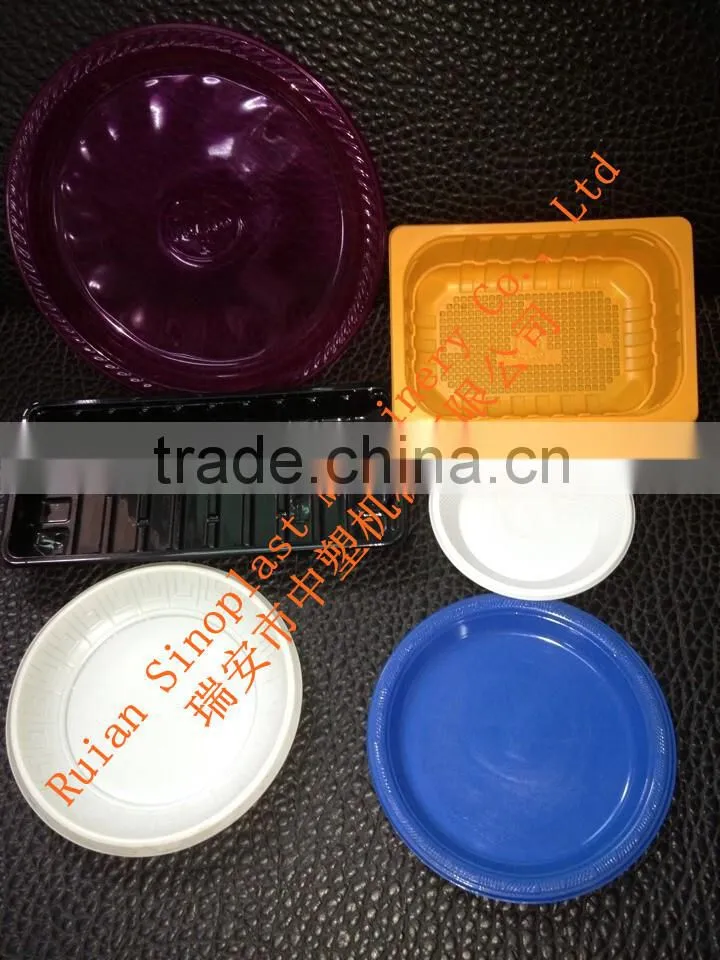

Plastic Plate
Main Technical Parameter
Forming Area |
360mm *160mm Max |
Depth of Draw |
30mm |
Suitable material |
PP PS PVC PET sheet |
Speed (Dry run) |
20-30 cycles/min |
Material Thickness Range |
0.3mm - 1.6mm |
Sheet Width |
280-410mm maximum |
Material Roll Diameter |
800mm Max. |
Power Supply |
3-N AC380V±15V ,50Hz |
Heat Power Consumption |
14.5 Kw/hr (Upper Oven) 11.6kw/hr (Lower Oven) |
Total Power |
31kw |
Air Pressure |
6bar |
Air Consumption |
1400 Litres/min |
Cooling Water Consumption |
6 Litres/min @ 15° - 20° C |
Machine Dimensions |
4600mmX2600mmX2100mm |
Machine Weight |
2600kg |

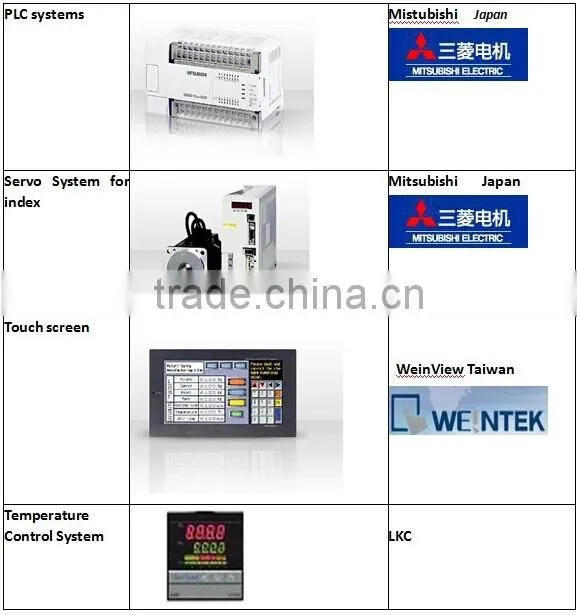

Our Supplier for Components
All information is subject to change

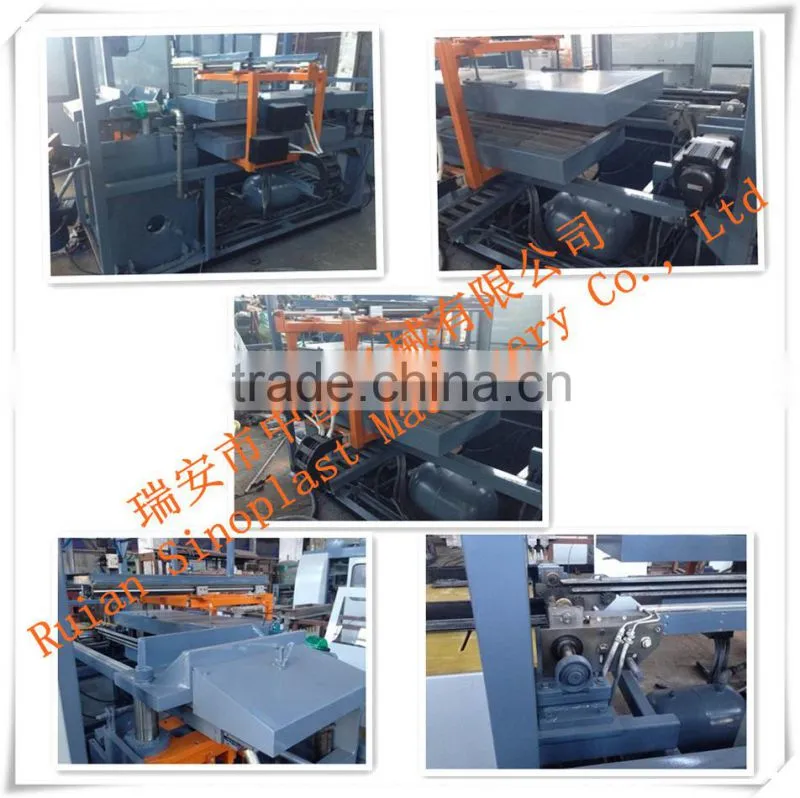

Machine Parts
Macine packed by Wooden case or Plastic film
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
Machine adjustment and installation
We can send technicians go to customers' country for mahchine adjustment and installation
Gaurantee time and after-sale
One year guarantee time, after one year , we have professional after-sales department providing best service if any problems.
More details about products, please contact with Ms. Maggie Lin
Skype: maggielam718
Trade Manager ID: sinoplast2013
Mobile/Whatsapp/Viber: 0086-13958816227
