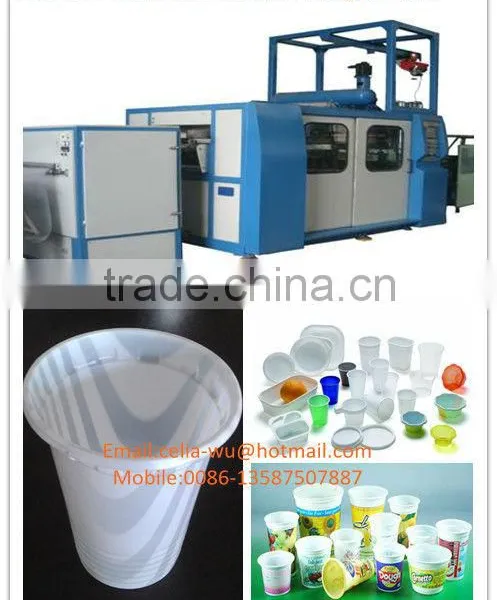

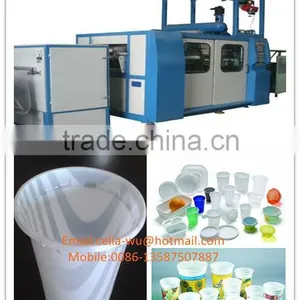

Help CenterSPC-700 Tilting Mold Thermoforming Machine, Cup Making Machine
Related Products
-
SPC-700 Tilting Mould Thermoforming MachineUS$ 1 - 9,999MOQ: 1 Set -
SPC-700 Tilted Mould Thermoforming Machine, Thermoforming Machine, Plastic Cup Making MachineUS$ 68,000 - 78,000MOQ: 1 Set
-
Glass Cup Making Machine, Cup MachineUS$ 22,000 - 28,000MOQ: 1 Set
-
Machine to Make Coffee Cups, Plastic Cup Making Machine, ThermoformerUS$ 21,000 - 38,000MOQ: 1 Set
-
Plastic Tea Cup Making MachineUS$ 25,000 - 35,000MOQ: 1 Set
I. Usage:
This tilt mold thermoforming machine could use PP/PS/PET/PVC/PLA, etc sheet to produce disposable plastic food containers, such as water drinking cups, yoghurt cups, ice-cream cups, jelly cups, coffee cups, milk cups, juice cups, plates, trays, boxes, dishes, covers, etc. with dfiferent moulds.
II. Main Features:
1- Produces Disposable cups, and containers etc completely automatically with forming, cutting, stacking and counting in one operation cycle .
2- Take advantage of Tilting Movement of the forming table, destacking from mould.
3- Servo Plug assist reduces minimizing energy use on press and saving time of adjustment.
4- Reliable Germany 4 Cam System, driven by Frequency inverter, saving energy.
5. Two Different speeds can be set and performed in the very same cycle for better quality of finished product.
6. Two Edge heating zones and oven can move forwards and backwards .
7. Touch screen and programmable PLC control.
8. Precise index accuracy utilizing Servo drive system, minimizing plastic scrap.
9. Retractable, independently operated upper and lower ovens.
10. Module temperature control ensures precise temperature accuracy and easy operation.
11. Accessing to all digitalized functions by pressing touch screen.
12. Highly automatic stacking and counting system.
13. Automatic central lubrication
14. Cam-controlled drive technology ensures 100% precise repetition of each cycle.
15. Highly stressed parts are of very robust design ,with lower table and frames made of casting.
16. Little maintenance effort required and long intervals between maintenances
17. Most of Components are from multi-national suppliers assures a reliability and worldwide compatibility
III. Main Technical Parameter:
Max. Forming Area |
300x680mm |
Max. Depth of Draw |
140 mm |
Suitable material |
PP PS PVC PET PVC sheet |
Max. Sheet Width |
370- 670 mm |
Material Thickness Range |
0.4-2.0mm |
Max. Material Roll Diameter |
1000mm |
Cycles per Minute(dry run) |
15-25strokes/min |
Power Supply |
3-N AC380V±15V |
Heating Power |
93KW |
Main Motor Power |
15KW |
Plug Motor Power |
7KW |
Index Motor Power |
3.5KW |
Air Pressure |
0.7Mpa |
Air Consumption |
2500 Liters/min |
Cooling Water Consumption |
13 Liters/min (15° - 20° C) |
Machine Dimensions |
3250mm*2000mm*2200mm |
2250mm*2260mm*1860mm |
|
Machine Weight |
5000kg |
According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.

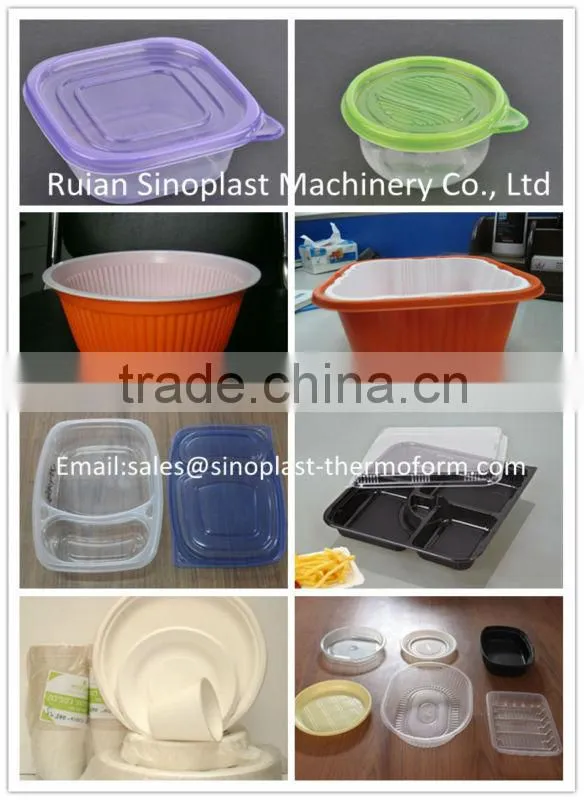

IV. Some Thermoforming Samples:
IV. Tilt Mold Photos:
IV. Auxiliary Machines For Cup Thermoforming Machine:
Please don't hesitate to contact with me if any more information from us:
Skype: maggielam718
Whatsapp/Viber/Mobile: +86-13958816227
