Home > Packaging & Printing > Packing Machinery > Packing Line > VFS7300 Automatic Vertical Packaging Machine for Granule,rice,seeds, Beans, Nuts, Coffee,detergent, Washing Powder

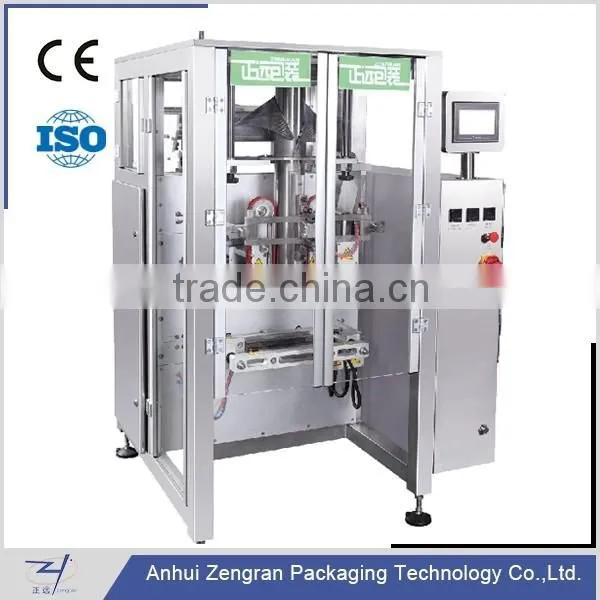

VFS7300 Automatic Vertical Packaging Machine for Granule,rice,seeds, Beans, Nuts, Coffee,detergent, Washing Powder

VFS7300 Automatic Vertical Packaging Machine for Granule,rice,seeds, Beans, Nuts, Coffee,detergent, Washing Powder thumbnail-1
VFS7300 Automatic Vertical Packaging Machine for Granule,rice,seeds, Beans, Nuts, Coffee,detergent, Washing Powder thumbnail-2
VFS7300 Automatic Vertical Packaging Machine for Granule,rice,seeds, Beans, Nuts, Coffee,detergent, Washing Powder photo-1
VFS7300 Automatic Vertical Packaging Machine for Granule,rice,seeds, Beans, Nuts, Coffee,detergent, Washing Powder photo-2
US$ 15,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Other, Medical, Other, Chemical, Commodity, Food, Machinery & Hardware, Medical, Other
Packaging Type:
Bags, Film, Foil, Pouch, Other
Contact Supplier Request Quote Chat Now
Anhui Zengran Packaging Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Chemical, Commodity, Food, Other, Medical, Other, Chemical, Commodity, Food, Machinery & Hardware, Medical, Other
Packaging Type Bags, Film, Foil, Pouch, Other
Packaging Material Wood
Automatic Grade Automatic
Driven Type Pneumatic
Voltage AC220V/50Hz, 1phase or Per customer specification
Power 3KW
Place of Origin Anhui, China
Brand Name zengran
Model Number VFS7300
Dimension(L*W*H) L1340*W1580*H1950mm
Weight 800KG
Certification CE, ISO9001
After-sales Service Provided Engineers available to service machinery overseas

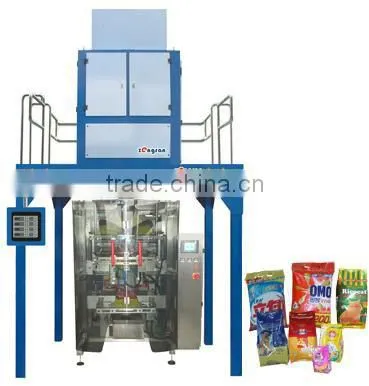

VFS7300 Automatic vertical packaging machine line for granule, rice, seeds, beans, detergent (washing powder)



Application:

The unit of packaging machine is ideally suited for automatic weighing, filling and packaging granules, dry pieces products: Such as rice, Dried Foods, Tea & Coffee, Pet Foods, Nuts & Pulses, Seeds and some heavy density powder like Detergent etc.

VFS7300 Automatic vertical packaging machine for granule,rice,seeds, beans, nuts, coffee,detergent, washing powderVFS7300 Automatic vertical packaging machine for granule,rice,seeds, beans, nuts, coffee,detergent, washing powder



Advantage:

  • Machine fully controlled by Siemens or Omron PLC & Touch-Screen
  • Manual  or automatic operation( Four weighting hopper working)
  • Minute capacity can automaticlly display on Touch screen
  • Precision load cell weighing mechanism with mechanical overload protection
  • Film transport system and horizontal Jaw motion both drived by Panasonic
  • Sturdy weigh bucket with servo motor operated door with sensor control
  • Safe quick change of tube and collar by just pull out the braket
  • Outlet chute with optional extension to suit application
  • Optoelectronics detect film position on collar to correct film excursion
  • Product hopper with adjustable height
  • Electrical photo sensor inducting color code to contol bag length
  • Encapsulated vibratory feeders
  • Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
  • Materail main feedng and fine feeding together working keep a good accuracy
  • independent temperature adjustment& code printing
  • Instructional machine manual including electrical wiring drawing
  • Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.
  • Reliable, accurate and easy to clean
  • The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipment.
  • Can euqiped with hole punching system to puch hole on the bag for handling .





Technical Specification:

Bag type

Pillow type bag;Gusseted bag (Option)

Maximum Capacity

up to 5 kilograms

Minimum Capacity

depend on product characteristics but nominally 25 grams

Weighing accuracy

±0.2% dependant on products characteristics

Speed

14 to 50 bags/min

Bag Length

50 to 460mm (1.9to 18in)

Bag Width

80 to 350mm (3.1 to 13.8in)

Reel Film Width

≤730mm (28.7in)

Film thickness

0.04-0.12mm (40-120mic.)

Reel Outer Dia.

500mm (19.7in)

Reel Inner Dia.

75mm (2.9in)

Voltage

AC220V/50Hz, 1phase or Per customer specification



Factory Show:

VFS7300 Automatic vertical packaging machine for granule,rice,seeds, beans, nuts, coffee,detergent, washing powder

Packing pics:

VFS7300 Automatic vertical packaging machine for granule,rice,seeds, beans, nuts, coffee,detergent, washing powder



Contact  information:

VFS7300 Automatic vertical packaging machine for granule,rice,seeds, beans, nuts, coffee,detergent, washing powder
