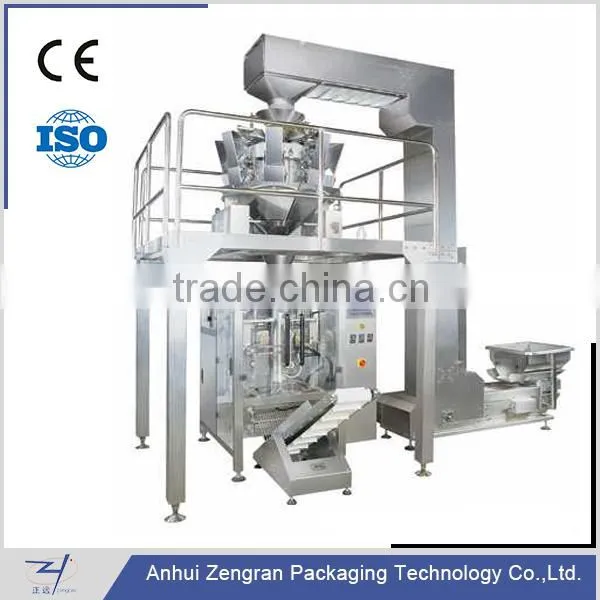

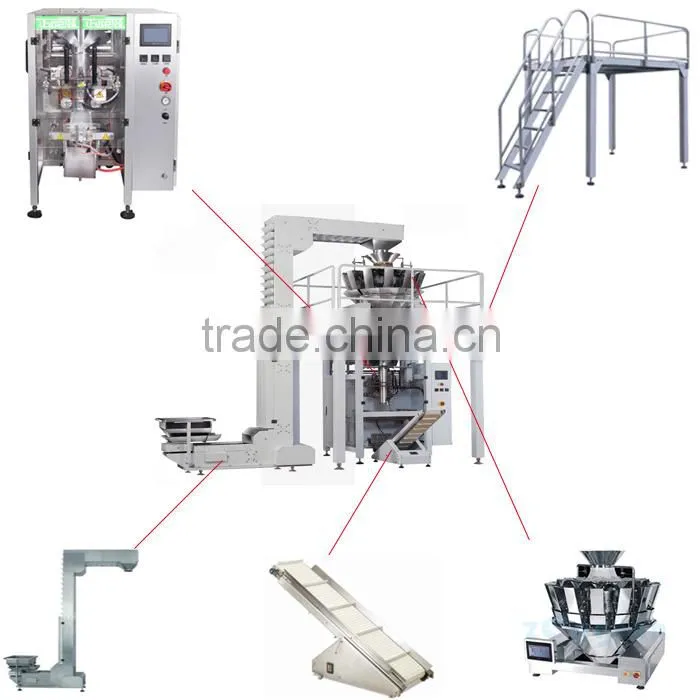

VFS5000D Automatic Popcorn Vertical Packaging Machine Unit is specially designed for packing Popcorn. This machine unit is combined of VFS5000D Main Machine, The Z Type Elevator, The Working Platform and Taking-off conveyor. The machine unit adopts the newest technology to achieve perfect packaging quality and high speed. It has been applied into production to fit with the Popcorn production Line by many factories overseas. Meanwhile, the machine unit has win great reputation from the buyers.
Machine Advantages:
1, Machine is fully controlled by Siemens or Omron PLC & Touch-Screen
2,Minute capacity could automatically display on Touch-Screen
3,Film transport system and horizontal Jaw motion are both drive by Panasonic
4,Safe quick change of tube and collar by just pull out the brake
5,Optoelectronics detect film position on collar to correct film excursion
6,Electrical photo sensor inducting color code to control bag length
7,Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
8,Independent temperature adjustment& code printing system
9,Various types of heating sealable laminate films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, ALUMMINUM FOIL based can be run on the machine
10,The packaging machine also can be used for Polyethylene Film sealing by changing correspond equipment
11, It can also be equipped with hole-punching system to pouch hole on the bag for handling.
Machine Technical Specification:
Bag Type: |
Pillow Type Bag; Gusseted Bag |
Bag Length: |
20-280mm (0.8-11in) |
Bag Width: |
40-190mm (1.6-7.5in) |
Reel Film Width: |
≤400mm (15.7in) |
Film Thickness: |
0.04-0.12mm (40-120mic.) |
Reel Outer Dia.: |
400mm (15.7in) |
Reel Inner Dia.: |
75mm (2.9in) |
Speed: |
40 to 80 bags/min |
Voltage: |
AC220V/50Hz, 1phase or per customer needs |
Power Consumption: |
5KW |
Compressed Air Re.: |
0.6 Mpa 0.36 M3/min |
Machine Size: |
L1400 x W1050 x H1500mm;(in): L55.1 x W41.3 x H59.1 |
Machine Weight: |
600kg |
We provide best packaging suitable for sea shipping:
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
We Promise Customer Perfect Guarantee and After-Service:
As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts.The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Welcom to visit our fatory !
