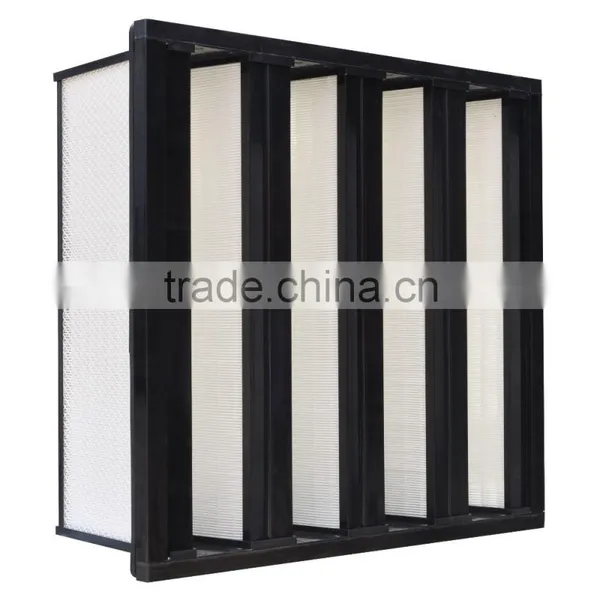

Help CenterF6-F9 Compact Filter Plastci Frame V Bank Hepa Secondary Filter
Related Products
-
Coralfly Economical Large Filtration Area V Bank Hepa Secondary FilterUS$ 15 - 100MOQ: 10 Pieces -
Good Quality Air Conditioning High Capacity V Bank Hepa Secondary FilterUS$ 15 - 100MOQ: 10 Pieces
-
Plastic Frame High Rated Air Flow V Bank Hepa Secondary FilterUS$ 15 - 100MOQ: 10 Pieces
-
V-bank F9 Medium Air Filter With Plastic FrameUS$ 30 - 30MOQ: 10 Pieces
-
F9 Medium Bag Air FilterUS$ 14.5 - 15MOQ: 10 Pieces
Product Features:
1.The V bank provides high efficiency filtration and big air flow.
2. With big filtration area, and low resistance.
3. With V type filter and long lifespan.
4.With ABS plastic frame or galvanized steel frame.
Size
Customized design is available.
Material and operation condition
Media |
glass fiber |
Sealant |
Pu two-component polyurethane rubber |
Frame |
Plastic/Galvanized/Stainless stee |
Separator |
EVA hot melt bead |
Gasket |
EVA |
Efficiency |
F6~H14 |
Max.Temperature |
70℃ |
Max.Humidity |
100% |
V bank filter efficiency range
EN779 & EN1822 |
Efficiency |
| F6 | 65%@0.4μm |
| F7 | 85% @0.4μm |
| F8 | 90%@0.4μm |
| F9 | 95%@0.4μm |
| H10 | 85%@0.3μm |
| H11 | 95%@0.3μm |
H12 |
99.5%@0.3μm |
H13 |
99.99%@0.3μm |
H14 |
99.995%@0.3μm |
Standard sizes
Model |
Width (mm) |
Height (mm) |
Depth (mm) |
Pockets |
Air flow(m³/h) |
Initial Resistance (≤Pa) |
Final Resistance (Pa) |
Media area |
Dust Holding(g) |
Efficiency |
VB-C-002 |
592 |
592 |
292 |
4 |
3700 |
120 |
300-400 |
21.6 |
1950 |
F7 |
VB-C-005 |
592 |
592 |
292 |
4 |
3500 |
120 |
300-400 |
21.6 |
1900 |
F8 |
VB-C-008 |
592 |
592 |
292 |
4 |
3600 |
120 |
400-500 |
23.8 |
2090 |
F9 |
Product pictures
Inside with plastic and carton to protect the HEPA filter; outside is in plywood.
1. How long can this HEPA filter to be used?
It's depending on the working environment. If the environment is not very dirty,usually it can be used for over 1 year.
2.Does your factory has any certifications?
Yes, we have past the ISO9001 & CE certifications. Meantime, all the HEPA filters must be test one by one before shpiment.
3.Does your factory manufacture the nonstandard size?
Yes, we can according your need to manufacture the sizes.
4.How can I contact the person to discuss the details?
Please send an inquiry for us, we will arrange the professional salesman to follow your need.
5. If I send an inquiry, how long does the person to reply?
If it's the working days, usually we will reply you wihin in 24 hours. If it's on the weekend or on the holiday, usually it will need 2~3 days.
6.For more questions, please contact us directly.
