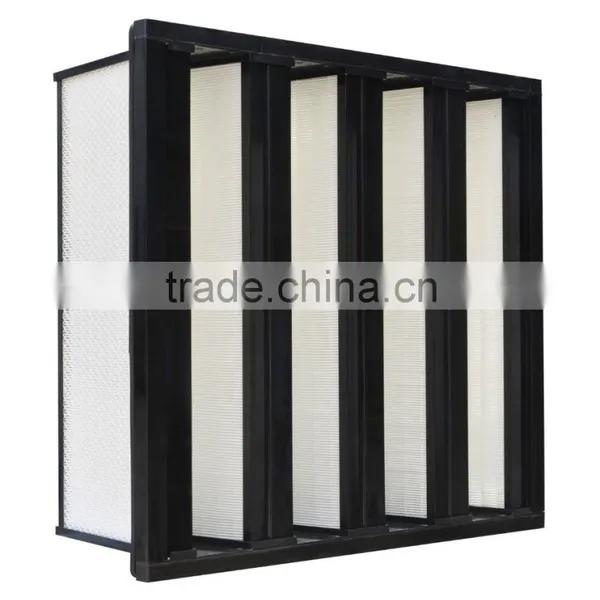

V-bank F9 Medium Air Filter With Plastic Frame

V-bank F9 Medium Air Filter With Plastic Frame thumbnail-1
V-bank F9 Medium Air Filter With Plastic Frame thumbnail-2
V-bank F9 Medium Air Filter With Plastic Frame thumbnail-3
V-bank F9 Medium Air Filter With Plastic Frame thumbnail-4

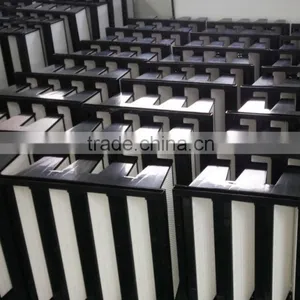

V-bank F9 Medium Air Filter With Plastic Frame thumbnail-5
V-bank F9 Medium Air Filter With Plastic Frame thumbnail-6
V-bank F9 Medium Air Filter With Plastic Frame photo-1

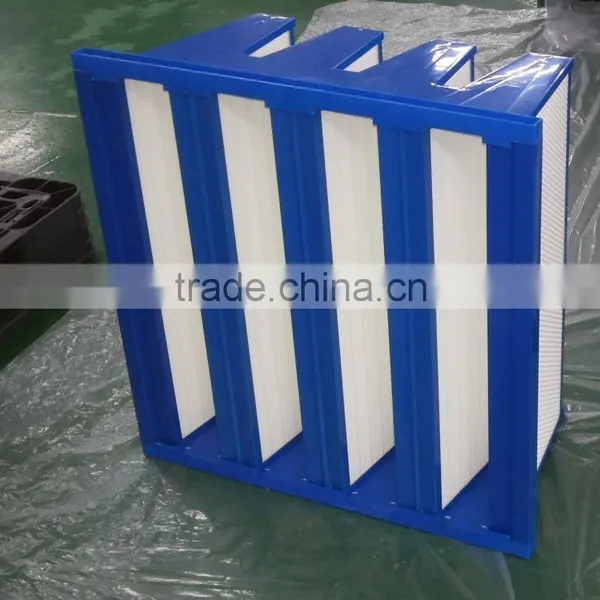

V-bank F9 Medium Air Filter With Plastic Frame photo-2

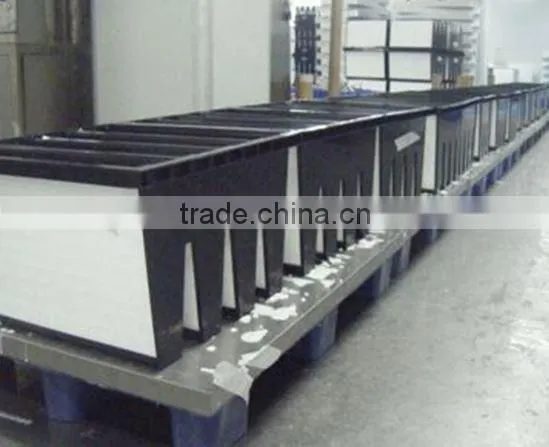

V-bank F9 Medium Air Filter With Plastic Frame photo-3

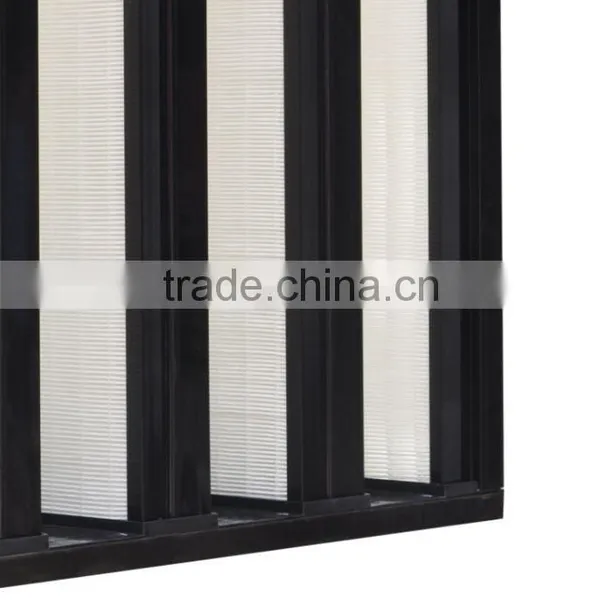

V-bank F9 Medium Air Filter With Plastic Frame photo-4

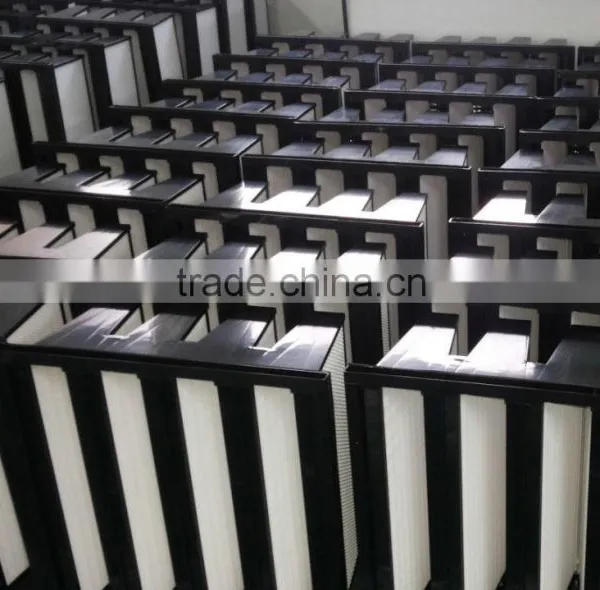

V-bank F9 Medium Air Filter With Plastic Frame photo-5

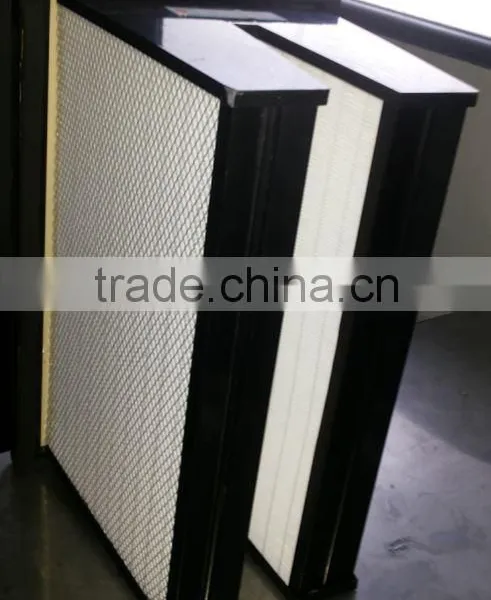

V-bank F9 Medium Air Filter With Plastic Frame photo-6
US$ 30 - 30 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
99.9%, 45%@0.5μm
Construction:
Other, Box Filter, Box Filter
Contact Supplier Request Quote Chat Now
Kunshan Crac Clean Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Efficiency 99.9%, 45%@0.5μm
Construction Other, Box Filter, Box Filter
Filtration Grade Medium Filter
Medium Material Fiberglass
Porosity 0.3u, 0.5μm
Place of Origin Jiangsu, China
Brand Name CRAC
Model Number CRAC-595-MF001
Dimension(L*W*H) Customer Requirs)
Weight 8.5kg/pcs
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

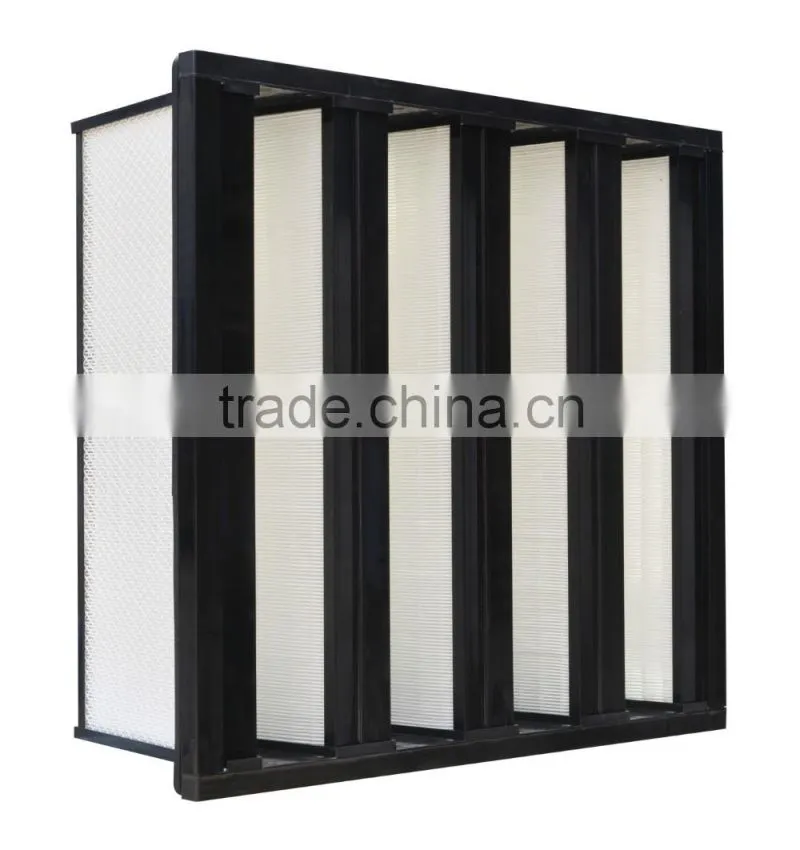

 V-bank F9 Medium Air Filter with plastic frame



CRAC  Mini-Pleated V-type Medium Air Filter Item:CRAC-595-MF001
NO.1 V-type medium air filter technology parameters

Model

Width

(mm)

Height

(mm)

Depth

(mm)

Pockets

Air flow(m³/h)

Initial Resistance

(≤Pa)

Final Resistance

(Pa)

Media area (m²)

Dust Holding(g)

Efficiency

CRAC-595-MF001

595

595

295

3

2800

120

300-400

16.2

1460

F7

CRAC-595-MF002

595

595

295

4

3700

120

300-400

21.6

1950

F7

CRAC-610-MF003

610

610

295

5

4700

120

300-400

27.7

2490

F7

CRAC-595-MF004

595

595

295

3

2600

120

300-400

16.2

1430

F8



595

595

295

4

3500

120

300-400

21.6

1900

F8

CRAC-595-MF006

610

610

295

5

4500

120

300-400

27.7

2440

F8
CRAC-595-MF007

595

595

295

3

2900

120

400-500

17.8

1570

F9
CRAC-595-MF008

595

595

295

4

3600

120

400-500

23.8

2090

F9
CRAC-595-MF009

610

610

295

5

4900

120

400-500

30.4

2680



NO.2 V-type Filter Media and Operation condition

Media

Domestic/import High-humidity resistance Glass fiber

Sealant

Polyurethane

Frame

Galvanized frame/Aluminum/Plastic

Separator

EVA hot melt bead

Gasket

EVA. Neoprene

Efficiency

65%-95% @0.5 μm

Max. Temperature

70°C

Max. Humidity

80%-100%



NO.3 Air Flow And Resistance
V-bank F9 Medium Air Filter with plastic frame

Packaging & Shipping





Packaging Details: V-type medium air Filter with plywood or carton packing
Delivery Detail:

7 working days after receiving the payment





V-bank F9 Medium Air Filter with plastic frame


Our Services



1. Imported material to make sure super quality

2. SGS ISO certified, strickly control each process of production.

3. All filters are made and assembled in 10,0000 clean rooms

4. Much more experienced in cooperating with big customers

5. More than 5 production lines, keep fast and short delivery

6. Open to do sourcing for clients in China about any products.

7. Regular callback with our clients for better cooperation relationship and friendship



V-bank F9 Medium Air Filter with plastic frame
V-bank F9 Medium Air Filter with plastic frameV-bank F9 Medium Air Filter with plastic frame

Company Information

 100000 Clean room work shop for HEPA Air Filter

V-bank F9 Medium Air Filter with plastic frameV-bank F9 Medium Air Filter with plastic frameV-bank F9 Medium Air Filter with plastic frameV-bank F9 Medium Air Filter with plastic frame
