Home > Products > HEPA Air Filter > HEPA Box filters Separator HEPA filter

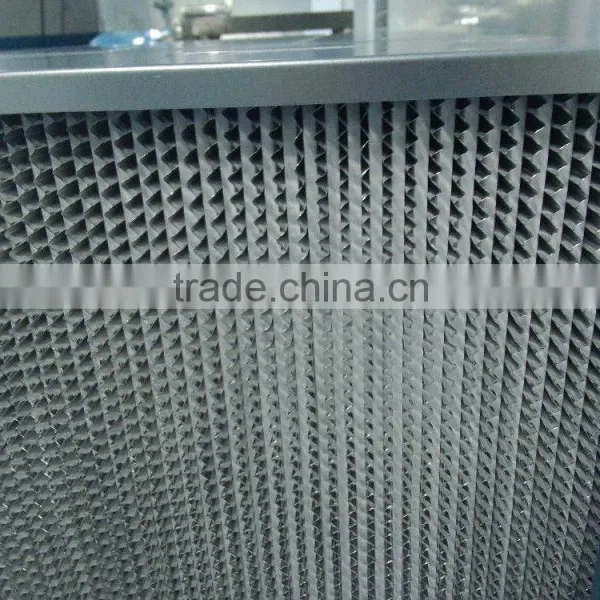

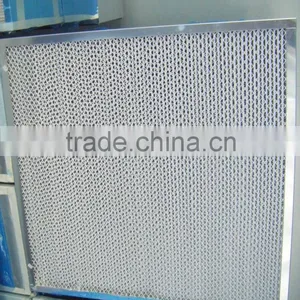

HEPA Box filters Separator HEPA filter
- Shanghai China
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Efficiency | 99.99% | |
| Construction | Box Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Fiberglass | Porosity | 0.3micron | |
| Place of Origin | Jiangsu, China | Brand Name | CRAC | |
| Model Number | Separator HEPA filter | Dimension(L*W*H) | Customer Demand | |
| Weight | 3KG | Certification | ISO9001 | |
| Warranty | depending on the environment | After-sales Service Provided | No overseas service provided |
Product Description
Description:
Separator HEPA filters can be manufactured with stainless steel, galvanized steel, aluminum, or wooden frame with aluminum foil pleated back. Polyurethane sealant could be used in filter to prevent any possible leakage.
Advantages
This Separator HEPA filter is designed for Compact structure, with low resistance and large dust amount.
Application:
The HEPA filter is widely used for Purifying air condition system, local punification equipment, in hospital, aerospace, pharmaceutical and food processing industries, etc.
Material and operation condition
HEPA media | glass fiber |
Sealant | Pu Polyurethane |
Frame | Aluminum/Galvanized/Stainless stee/wood frame |
Separator | Aluminum or paper |
Gasket | EVA |
Efficiency | 99.99%~99.995%@0.3μm |
Max.Temperature | 80℃ |
Max.Humidity | 80% |
Optional aluminum thickness | 120~292mm |
Size
Customized size is available
Technology parameters
Model | Width (mm) | Height (mm) | Depth (mm) | Air flow (m³/h) | Initial Resistance (≤pa) | Fianl Resistance (pa) | Medial Area ( square meter ) | Dust Holding (g) | Efficiency
|
CRAC-SH-001 | 484 | 484 | 120 | 390 | 200 | 400-600 | 4.4 | 230 | H13 |
CRAC-SH-002 | 610 | 610 | 120 | 620 | 200 | 400-600 | 7.1 | 370 | H13 |
CRAC-SH-003 | 915 | 610 | 120 | 930 | 200 | 400-600 | 10.6 | 560 | H13 |
CRAC-SH-004 | 1220 | 610 | 120 | 1500 | 200 | 400-600 | 14.1 | 740 | H13 |
CRAC-SH-005 | 484 | 484 | 150 | 530 | 200 | 400-600 | 6.0 | 320 | H13 |
CRAC-SH-006 | 610 | 610 | 150 | 1000 | 200 | 400-600 | 9.7 | 510 | H13 |
CRAC-SH-007 | 915 | 610 | 150 | 1500 | 200 | 400-600 | 14.5 | 770 | H13 |
CRAC-SH-008 | 1220 | 610 | 150 | 2000 | 200 | 400-600 | 19.3 | 1020 | H13 |
CRAC-SH-009 | 484 | 484 | 220 | 1000 | 200 | 400-600 | 9.8 | 600 | H13 |
CRAC-SH-010 | 610 | 610 | 220 | 1600 | 200 | 400-600 | 15.8 | 920 | H13 |
CRAC-SH-011 | 915 | 610 | 220 | 2300 | 200 | 400-600 | 23.7 | 1340 | H13 |
CRAC-SH-012 | 1220 | 610 | 220 | 3000 | 200 | 400-600 | 31.6 | 1750 | H13 |
HEPA filter efficiency range
EN1822 | Efficiency |
| H10 | 85%@0.3μm |
| H11 | 95%@0.3μm |
H12 | 99.5%@0.3μm |
H13 | 99.99%@0.3μm |
H14 | 99.995%@0.3μm |
1. How long can this HEPA filter to be used?
It's depending on the working environment. If the environment is not very dirty,usually it can be used for over 1 year.
2.Does your factory has any certifications?

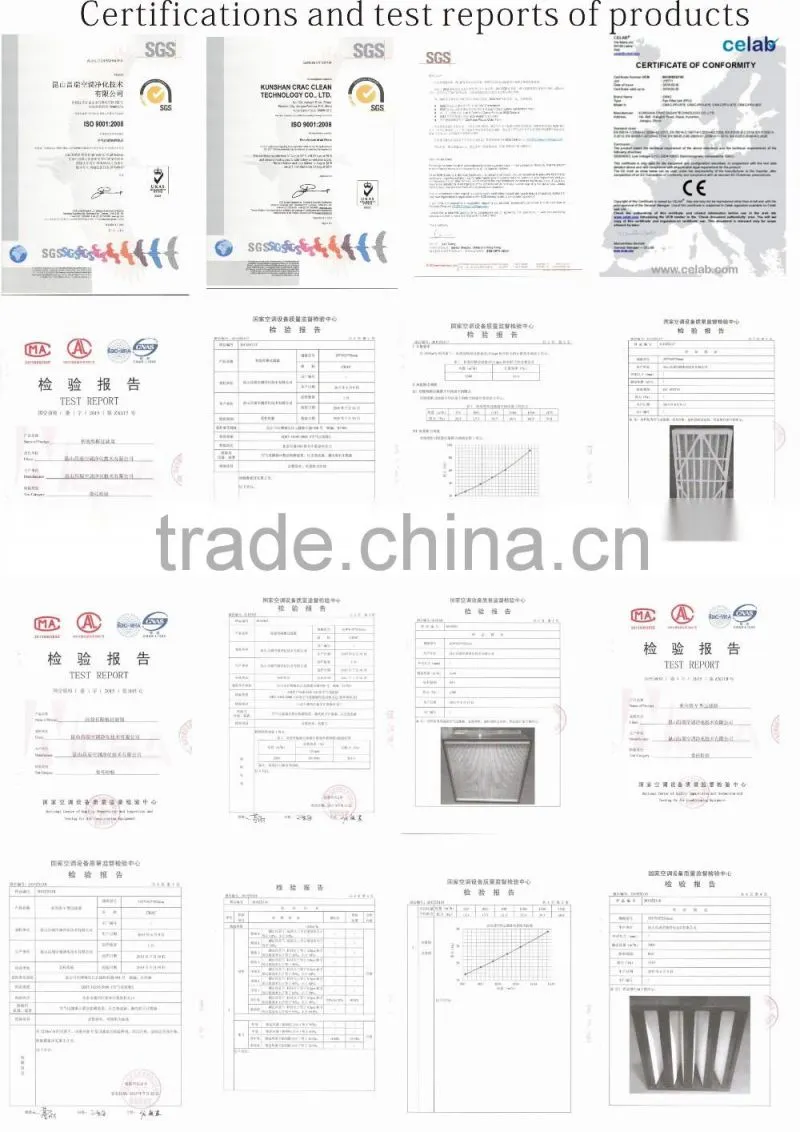

Yes, we have past the ISO9001 & CE certifications. Meantime, all the HEPA filters must be test one by one before shpiment.
3.Does your factory manufacture the nonstandard size?
Yes, we can according your need to manufacture the sizes.
4.How can I contact the person to discuss the details?
Please send an inquiry for us, we will arrange the professional salesman to follow your need.
5. If I send an inquiry, how long does the person to reply?
If it's the working days, usually we will reply you wihin in 24 hours. If it's on the weekend or on the holiday, usually it will need 2~3 days.
6.For more questions, please contact us directly.
