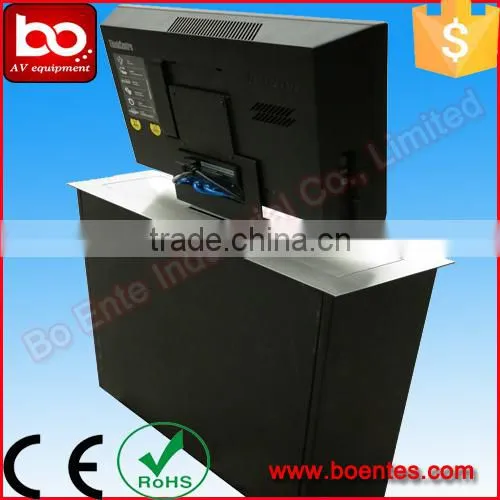

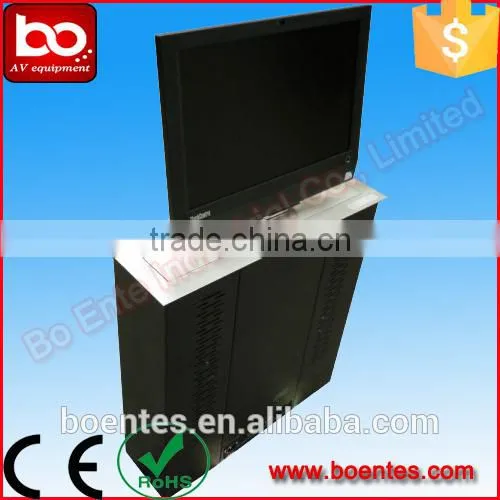

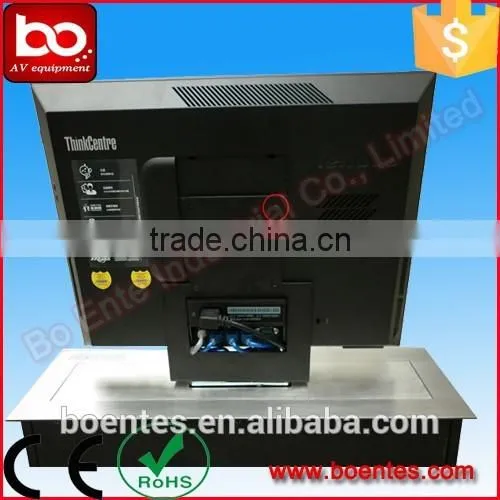

21~23 Inch LCD Monitor Motorized Lift for Hp All In One PC Monitor BLL-23
Introduction:
LCD Monitor Lift is advance hiding equipment designed for audio video system in office furniture. The LCD screen of Motorized monitor lift would be rising down into the desk and hidden under the office table when unused; Screen inside the Computer Screen Lift would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.
Feature:
1, The panel of LCD lift is aluminum alloy, with aluminum wire drawing process on surface.
2, The Monitor Lift adopts synchronous orbit lifting principle.
3, Desktop LCD automatic lift up device works smoothly and quietly. Low noise which less than 30db.
4, LCD Screen Lift provides protecting function of LCD monitors by cutting the electricity off automatically.
5, LCD monitor Lift would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.
5, Tabletop Monitor Lift is controlled by two big AC motors. One controls opening and closing the panel of LCD monitor Lift; one controls lifting the monitor up and down and adjust the angles of the monitor.
6, Control system: Touch Switch on LCD electric Lift panel, RF remote control, RS232 AND rs 485 central control.
Characteristic
1, high quality aluminum alloy finishing with motors
2, A=A strong carton with foam cushion and waterproof film
3, white/black/gold color is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, Customized made is available
Application:
LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
Product Parameter
| Item Series | LCD Monitor Lift for All In One PC |
| Item Model | BLL-23 |
| Style | LCD lift for All In One PC |
| Products consitute | LCD monitor lift+Remote control |
| Material | Aluminum alloy draw bench panel |
| Panel size | 625*190*5mm |
| Box size | 608*175*625mm |
| Panel thickness | 5mm |
| Lift mount size | 550*110mm |
| Require Size for All In One PC | Within 545*400*105mm |
| Voltage | 110V,220V,240V |
| Power | 20~25W |
| Tilting angle | 0~15° |
| Single trip time | 30s |
| Color | Silver /Black matt/ Gold |
| Remote distance | 10m |
| Control Way | Touch kep-press/Remote control/ RS485 central control |
| Running Way | Tubu motor with rack driving |
| Protection way | Cable Manager/Protection finger from nipping |
| Power Protection way | Monitor turn off automatically |
Workable All In One PC introduce : HP All In One PC, Lenovo All In One PC, ProOne 400 G1...

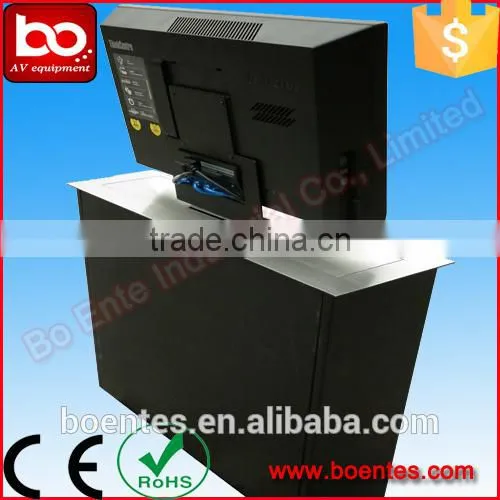

Product Detail Drawing :
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of LCD monitor lift is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Boene Company was supplied with LCD monitor lift, LCD flip up device and desktop socket for conference system, projector mount, projector lift, projection screen for audio video equipments, media hub, metral wall socket plate for hotel media socket.
All the product had approved with CE and ROSH, SASO.
OEM service is available. On-time shipment and payment protection and product quality protection.

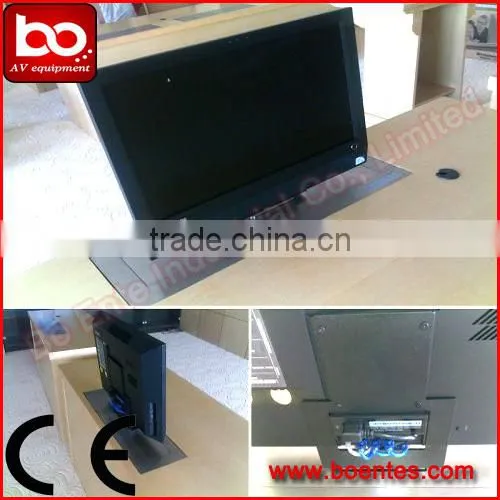

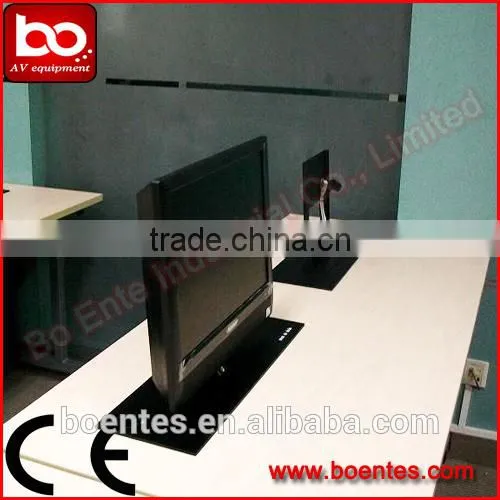

LCD Monitor Lift on Projects:
