Brushed Aluminum Pop Up Desktop Monitor Lift/Motorized LCD Monitor Lift

Specifications

LCD Monitor Lift with microphone
1,aluminum brushed panel
2,Suit for 19 inch monitor + microphone
3, 5mm silver/black panel

Brushed Aluminum Pop Up Desktop Monitor Lift/Motorized LCD Monitor Lift



Introduction:

Desktop LCD Monitor Lift with microphone is advance hiding equipment designed for audio video system in office furniture. The LCD screen with microphone of monitor microphone lift would be rising down into the desk and hidden under the office table when unused; Screen and microphone inside the LCD monitor lift with microphone would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.



Feature:

1, The panel of LCD monitor lift is aluminum alloy, with aluminum wire drawing process on surface.

2, The LCD lift adopts synchronous orbit lifting principle.

3, Monitor Lift with microphone works smoothly and quietly. Low noise which less than 30db.

4, Monitor Microphone Mechanisum provides protecting function of LCD monitors and microphone by cutting the electricity off automatically.

5, LCD Lifter would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.

5, LCD Lift device is controlled by two big AC motors. One controls opening and closing the panel of LCD monitor Lift with microphone; one controls lifting the monitor up and down and adjust the angles of the monitor.

6, Control system: Touch Switch on LCD monitor Lift with microphone panel, RF remote control, RS232 AND rs 485 central control.

7, The microphone would be rising up and down automatically with LCD screen together by controls system.



Characteristic

1, high quality aluminum alloy finishing with motors

2, A=A strong carton with foam cushion and waterproof film

3, silver/black/gold color is available for color selection

4, Power plug and voltage could be changed accordingly.

5, OEM with logo on product and packing is available

6, Customized made is available

7, Quality of LCD monitor Lift had approved by CE & SASO



Application:

LCD Monitor Lift with microphone is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.



Parameter:

Item Model	BML-17	BML-19
Style	LCD lift without monitor+ microphone
Products consitute	LCD+ microphone Lift+ Remote control
Panel size	540*160*5mm	600*170*5mm
Box size	520*138*625mm	575*153*625mm
Panel thickness	4mm	4mm
Lift mount size	460*80mm	520*95mm
Packing size	61*27*84cm	73*72*30cm
Tilting angle	0~15°	0~15°
Color	Silver/Black matt
Remote distance	10m
Material	Aluminum alloy draw bench panel
Control Way	Touch press/Remote control/ RS485 central control
Running Way	Tubu motor with rack driving
Protection way	Cable Manager/Protection finger from nipping
Power Protection way	Monitor turn off automatically





Professional Service:

1, Any of inquiries will be response within 48 hours

2, Sizable accessories of products for replacement

3, Sample of LCD monitor lift with microphone is available.



Warranty:

Study the user’s manual carefully before installation.

All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.



Payment:

T/T, L/C, Western Union, Money Gram, Crash is acceptable

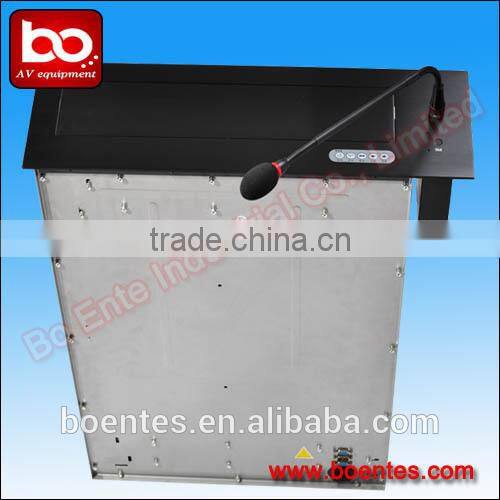

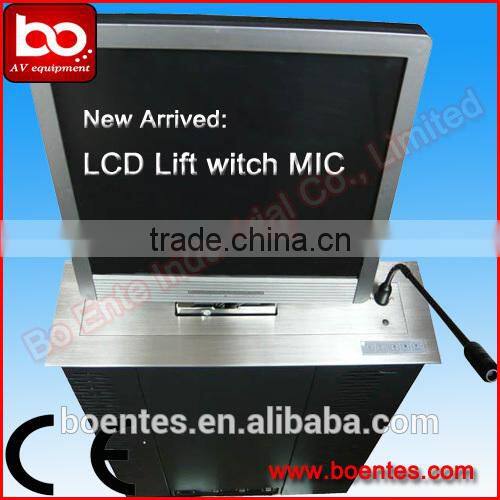

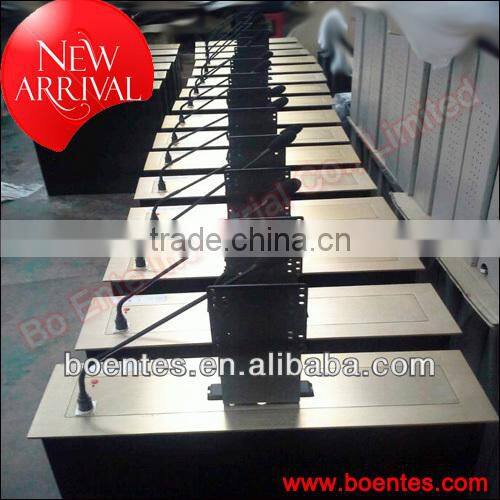

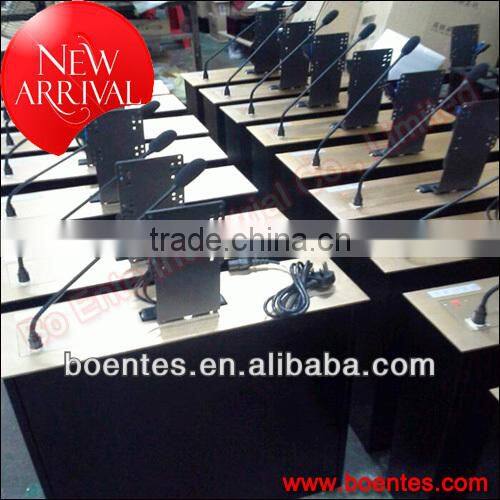

Product Pictures:



Packing Detail:
