22 Inch Motorized Lcd Lift System With Aluminum Wire Drawing Panel/desktop Electric Pop up Lift

22 Inch Motorized Lcd Lift System With Aluminum Wire Drawing Panel/desktop Electric Pop up Lift thumbnail-1
22 Inch Motorized Lcd Lift System With Aluminum Wire Drawing Panel/desktop Electric Pop up Lift photo-1
US$ 200 - 255 MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Video Conference System
Function:
Other, Presentation
Simultaneous Interpretation:
No
Contact Supplier Request Quote Chat Now
Guangzhou Boente Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System
Function Other, Presentation
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name Boente
Model Number BLL-22

Specifications

LCD Lift
1,Suit for below 22 inch screen
2,aluminum alloy finishing
3,5mm panel thickness
4,LCD lift up and dowm automatic

 22 Inch motorized lcd lift system with Aluminum wire drawing panel/desktop electric pop up lift



LCD monitor lift introduction:

Desktop LCD Monitor Lift is advance hiding equipment designed for audio video system in office furniture. The LCD screen of LCD monitor lift would be rising down into the desk and hidden under the office table when unused; Screen inside the LCD  lift would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.



LCD Monitor Lift Feature:

1, The panel of LCD lift is aluminum alloy, with aluminum wire drawing process on surface.

2, The Monitor Lift adopts synchronous orbit lifting principle.

3, Desktop LCD automatic lift up device works smoothly and quietly. Low noise which less than 30db.

4, LCD Screen Lift provides protecting function of LCD monitors by cutting the electricity off automatically.

5, LCD monitor Lift would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.

5, Tabletop Monitor Lift is controlled by two big AC motors. One controls opening and closing the panel of LCD monitor Lift; one controls lifting the monitor up and down and adjust the angles of the monitor.

6, Control system: Touch Switch on LCD electric Lift panel, RF remote control, RS232 AND rs 485 central control.



LCD Monitor Lift Characteristic

1, high quality aluminum alloy finishing with motors

2, A=A strong carton with foam cushion and waterproof film

3, white/black/gold color is available for color selection

4, Power plug and voltage could be changed accordingly.

5, OEM with logo on product and packing is available

6, Customized made is available



LCD Monitor lift Application:

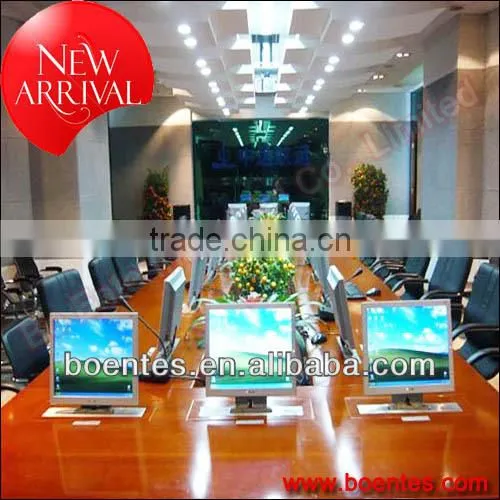

LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.



LCD Monitor Lift Parameter:

Item Series LCD Monitor Lift
Item Model BLL-17 BLL-19 BLL-22
Style LCD lift without monitor
Products consitute LCD monitor lift+ Remote control
Panel size 48 5*145*5mm 540*160*5mm 600*170*5mm
Box size 463*130*578mm 520*138*625mm 575*153*625mm
Panel thickness 5mm
Lift mount size 405*75mm 460*80mm 520*95mm
Packing size 60*27*78mm 61*27*84mm 73*72*30mm
Voltage 110V,220V,240V
Power 20~25W
Tilting angle 0~15°
Single trip time 30s
Working temp 5~40
Environmental temp ­20~60
Related humidity 20~80%
Color Silver/Black matt/ Golden
Remote distance 10m
Material Aluminum alloy draw bench panel
Control Way Touch key-press/ Remote control/RS485 central control
Running Way Tubu motor with rack driving
Protection way Cable Manager/Protection finger from nipping

LCD Monitor Lift Professional Service:

1, Any of inquiries will be response within 48 hours

2, Sizable accessories of products for replacement

3, Sample of LCD monitor lift is available.



Warranty:

Study the user’s manual carefully before installation.

All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.



Payment:

T/T, L/C, Western Union, Money Gram, Crash is acceptable

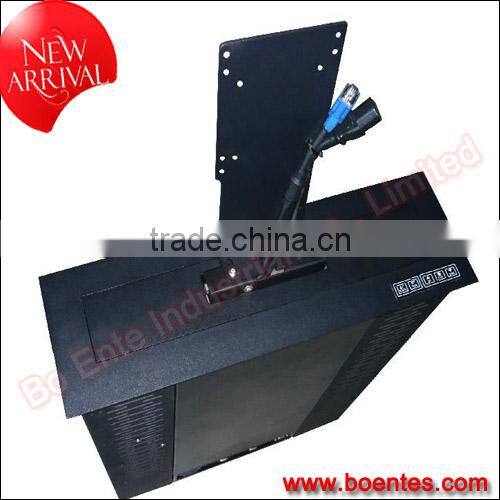

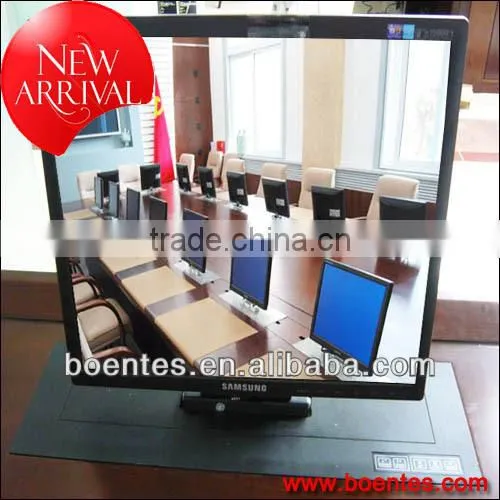

LCD Monitor Lift Pictures:

 22 Inch motorized lcd lift system with Aluminum wire drawing panel/desktop electric pop up lift22 Inch motorized lcd lift system with Aluminum wire drawing panel/desktop electric pop up lift
