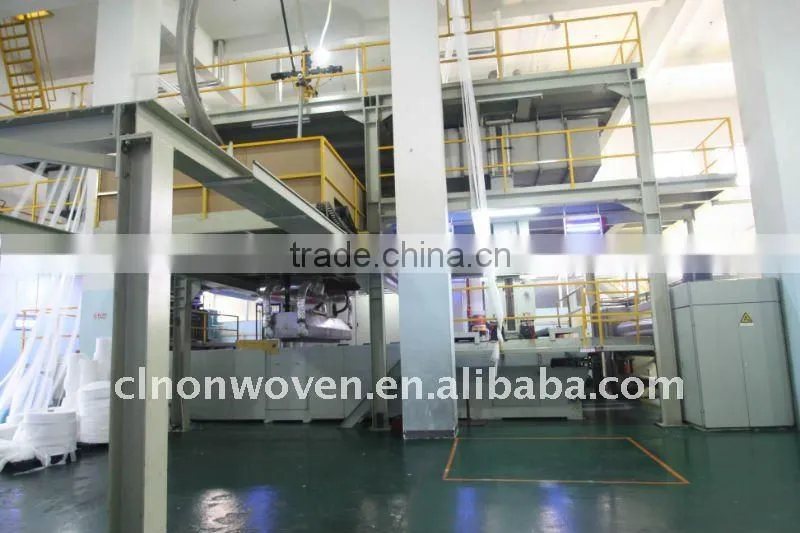

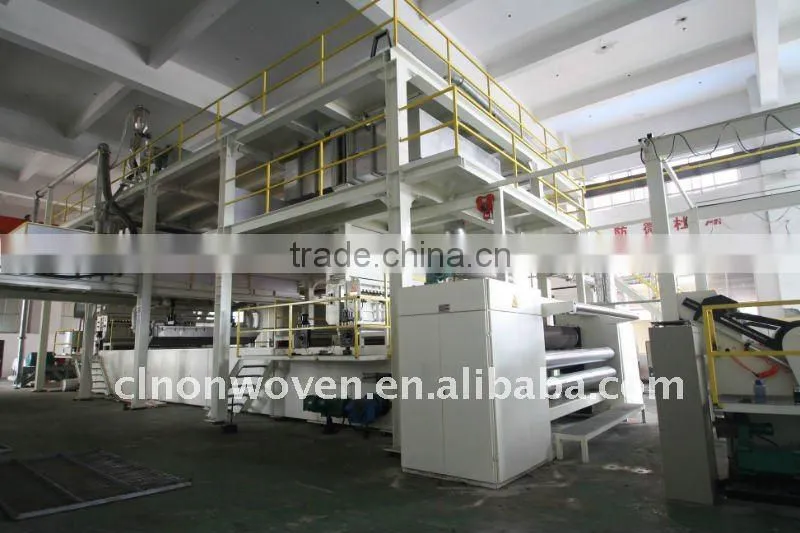

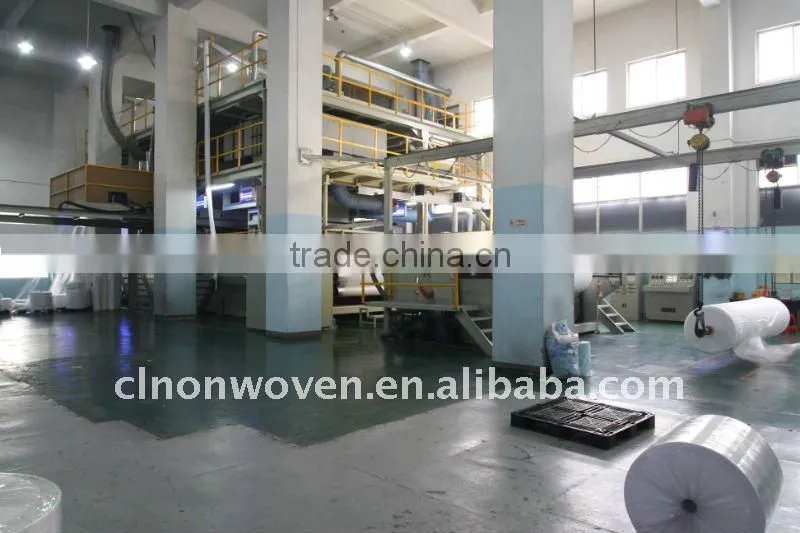

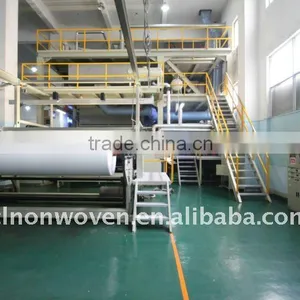

3200MM PP spunbond nonwoven machine (CL0001)

Specifications

PP Spunbond nonwoven machine
1.Gsm: 10-200gsm
2.Max speed: 300-400m/min

Dear customer Welcome visit our company alibaba web site .below is my company and parts of pp spunbond nonwoven machinery  introduce .



C.L. Enterprise combining SMMS, PP nonwoven production line manufacture and R&D, production sales for SMS, PP, PET, PLA post-processing,bicomponent,,nonwovens.



 C.L. is a comprehensive joint stock-holding partnership enterprise which also act as vice-president unit of CHINA as one of the limited liability company.



 C.L. has great technical strength and pay lots of attention to innovation. Our specially designed and manufactured production line and nonwoven are competitive among the similar machines all over the world



Our company has past ISO-9001-2008 quality certificated system, metrological measurement system and standardization system .



we have exported and installed a lot of machine at home and aboard . we provide whole system of installation,commissioning,training service .By doing all of this for years,we won a good reputation at home and aboard..



A .Spinning



1.Feeding System : Max 800 Kg/h of raw material, Max 10% of the raw material for the colorful PP articles



2.Extruder temperature : (Adjusted according to the different MFI of different material )





Cooling Section:	Section one: 200-203 ºC
Section two: 210 - 240ºC	Section three: 220-250ºC
Section four: 220-250 ºC	Section five: 220-250ºC
Section six : 220-250ºC	Flange section: 220-250ºC
Flexible pipe section:220-250ºC	Extruder rotate speed: 20-80rpm
Extruder diameter:Ø 170mm,         L/D = 30:1



3. Spinning manifold:

Manifold temperature 220 - 260ºC



Material temperature 200-240ºC



4.   Metering Pump:



         Specification: One pumps of 300cc/r

           Rotate speed: 0-41rpm



B.Web forming



1. Suction : Max suction speed is 15m/s and the total air quantity is 20000 m³/h



2. Air distribution : Uniform at the cross direction, Decreasing from the airjet to the web former at the machine direction.



C.Thermalbonding



Width : 3200 mm                                    Max speed: 160mm/min

Roller Type: The up one surface is fluting and the down one surface is smooth.



Roller diameter: 480mm                         Max temperature:260ºC



Bonding area: 19.01%                           Pressure: 50-100N/mm

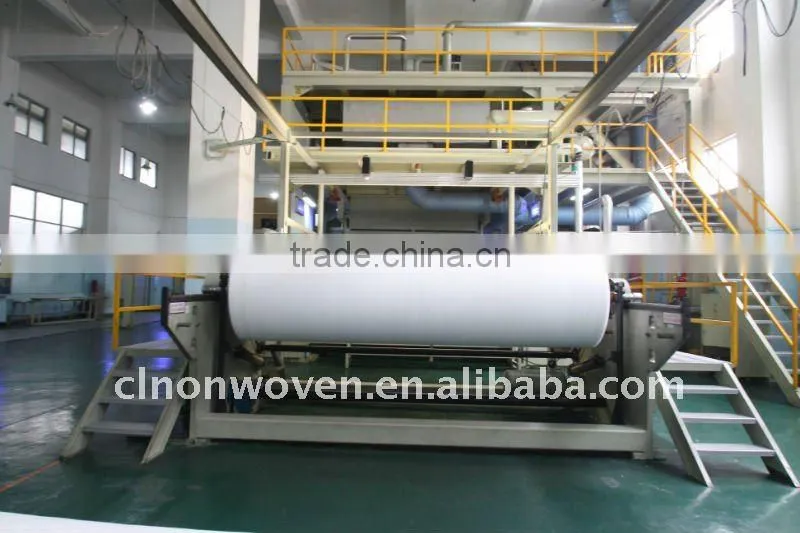

D.Winding



Max width: 3200mm                              Max diameter: 1200mm

Max machinery speed:160m/min         Max prodn.speed:160m/min







If you need more information about the machine  please contact us ,we have professional sales manager will contact to you ,send you more detail information about sms spunbond non-woven  machine  .
