Android WIN CE/Mobile handheld terminal with barcode rfid reader printer wifi GPS GSM IP65

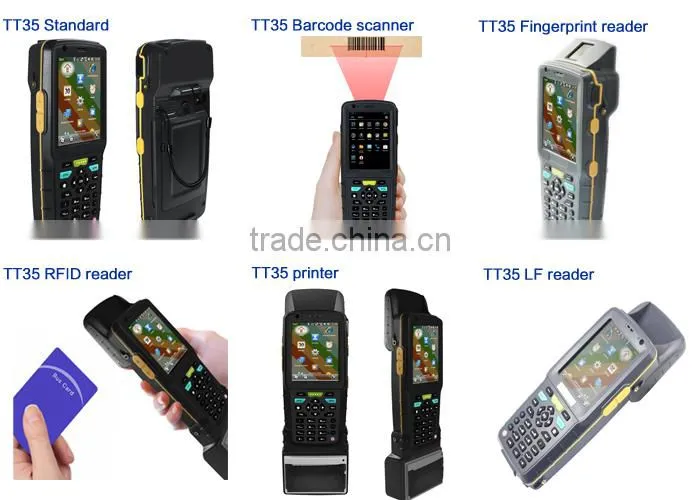

Speedata handheld terminal TT35 Series Selling point:
1. Support 3 OS: Android 4.0/ WinCE/ Windows mobile 6.1/6.5
2. Support :1D/2D Barcode scanner/ LF/HF/UHF RFID reader and write, RFID reader/ DGPS/ PSAM/ Thermal printer/ Far-infrared meter reading/ Fingerprint reader;
3. Can be widely used like fingerprint identification, attendance system, mobile check in etc;
4. IP65/SDK provided free, powerful integration!!

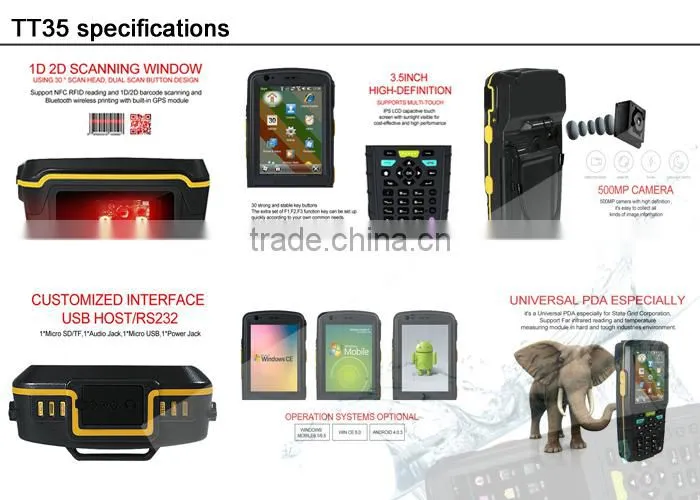

Handheld terminal TT35 Data parameter:
| OS option | |||||
| OS | option 1 | Windows mobile 6.1/6.5 | |||
| option 2 | WM CE 6 | ||||
| option 3 | Android 4.0 | ||||
| Hardware | |||||
| Core board | |||||
| CPU | TI3715 A8 1Ghz | ||||
| WWLAN | option 1 | without modem | |||
| option 2 | Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ) | ||||
| Phone call &SMS function | NA. (Only supports Internet access.) | ||||
| Memory | Flash ROM | 512MB | |||
| RAM | 512MB DDR | ||||
| Extend Slot | Micro SD 32G (SDHC) | ||||
| Motherboard | |||||
| Display | 3.5inch TFT LCD (Transflective screen VGA ) | ||||
| touch screen | 4-wire resistive | ||||
| Form Factor | Bar type classical Pocket PC,Industrial appearance | ||||
| GPS | UBLOX 6010 | ||||
| Bluetooth | JORJIN WG7310 Bluetooth | ||||
| WiFi | JORJIN WG7310 WiFi (802.11 b/g/n) | ||||
| External Interface | USB HOST/RS232(Customized) | ||||
| Protection class | IP65 | ||||
| Drop resistance level | 1.5m | ||||
| Camera Function | Camera | 5MP Camera | |||
| Video | Support still image and video capture | ||||
| Keypad | Front | 30keys | |||
| Side | 4keys | ||||
| Interface | Mini-USB connector | USB2.0 connection | |||
| SIM card slot | Yes | ||||
| TF card slot | Yes | ||||
| power jack | Yes | ||||
| Audio Jack | Yes | ||||
| Battery | Type | rechargeable Li-ion battery 4500mAh | |||
| Standby Time | 500hours | ||||
| Calls Time | Up to 6hours | ||||
| Charging Time | 4 hours | ||||
| Physical Characteristics | Dimension | 182*82*36mm | |||
| Weight | >400g with battery (according config) | ||||
Other functions can be integrated together& all in one:
Data Parameter:
| PSAM(Optional) | ISO7816 *2 (SIM card interfance) | ||||
| MSR(Optional) | Compatible with one, two, three track. (without PCI, EMV security certification.) | ||||
| IC reader(Optional) | ISO7816 ID-1 | ||||
| Thermal Printer (Optional) | Direct thermal line printing | ||||
| 433MHz Wireless transmission(Optional) | Require customers to provide 433Mhz wireless modules or specifications. | ||||
| Far Infrared Meter Reading (Optional) | IEC62056-21(IEC1107) communication protocol | ||||

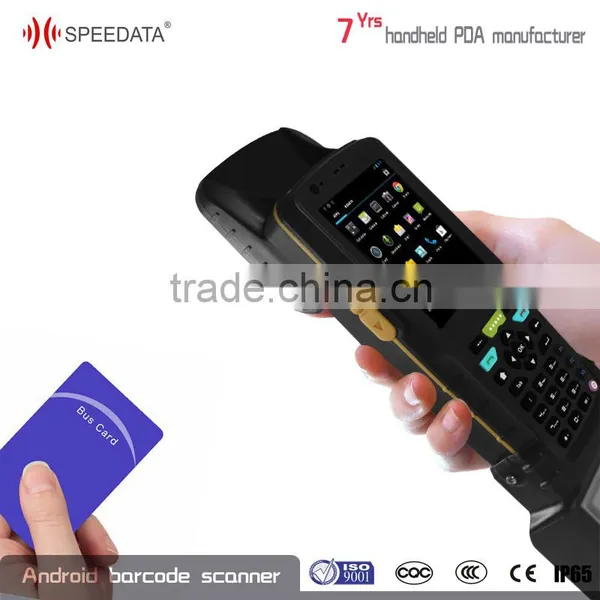

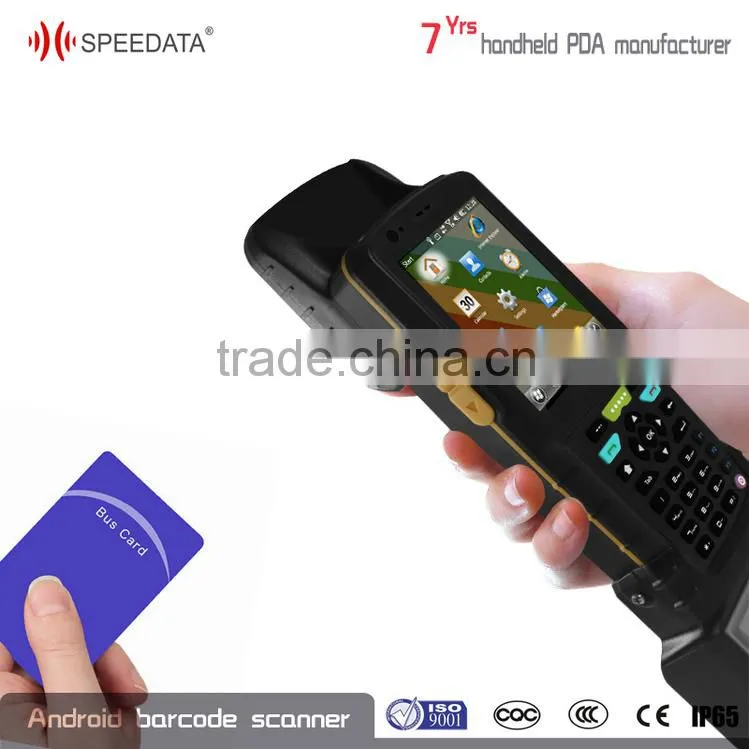

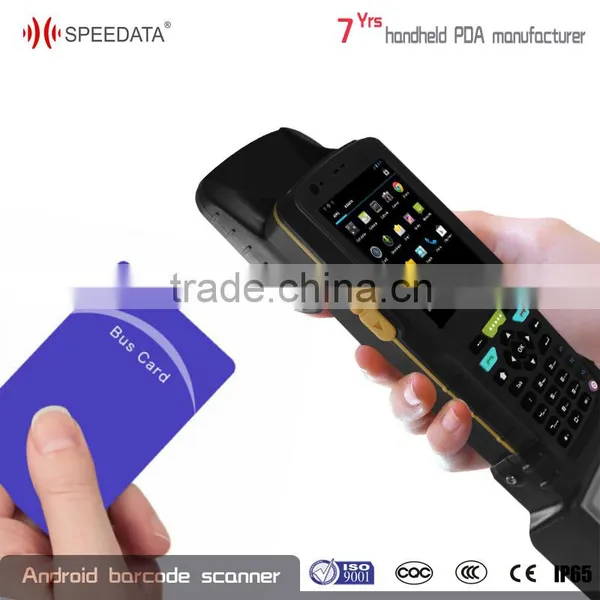

| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) | |||
| option 2 | LF RFID(125KHz) | ||||
| option 3 | HF RFID(13.56MHz ISO 1443A/B ISO 15693) | ||||
| option 4 | NFC Reader (only android OS) | ||||
| option 5 | 2.4G RFID(Customer specified module, customized according to customer's module.) | ||||
| option 6 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset | ||||
| option 7 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) with PR9200 shipset | ||||

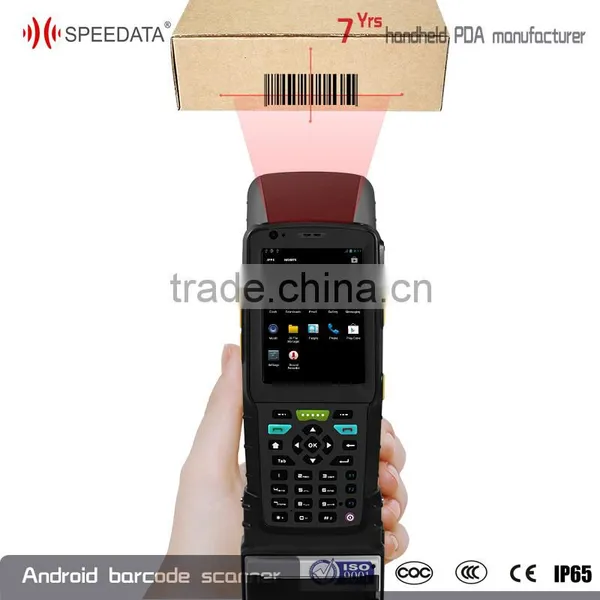

| barcode scanner | option 1 | NEWLAND:EM1300(1D barcode reader) | |||
| option 2 | NEWLAND:EM3000(1D/2D barcode reader) | ||||
| option 3 | symbol:SE955(1D laser barcode reader) | ||||
| option 4 | HoneyWell:N4313 (1D laser barcode reader) | ||||
| option 5 | Symbol: se4500(1D&2D barcode reader) | ||||

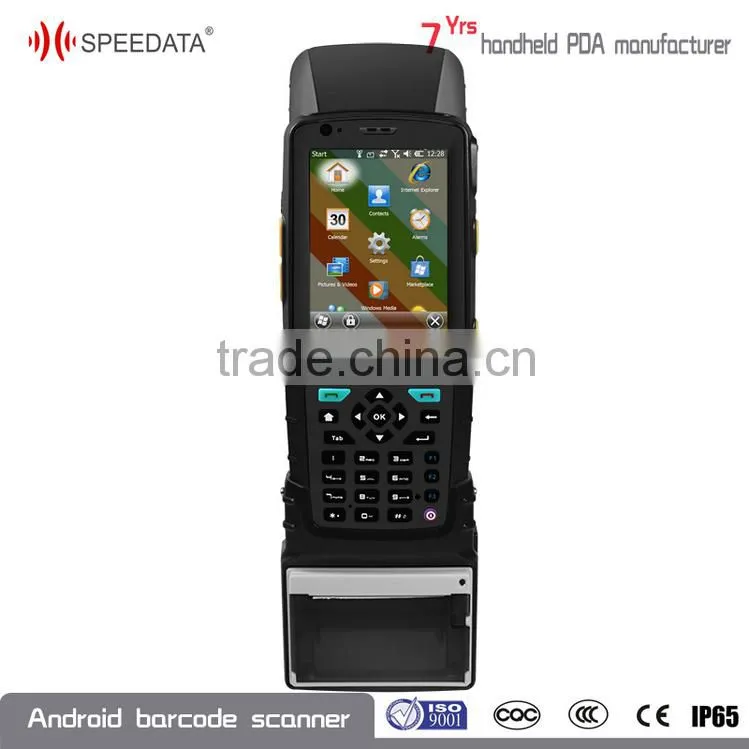

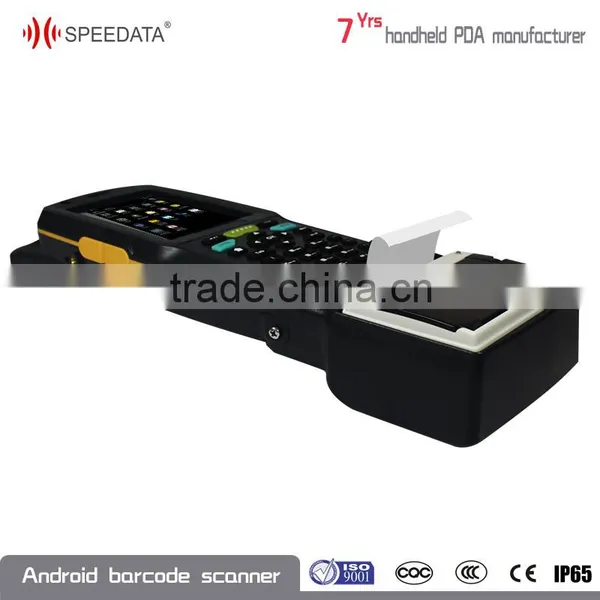

| Printer Module Specifications | |||||
| Printing method | Direct thermal line printing | ||||
| Paper width | 57mm | ||||
| Print width | 48mm | ||||
| Resolution Ration | 8 dots/mm (384 dots/line ) | ||||
| Life of printing head | 6,000,000 character lines | ||||
| Printing speed | 20mm/sec (when the utilization is 25%) | ||||
| Character size | 8*16dots , 12*24dots | ||||
| Paper supplied | 57mm wide , 30mmø | ||||
| Interface | Serial RS232C/TTL | ||||
| Input power | DC 5--8.5V ,15W | ||||
| Operating temperature | 5℃--50℃ | ||||
| Storage temperature | -20℃ -- 60℃ | ||||
| Operating humidty | 10%--80% | ||||
| Storage humidty | 10%--90% | ||||
Fingerprint Module Specifications
| 1:1 verification matching speed | < 400ms(Feature extraction and fingerprint matching) | ||||
| 1:256 Fingerprint search time | < 2s | ||||
| Resolutions | 500DPI | ||||
| Image Size | 256x304 pixels | ||||
| Security level | 5, adjustable | ||||
| Capacity | 1776 fingerprints | ||||
| FAR | <0.001% | ||||
| FRR | <%1.5 | ||||
| Supply power | 3.6V-7V | ||||
| Working current | <80mA | ||||
| Peak current | <100mA | ||||
| Communication interface | TTL(RS232) | ||||
| Communication Baud rate | 38400bps,57600bps,115200bps | ||||
| Working temperature | -10℃~50℃ | ||||
| Working humidity | 45%RH~85%RH (no dew) | ||||
| Module dimension | 55.0×22×24.5mm (L*W*H) | ||||
Rugged IP65
MT35 can withstand multiple drops onto concrete from 1.5 meters.
IP65: Waterproof, dustproof and drop resistant. Suitable for all kinds of complicated industrial environment.
Connect port
USB 2.0/RS232/USB Host/ Cradle/ SIM card/ TF card/ Power jack/ Audio Jack
|
|
|
|
Beijing Speedata Technology Co., Ltd (stock code: 832442 ), founded in 2008, is a provider of IoT (Internet of Things) solutions and OEM/ODM manufacturer of wireless hardware terminal and software solution, focusing on such wireless network enabling technologies as 1D/2D Barcode scanner, RFID , 433M, MSR, ZigBee, PSAM, and IC card reader...
We are headquartered in Beijing, with sales/R&D offices in Shanghai, Shenzhen, Dalian, and Tianjin city of China, and two manufacturing facilities, one in Beijing and one in Tianjin.
At the same time, we successfully cooperated with Foxconn by OEM/ODM in Shenzhen.
As a OEM/ODM and R&D manufacturer of barcode scanners, we support you:
- Completely Free SDK and technical support for you.
- ODM/OEM and 6 kinds of customization services according to your needs.
- 13months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.
- Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.
Question 1: what's your barcode scanner MOQ?
Answer: the MOQ of speedata barcode scanner barcode scanner is 1 pcs.
Question 2: how long is the delivery time?
Answer: The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Answer: Yes, Of course. We can provide 1 sample of barcode scanner PDA for your testing.
Question 4: What's the total price for 1 sample?
Answer: As a manufacturer of barcode scanner terminal PDA.the more you buy,the cheaper it'll be.
the sample price is a little bit higher than the common wholesale price.excluding the freight fee.
Question 5: Are you a manufacturer of barcode scanner PDA?
Answer: Yes, we are a chinese listed company of R&D and producing barcode scanner hardware and software. and also we cooperate with Foxconn for OEM.
Question 6: what kind of services do you support?
Answer:1.We provide you Free SDK and technical support for your barcode scanner.
2.we also provide ODM/OEM customization services according to your needs.
3.We support 13months Warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it costs 0.5% for each per year.
Question 7: what's for payment term and delivery term ?
Answer: 1.It's generally 30%-100% TT in advance for all orders for the payment term.
with supporting via bank card, Paypal or West Union.
2.FOB Shenzhen for Delivery term.
Question 8: who are your customers?
Answer: 1.That's quiet a serious question, but Our products are sold worldwide in South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get great feedback from our customers.
IF you need more information and details, Please Feel free to contact us. Thanks for your attention.
FAQ:
For any questions you can contact:
Name: Iris Li
M: +86 137 2421 6730
Skype: yimiyimi58
