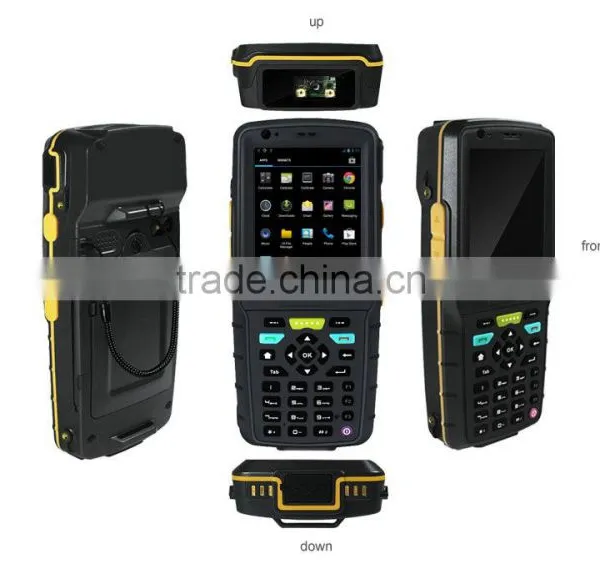

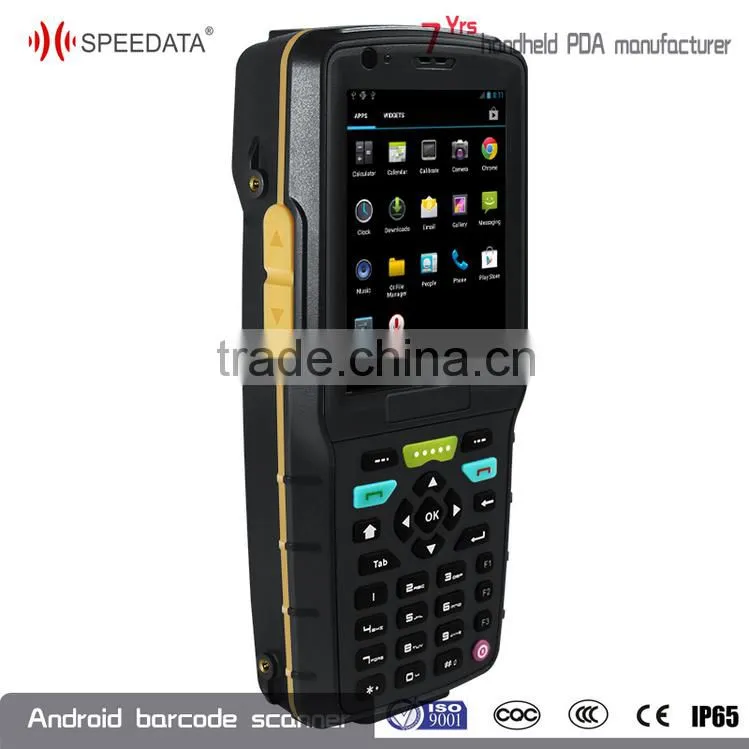

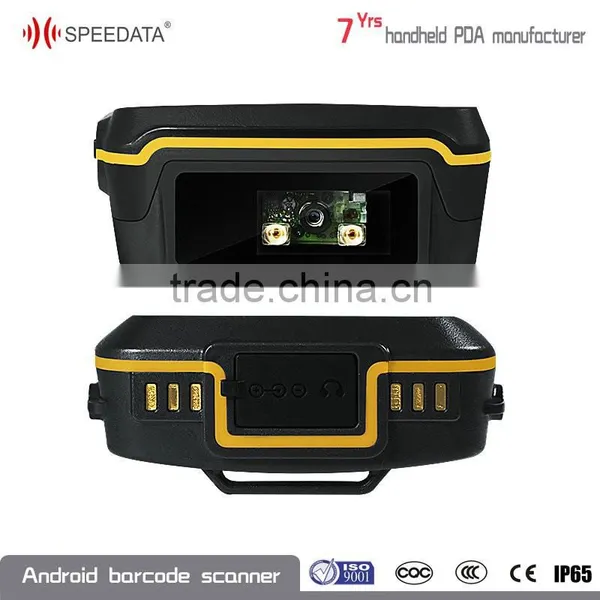

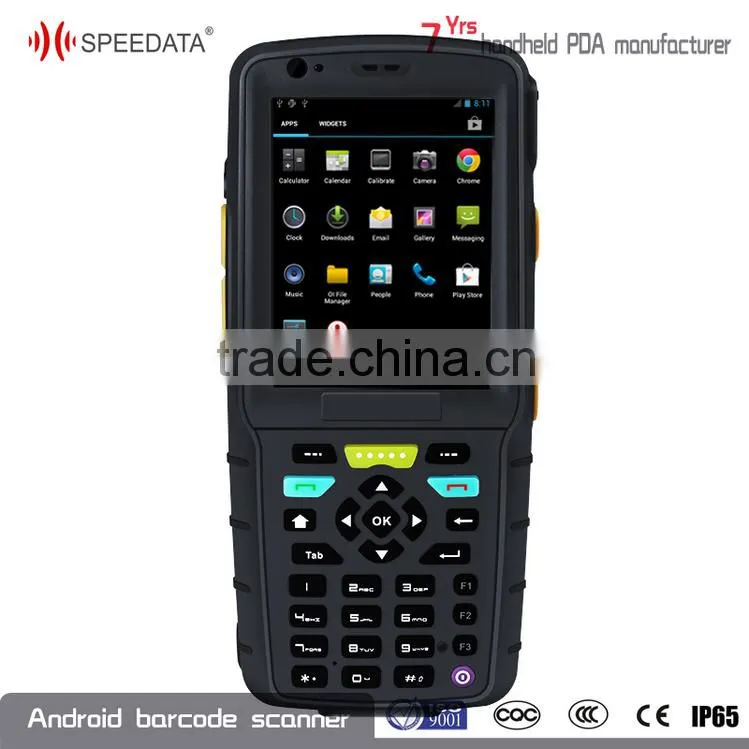

3.5inch color touch screen wifi/3G/GPS rugged android tablet rfid reader
Advantages of TT35 android tablet rfid reader :
- Universal product, Support extending corresponding module according to customers'demands
- Both ultra-sensitive resistive screen, durable and suitable for complex industrial environments.
- 3 Operation Systems optional: Android, Mobile CE/Mobile
- Both ultrasensitive resistive screen and rugged design with durable and suitable for complex industrial environments.
Specifications of TT35 android tablet rfid reader :
- 3.5inch high-definition IPS LCD capacitive touch screen,sunlight visible
- 30 Strong and stable keys buttons
- Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.
- Built-in Ublox/beidou double GPS modules, more accurate positioning
- Reserved identity recognition, fingerprint identification, infrared measuring temperature, etc., strong and wide extensibility
- IP65 Industrial Class, 1.5M drop protection
- Mutiple modules optional for your customization
Parameters of TT35 android tablet rfid reader :
| Development Environment | |
| Operating System | Windows Mobile 6.1/6.5 (Optional 1) |
| Windows CE 6.0 (Optional 2) | |
| Android 4.0.3 | |
| SDK | Software Development Kit |
| Language | C#, java |
| Tool | Microsoft Visual Studio 2005 |
| Fundamental characteristics | |
| CPU | TI AM3715 A8 1Ghz |
| Memory | 512MB DDR RAM + 512MB Frash ROM |
| Storage | Micro SD/TF card max.32GB expansion |
| Display | 3.5-inch TFT LCD (Transflective screen VGA 640*480) |
| 4-wire resistive touch screen | |
| Communications | |
| WWLAN |
Without modem (No 3G/GPSR Communication module) (Optional 1) |
|
Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2) | |
| WiFi | JORJIN WG7310 WiFi (802.11 b/g/n) |
| Bluetooth | JORJIN WG7310 Bluetooth |
| GPS | UBLOX 6010 |
| Physical Characteristics | |
| Dimensions | 182*82*36mm |
| Weight | more than 400g with battery (according config) |
| Expansion Slots | 2*PSAM, 1*SIM |
| Battery | rechargeable li-ion battery 4500mAh 3.7V |
| Or rechargeable li-ion battery 2250mAh 7.4V (if with printer) | |
| 500-hours standby time, Up to 6-hours calling time, 4-hours charging time | |
| Camera | 5MP Camera |
| Video | Support still image and video capture |
| Audio | 3.5mm 4way plug |
| Keypad | Front 30keys, Side 4keys |
| Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
| USB Host/RS232 interface (Customized) | |
| User Environment | |
| Operating Temp. | -10 to 50℃ |
| Humidity | 10%RH - 90%RH (Non-condensing) |
| Protection class | IP65 |
| Drop resistance level | 1.5M |
Multiple modules of TT35 android tablet rfid reader :
| Barcode scanners (optional ) | |
| 1D Linear Scanner (Optional) | |
| 1D scanner | Symbol SE955 (Optional 1) |
| NEWLAND EM1300 (Optional 2) | |
| HoneyWell N4313 (Optional 3) | |
| 2D Imager Scanner (Optional) | |
| 1D/2D scanner | NEWLAND EM3000-hardware decoding (Optional 1) |
| Symbol SE4500-software decoding (Optional 2) | |
| RFID readers | |
| LF RFID reader | (134.2khz, ISO11784/11785, FDX-B/HDX) (Optional 1) |
| (125KHz) (Optional 2) | |

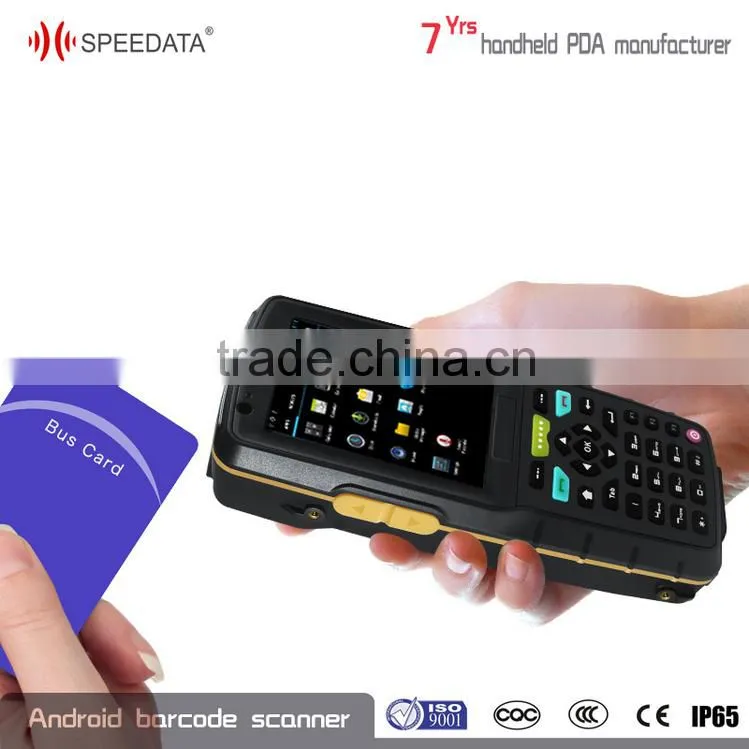

| HF RFID reader | (13.56MHz ISO 14443A/B ISO 15693) |
| NFC reader | (include 13.56MHz ISO 14443A ISO 15693) |
| UHF RFID reader | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset -- reading distance up to 3m |
| Biometric fingerprint (optional ) | |
| Fingerprint | SM-621B (optical fingerprint) (Optional 1) |
| Other Modules (optional ) | |
| DGPS | Ublox LEA-6T (with RTK) |
| PSAM | ISO7816 (SIM card interfance) |
| MSR | Compatible with one, two, three track. (without PCI, EMV security certification) |
| IC card reader | ISO7816 ID-1 |
| Printer | Integrate 2inch Direct thermal line printing |
| Far Infrared Meter Reading | IEC62056-21 (IEC1107) communication protocol |
| 433Mhz | Require customers to provide 433Mhz wireless modules or specifications |
| Zigbee | Require customers to provide 433Mhz wireless modules or specifications |
|
|
|
|
1.As a hardware PDA producer, We also offer OEM/ODM design and manufacturing service for hardware required for Data collector terminal PDA, including
- Brand & Logo
- Different colors
- Multiple modules integration
- Wide industrial and business solutions
- Competitive and diverse price ranges
1. Price ranges |
Factory direct with competitive and wholesale price with different demands |
2. Modules Options |
Over 18 kinds of module functions are optional to meet your demands |
3. 3 Operation System |
3 Operation System for inference: Win Mobile/CE and Android |
4. Colors Options |
4 kinds of colors to choose: yellow, green, grey and blue. |
5. Customizations |
Support OEM/ODM services with LOGO or Mainboard for our customers by Foxconn |
6. Wide Solutions |
it supplies wide and various industrial solutions to make effective enterprises. |
More customized services are provided to make your enterprises more effective and efficient.

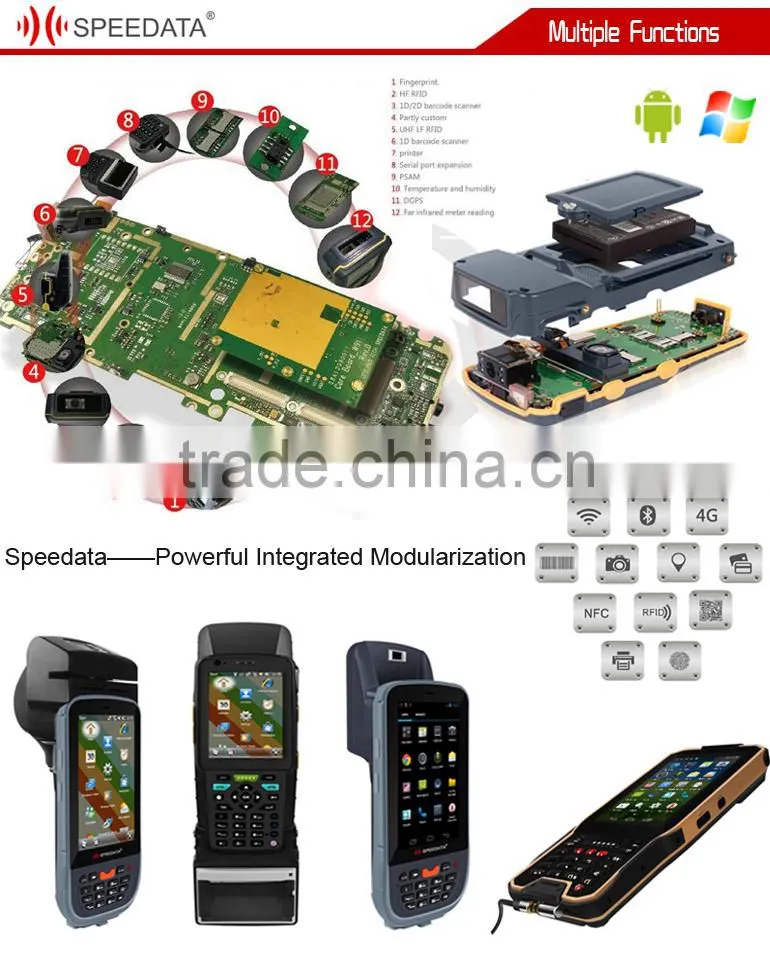

2.As for software integration , We not only support 18 kinds of multiple modules but also supply 3 compatible operating systems. Those Including
- The most popular Android 4.4 and Windows CE or Mobile
- 1D/2D barcode scanner
- LF/HF/UHF RFID as well as NFC RFID Function.
- Biometric fingerprint reader
- Thermal printer
- DGPS/ PSAM/ 433M/ IC Card/ MSR/ IR Meter Reading
More Modulars and functions are developed as below:
| 1.1D/2D barcode scanner | 5.Thermal Printer | 9. 433M | 13.Bluetooth /WiFi |
| 2.Fingerprint reader | 6.IC reader | 10.ZigBee | 14.GPS/GPRS |
| 3.LF/HF/UHF RFID reader | 7.PSAM | 11.IR Meter reading | 15.2G /3G /4G |
| 4.NFC RFID reade | 8.MSR reader | 12.Temperature Reader | 16.Camera/Video |
……
We have a strong R&D team for not only hardware but also software, having developed the following solutions for our customers:
- Cold-chain logistics and transportation tracking
- meat product tracking
- Mobile police service
- Fixed-Assets management
- Tickets checking
More industrial solutions of management systems as following:
| 1.Logistics & Express | 7.Geomatics & Surveying | 13.Surveying and mapping |
| 2.Transportation | 8.Product tracking | 14.Agriculture |
| 3.Electric meter readings | 9.Health & pharmaceutical industry | 15.Water conservation |
| 4.Network community management | 10.Mobile police service | 16.Animal tracking & research |
| 5. Storage & Distribution | 11.Tobacco Logistics | 17.Retail chain |
| 6.Petrochemical inspection | 12.Fixed-assets management | …… |
We are seeking to bring the latest technologies to more people and bussiness around the world.
Beijing Speedata Technology Co., Ltd (stock code: 832442 ), founded in 2008, is a provider of IoT (Internet of Things) solutions and OEM/ODM manufacturer of wireless hardware terminal and software solution, focusing on such wireless network enabling technologies as 1D/2D Barcode scanner, RFID , 433M, MSR, ZigBee, PSAM, and IC card reader...
We are headquartered in Beijing, with sales/R&D offices in Shanghai, Shenzhen, Dalian, and Tianjin city of China, and two manufacturing facilities, one in Beijing and one in Tianjin.
At the same time, we successfully cooperated with Foxconn by OEM/ODM in Shenzhen.
