GHG Series Yulong Brand Wood Shaving Dryer/sawdust Rotary Dryer/wood Sawdust Dryer

GHG Series Yulong Brand Wood Shaving Dryer/sawdust Rotary Dryer/wood Sawdust Dryer photo-1
US$ 8,400 - 240,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drying Equipment
Place of Origin Shandong, China
Brand Name Yulong
Model Number GHG1.0*12*1
Voltage 380V or others
Power(W) 5.5+7.5kw
Dimension(L*W*H) 12*1.0*1m
Weight 5,27t
Certification CE ISO9001
Warranty 13 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

wood sawdust dryer
rotary dryer
dry water: 0.4t/hour
5.5+7.5KW
CE,ISO

GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer



We produce biomass pellet making line machines such as wood logs splitter, wood logs

debarker, wood chipper, hammer mill, straw bale cutter, mixer, dryer and cooler, pellet machine

and briquette machine, pellet packing machine and conveyors e. c. t , for biomass dryer ,

we have two types, one is air dryer, the other is rotary drum dryer,

for rotary drum dryer introduction as below :



1. GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer is mainly to dry biomass or Fertilizer or animal feed powder materials ,it has changeable speed

rotary drum , which can dry high humidity materials, such as to dry biomass from sawdust, straw, stalk, animal feed materials from maize, soybean,cereal fertilizer materials from poultry manure,home or factory waste ect .



2. GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer drum RPM can be controlled according to raw materials humidityIf humidity is large,

then can control feeding speed lower and drum RPM lower to make longer drying time.



3. GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer

has temperature adjusting equipment between stove and dryer, which can adjust hot air

temperature when feeding to dryer drum according to raw materials humidity and outlet stove

hot temperature.



4. GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer has two ways to discharge materials, one is to outlet from rotary drum bottom, it is mainly

fit for large weight ratio materials , the other is to outlet materials from cyclone bottom,

which mainly fits for light ratio materials . so please tell us what kind of raw

materials and dimension, raw humidity, then we will help you choose best dryer model.



5. The dried material divergence is not sticky, granular or powder is the best.



6. GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer is very hot selling more than 200 sets per year,

greatly welcome to ask me for more details , we have big discount at this moment .



Technical parameters of GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer





Model

Power (kw)

Steam Evaporation capacity

(ton)

GHG0.8*6*1

4+3

0.1-0.2

GHG0.8*12*1

4+5.5

0.2-0.3

GHG1.0*6*1

4+7.5

0.2-0.3

GHG1.0*12*1

5.5+7.5

0.4-0.5

GHG1.2*12*1

5.5+7.5

0.4-0.6

GHG1.4*12*1

5.5+11+7.5+3

0.6-0.8

GHG1.5*12*1

5.5+15+7.5+4

0.8

GHG1.6*12*1

5.5+18.5+7.5+4

0.8-1

GHG1.6*24*1

7.5+22+15+5.5

1.1-1.2

GHG1.8*12*1

7.5+18.5+11+4

0.8

GHG1.8*12*3

11+30+5.5

1

GHG1.8*24*1

11+30+4

1

GHG2*12*1

7.5+22+11

1.2

GHG2*12*3

11+45+5.5

1.5

GHG2*24*1

7.5+37

1.2

GHG2.2*12*1

7.5+22+4

1.2

GHG2.2*12*3

11+45

1.5

GHG2.2*24*1

7.5+37

1.8

GHG2.5*12*1

15+22+4

1.5

GHG2.5*12*3

18.5+45

1.8

GHG2.5*24*1

15+37

1.8

GHG2.8*12*1

18.5+30+4

1.8

GHG2.8*12*3

22+55

1.8

GHG2.8*24*1

22+45

2.4

QHG3*12*1

22+45+4

2.5

GHG3*12*3

30+55

2.5

GHG3*24*1

22+45

3

GHG3.5*24*1

30+45+5.5

3.6

GHG3.5*12*3

75+45

3.8

GHG3.5*24*1

22+45

3

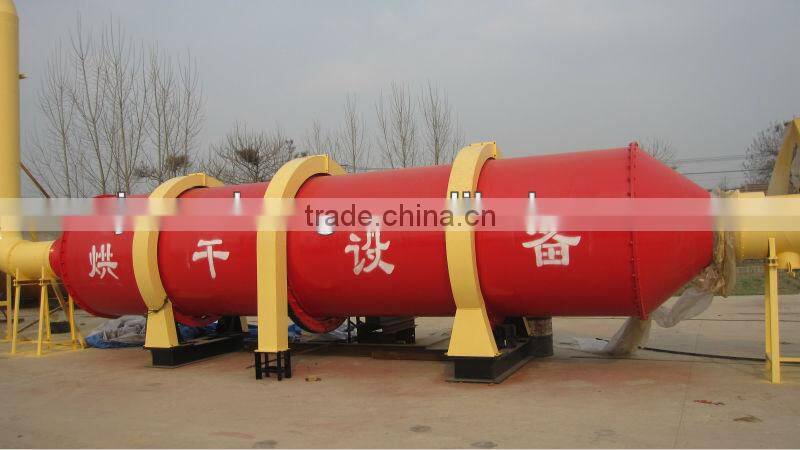

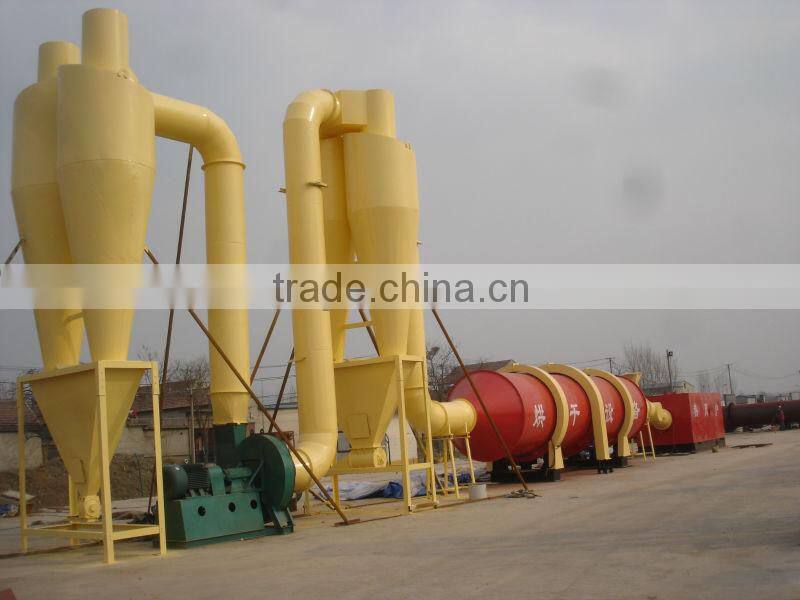

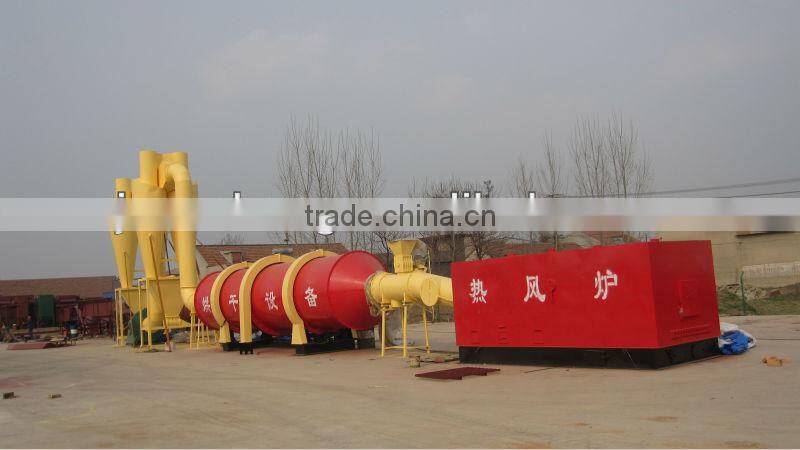

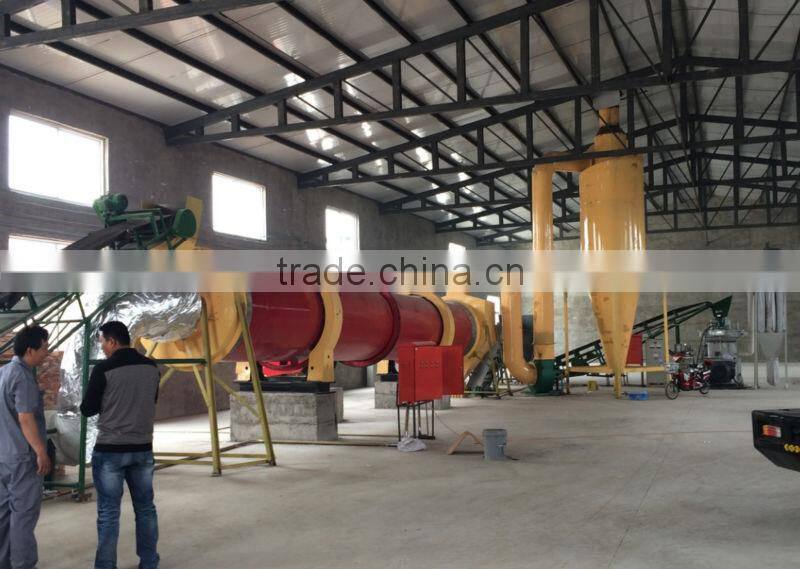

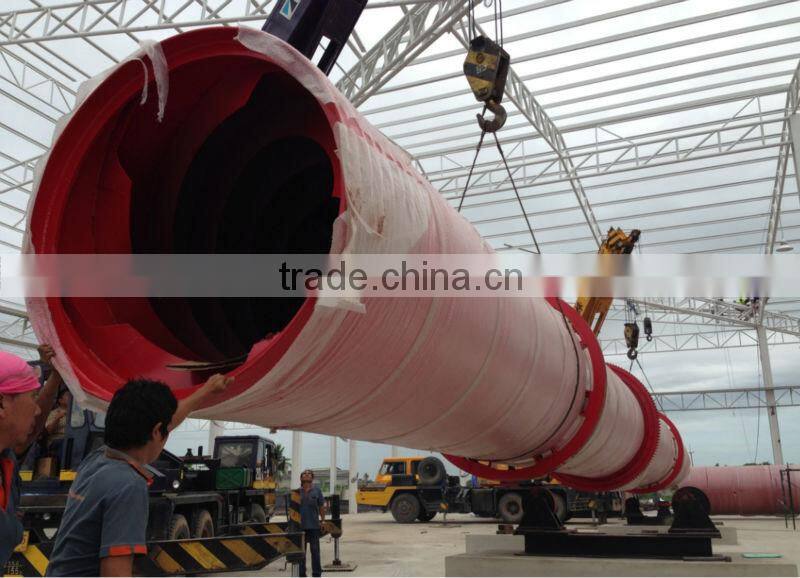

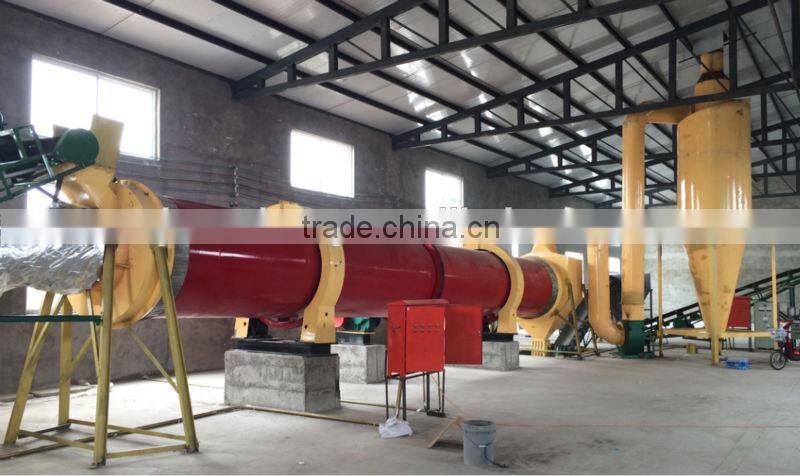

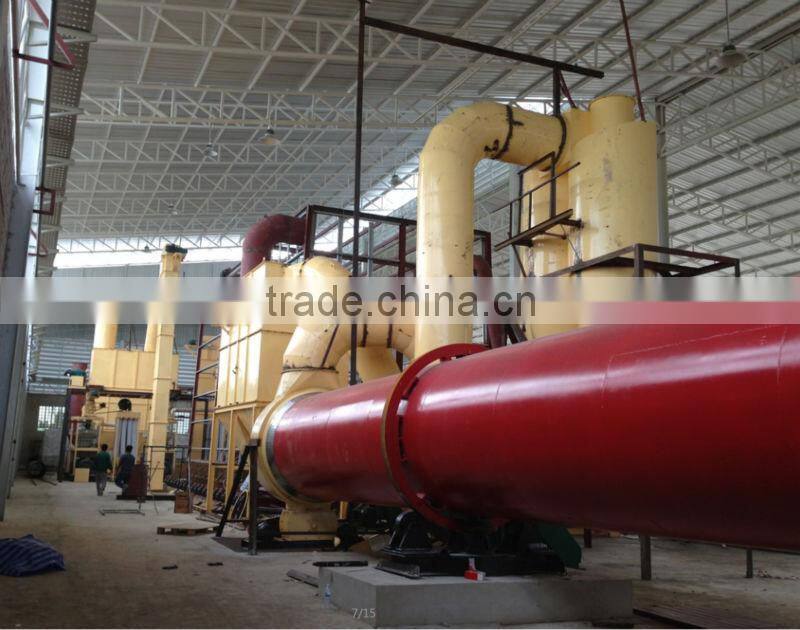

Picture of  GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer



GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer





GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer







GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer

GHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryerGHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryerGHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryerGHG series Yulong brand wood shaving dryer/sawdust rotary dryer/wood sawdust dryer



If you want to konw more details of our sawdust dryer, feel free to contact me!
