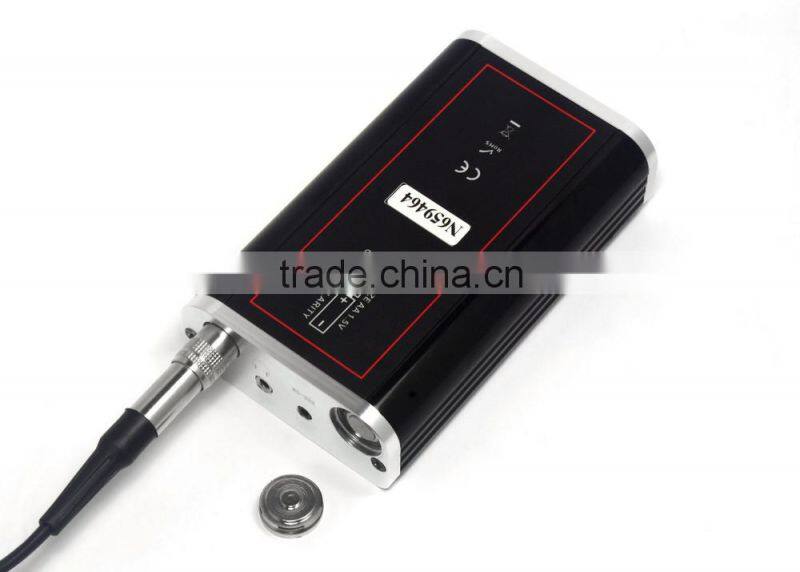

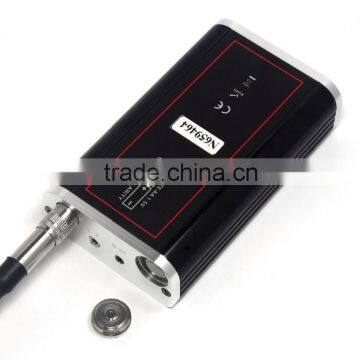

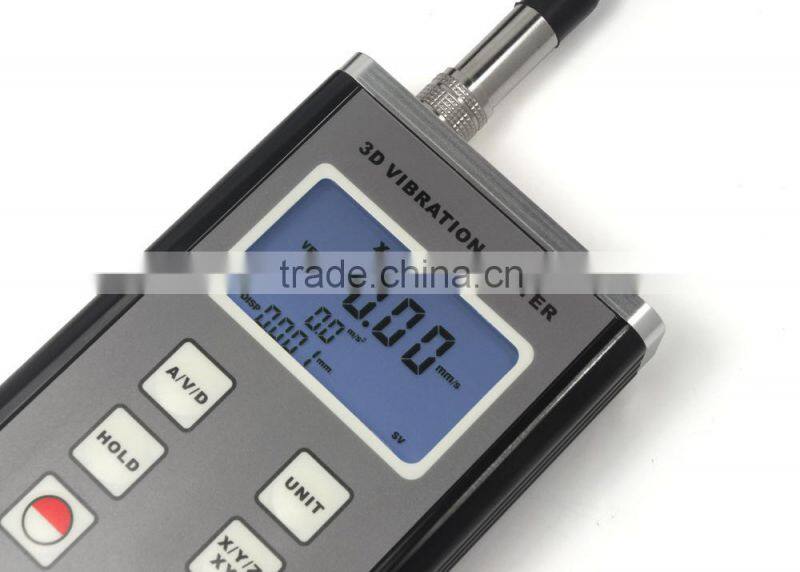

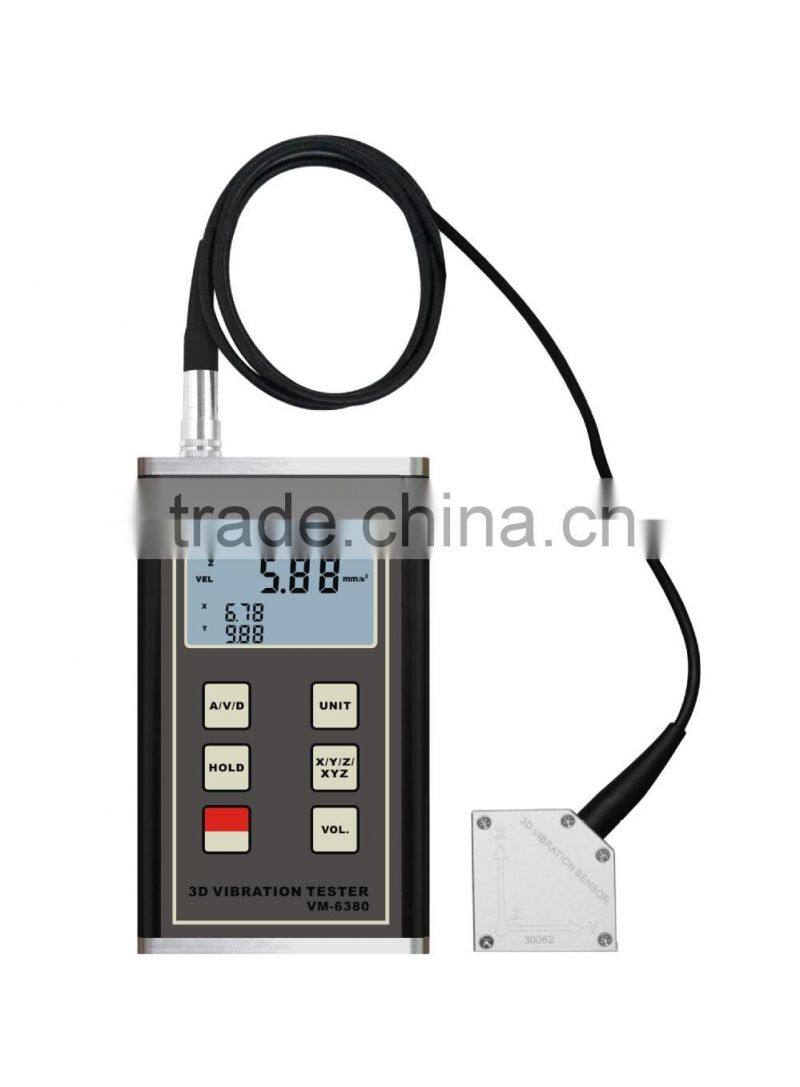

Help CenterNew 3 -Axis Vibration Meter VM-6380
US$ 300 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Landtek
Model Number:
VM-6380
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
Landtek
Model Number
VM-6380
Power
Electronic
Usage
Vibration Testing Machine
Applications:
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

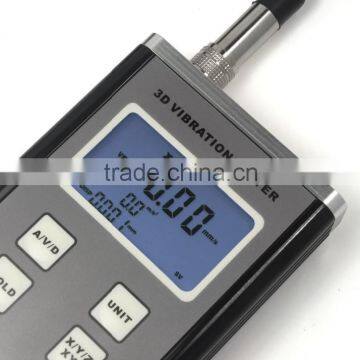

* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
| Sensor | 3-Axis Piezoelectric Accelerometer |
| Measuring Range | Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak |
| Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS | |
| Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak | |
| Frequency Range | Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz |
| Velocity: 10 Hz ~ 1k Hz | |
| Displacement: 10 Hz ~ 1k Hz | |
| Accuracy | 5 % of Reading + 2 digits |
| Metric / Imperial Conversion | |
| Analogue Output | AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) |
| Max. Value Hold | |
| Power Off | Manual Power Off or Auto Power Off |
| Battery Indicator | Low Battery Indicator |
| Data Output | USB, RS-232 |
| Operating Conditions | Temperature: 0~50 °C Humidity: <90 %RH |
| Power Supply | 2 x 1.5V AA size (UM-3) Battery |
| Dimensions | 130 x 76 x 32 mm |
| Weight | 340 g (Not Including Batteries) |

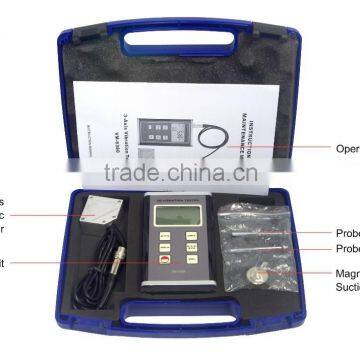

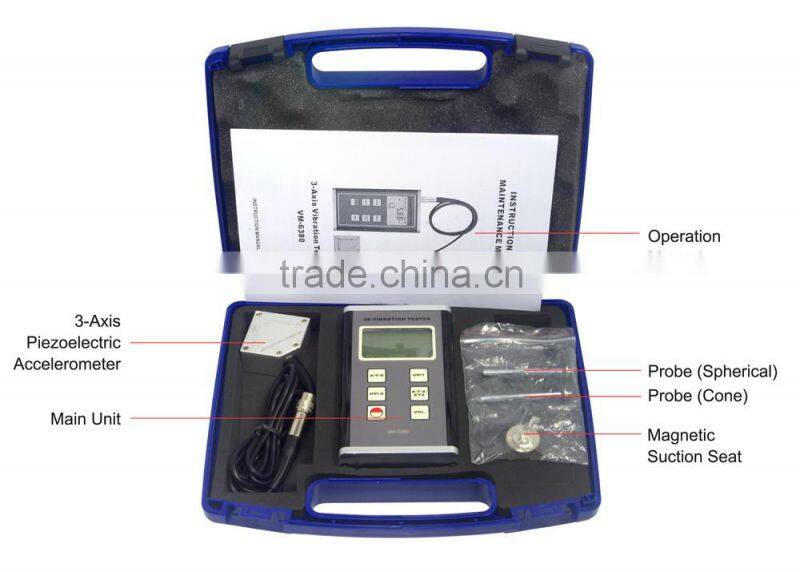

Standard Accessories:

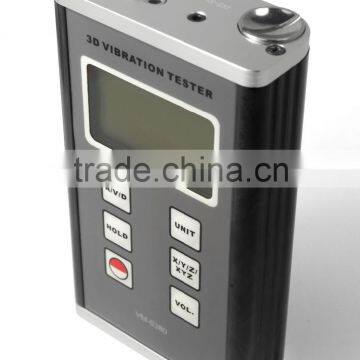

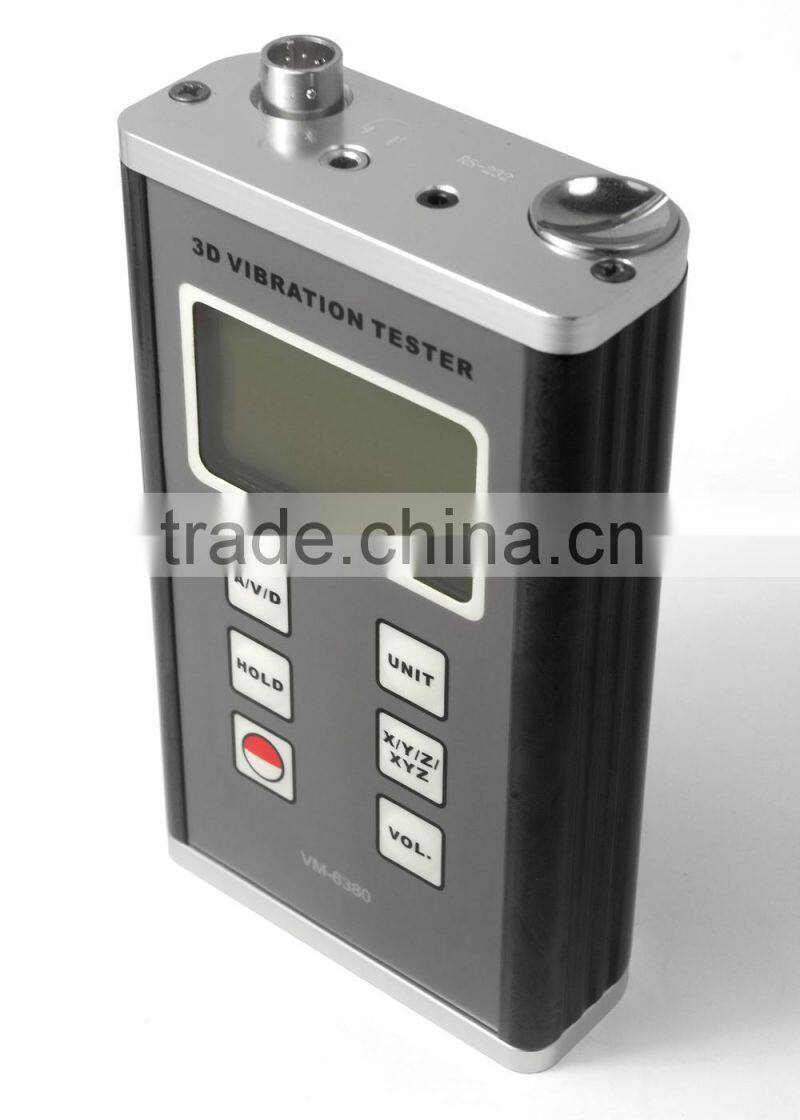

1. Main Unit
2. Magnetic Suction Seat

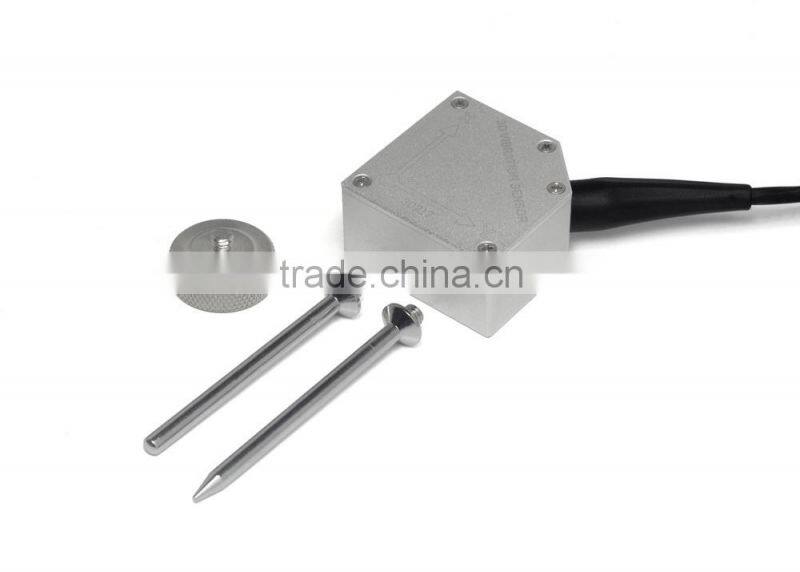

3. 3-Axis Piezoelectric Accelerometer
4. Probe (Cone)
5. Probe (Spherical)

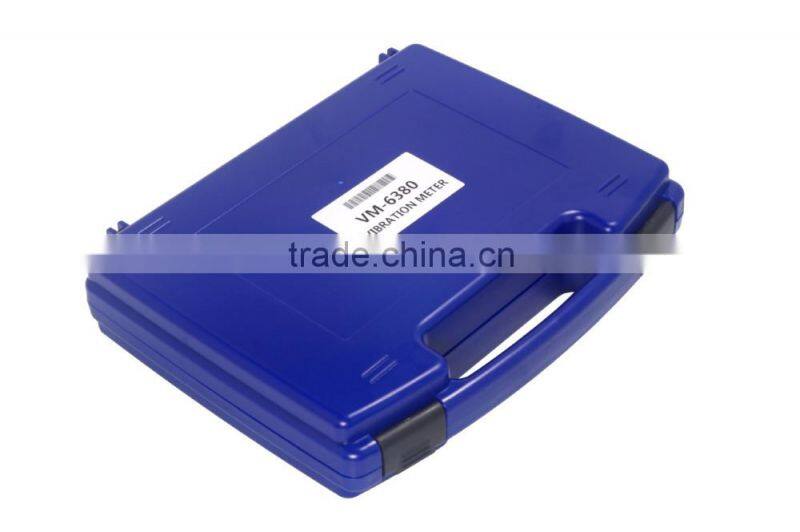

6. Carrying Case
7. Manual Book
Optional Accessories:
1. Headset
2. USB, RS-232 data cable with software
