Help CenterUltrasonic Thickness Gauge TM-8812
Related Products
-
Ultrasonic Thickness Meter TM-8811US$ 0.01 - 1MOQ: 1 Piece -
Ultrasonic Thickness Meter TM-8816US$ 0.01 - 1MOQ: 1 Piece
-
Ultrasonic Thickness Meter TM-8810US$ 0.01 - 1MOQ: 1 Piece
-
Ultrasonic Thickness Meter TM-8812US$ 0.01 - 1MOQ: 1 Piece
-
Ultrasonic Thickness Meter TM-8816CUS$ 0.01 - 1MOQ: 1 Piece
Applications:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
| Display | 4 Digit, 10 mm LCD |
| Operating Principle | Ultrasonic |
| Measuring Range (metric / Imperial) | 1.0~200 mm / 0.04~8 inch |
| Battery Indication | Low Battery Indication |
| Sound Velocity | 1000~9000 m/s |
| Lower Limit Steel Pipes | Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer |
| Calibration Block | Included |
| Resolution | 0.1 mm (TM-8812C 0.01 mm) |
| Accuracy | ± (0.5%n + 0.1) |
| Automatic memory material code and the value of sound velocity | |
| Power off | Auto Power off & Manual Power Off |
| Operating Conditions | Temperature: 0~40 °C, Humidity: < 85 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 120 x 62 x 30 mm |
| Weight | 164 g (Not Including Batteries) |

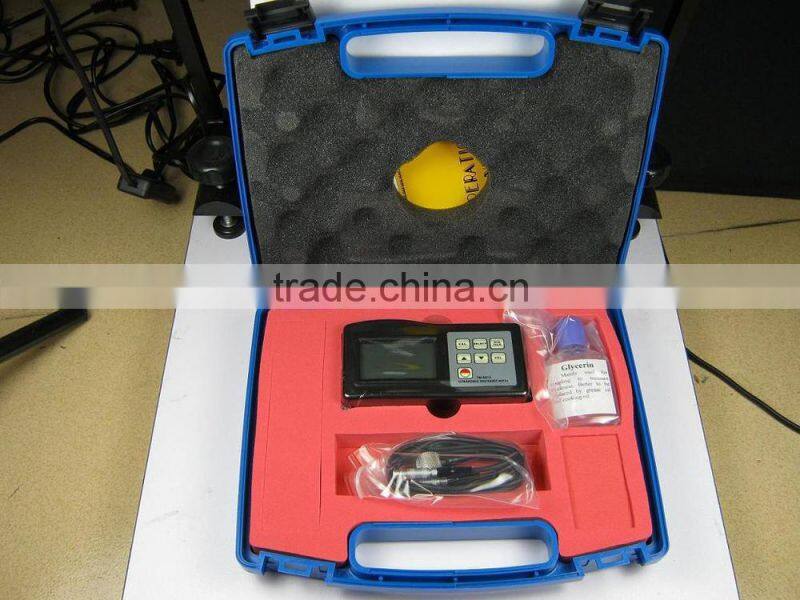

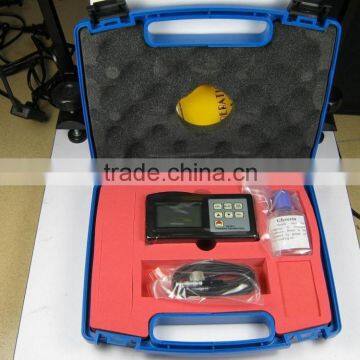

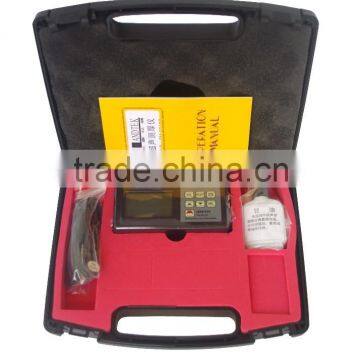

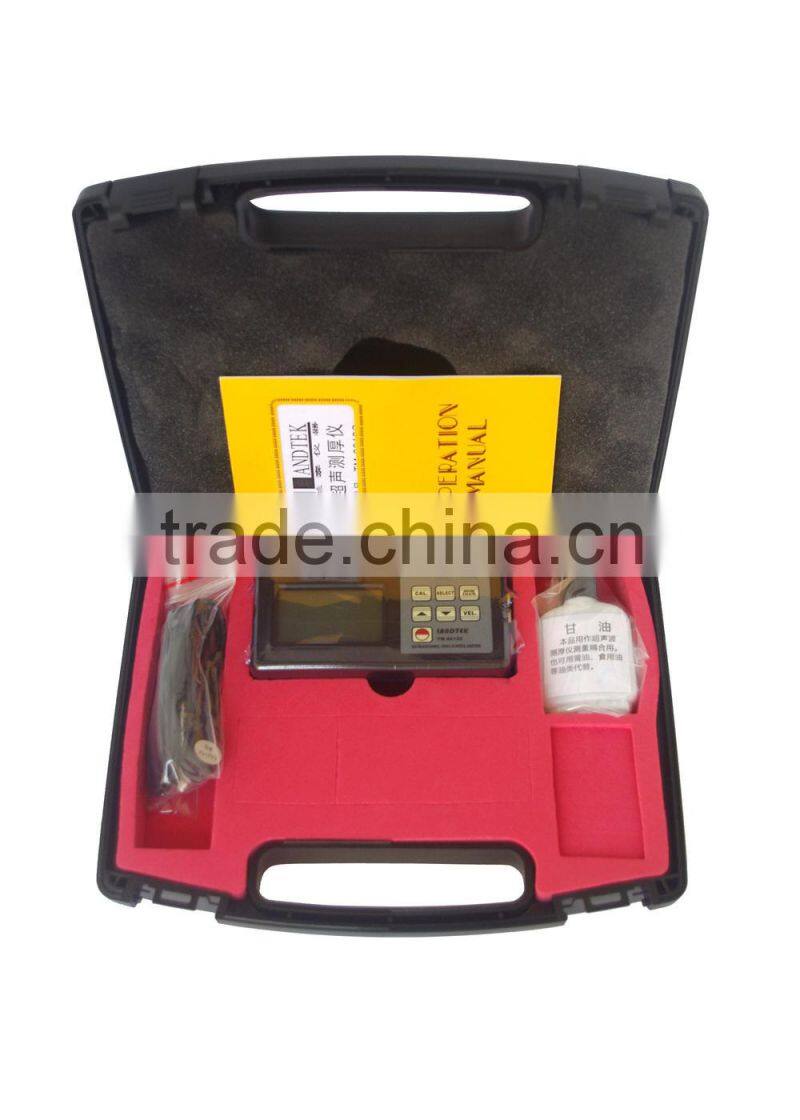

Standard Accessories:
1. Main Unit

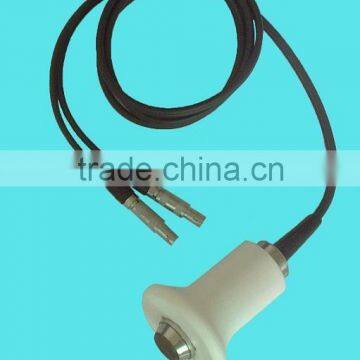

2. 5M 8 Standard Sensor
3. Coupling Agent

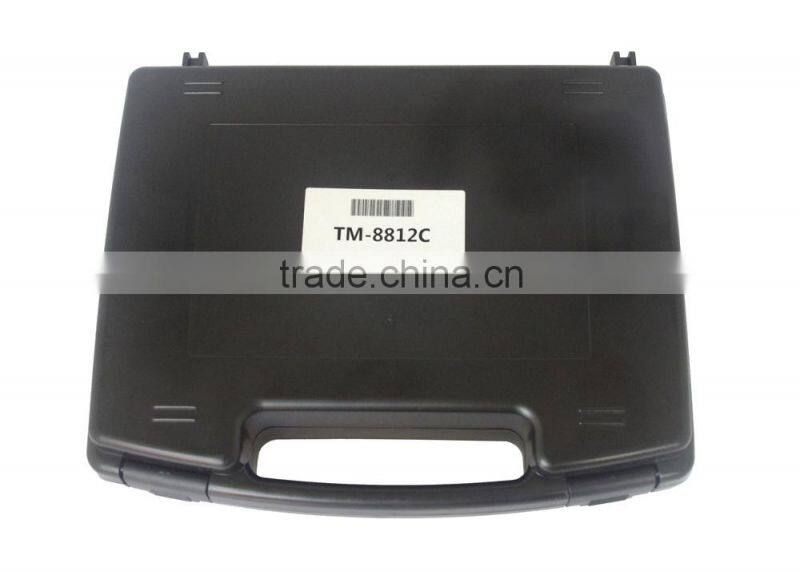

4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M 6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. Bluetooth data output with software
