LANDTEK Ultrasonic Thickness Gauge TM8810

LANDTEK Ultrasonic Thickness Gauge TM8810 thumbnail-1
LANDTEK Ultrasonic Thickness Gauge TM8810 thumbnail-2
LANDTEK Ultrasonic Thickness Gauge TM8810 thumbnail-3
LANDTEK Ultrasonic Thickness Gauge TM8810 thumbnail-4
LANDTEK Ultrasonic Thickness Gauge TM8810 photo-1
LANDTEK Ultrasonic Thickness Gauge TM8810 photo-2
LANDTEK Ultrasonic Thickness Gauge TM8810 photo-3
LANDTEK Ultrasonic Thickness Gauge TM8810 photo-4
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LANDTEK
Model Number:
TM8810
Contact Supplier Request Quote Chat Now
Guangzhou Landtek Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LANDTEK
Model Number TM8810

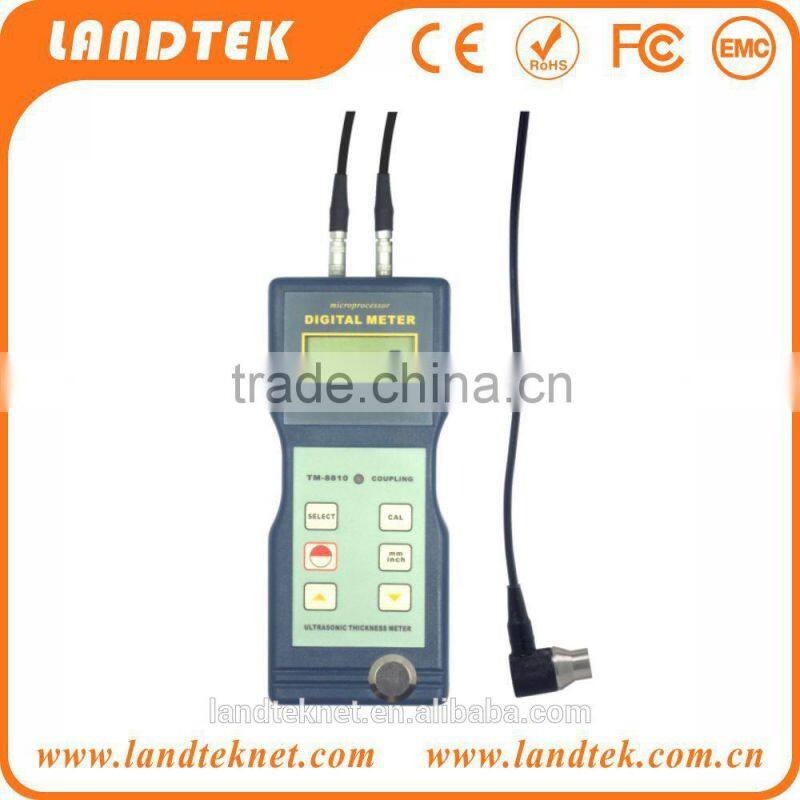

Ultrasonic Thickness Gauge TM-8810

 LANDTEK Ultrasonic Thickness Gauge TM8810

Product Description

 Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Automatic power off to conserve power.
* Digital display gives exact reading with no guessing or errors.
 Display   4 Digit, 10 mm LCD
  Operating Principle   Ultrasonic
  Measuring Range (metric / Imperial)   1.2~200 mm / 0.05~8 inch
  Battery Indication   Low Battery Indication
  Sound Velocity   1000~9000 m/s
  Lower Limit Steel Pipes   Determined By Transducer
  Calibration Block   Included
  Resolution   0.1 mm
  Accuracy   ± (0.5%n + 0.2)
  Operating Conditions   Temperature: 0~40 °C, Humidity: < 85 %RH
  Power Supply   4 x 1.5 V AA (UM-3) Battery
  Dimensions   160 x 68 x 32 mm (5.5 x 2.8 x 1.2 inch)
  Weight   About 208 g (Not Including Batteries)



Standard Accessories:

1. Main Unit

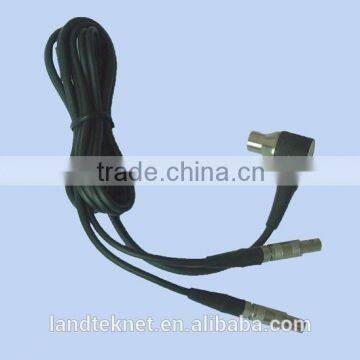

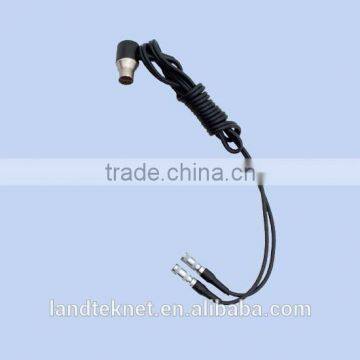

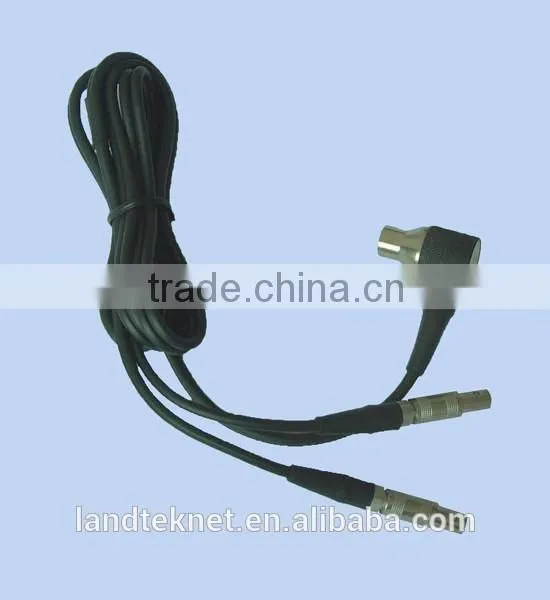

2. 5M/8 Standard Sensor

3. Coupling Agent

4. Carrying Case

5. Operating Manual

Optional Accessories:

1. 6M /  6 mm thin Material Probe: Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2. 5M /  12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3. Curved Surface Probe

Packaging & Shipping



1 unit is 1kg. carton size: 26*26*8.5cm
20pcs is 14.5kg. carton size: 45*28*57cm

ship by DHL, FEDEX , UPS, AIR, SEA



Our Services

 One year after service, supply service forever
