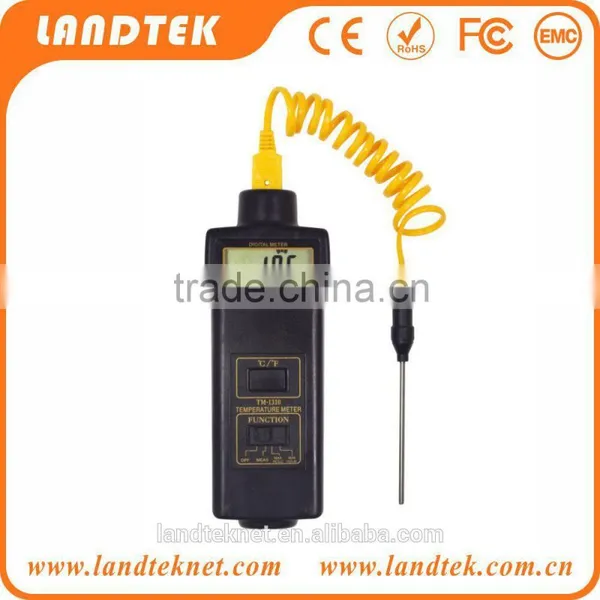

Applications:
Used to measure the temprature of liquids, gases, solids and surface temperature.
* Used the exclusive MICRO-COMPUTER LSI circuit and crystal time base to offer the high accuracy measurement & fast measuring time.
* Can match any standard type K (Ni Cr Ni Al) sensor. Fitted with standard K probe socket.
* With Celsius degree and Fahrenheit degree conversion.
* The Max. Value and Min. Value will be automatically stored in memory.
* Wide measuring range & high resolution.
* Digital display gives exact reading with no guessing or errors.
* LCD display allows clear read out even at bright places.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.
Measurement Range Specifications (Its measurement range is determined by the K type thermocouple selected):
| Model ( K Type ) | Name | Size ( Φ x L ) | Range |
| TP-02 | Thermocouple | Φ3 x 80 mm | -50 ~ 750 °C / -58 ~ 1382 °F |
| TP-03 | Flexible Thermocouple | Φ4 x 500 mm | -50 ~ 1100 °C / -58 ~ 2012 °F |
| TP-04 | Flexible Thermocouple | Φ6 x 500 mm | -50 ~ 1300 °C / -58 ~ 2372 °F |
| TP-202 | Surface Thermocouple | -50 ~ 800 °C / -58 ~ 1472 °F |
PS: 1. TP-02 is the standard configure.
2. The length of thermocouple is optional.
General Specifications:
| Display | 10 mm LCD |
| Accuracy | ± ( 3% n + 1 ) °C / ± ( 3% n + 1.8 ) °F |
| Resolution | 0.1 °C / °F ( Less than 1000 °C / °F ) |
| 1 °C / °F ( More than 1000 °C / °F ) | |
| Way Displayed | Celsius Degree and Fahrenheit Degree |
| Operating Conditions | Temperature: 0 ~ 50 °C / 32 ~ 122 °F Humidity: < 85 %RH |
| Power Supply | 4 x 1.5 V AA Size (UM-3) Battery |
| Dimensions | 178 x 68 x 39 mm |
| Weight | 190 g ( Not Including Batteries ) |
Standard Accessories:
1. Main Unit
2. TP-02 Thermocouple

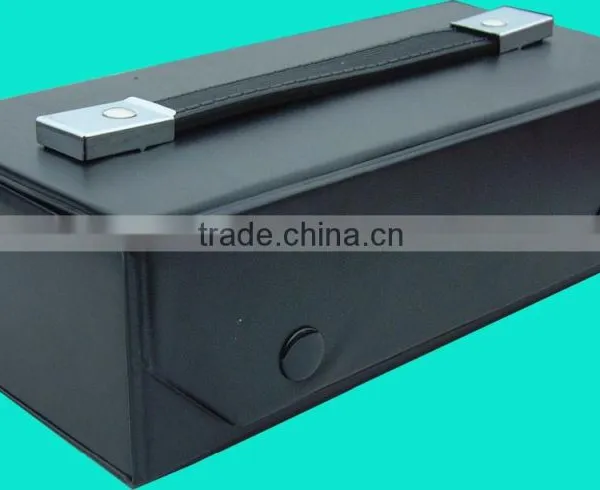

3. Carrying Case
4. Operation Manual
Optional Accessories:
1. TP-03, TP-04, TP-202 Thermocouple
