Home > Products > coating thickness gauge > Integral Type Coating Thickness Gauge CM-8855 0~1250 um / 0~50 mil

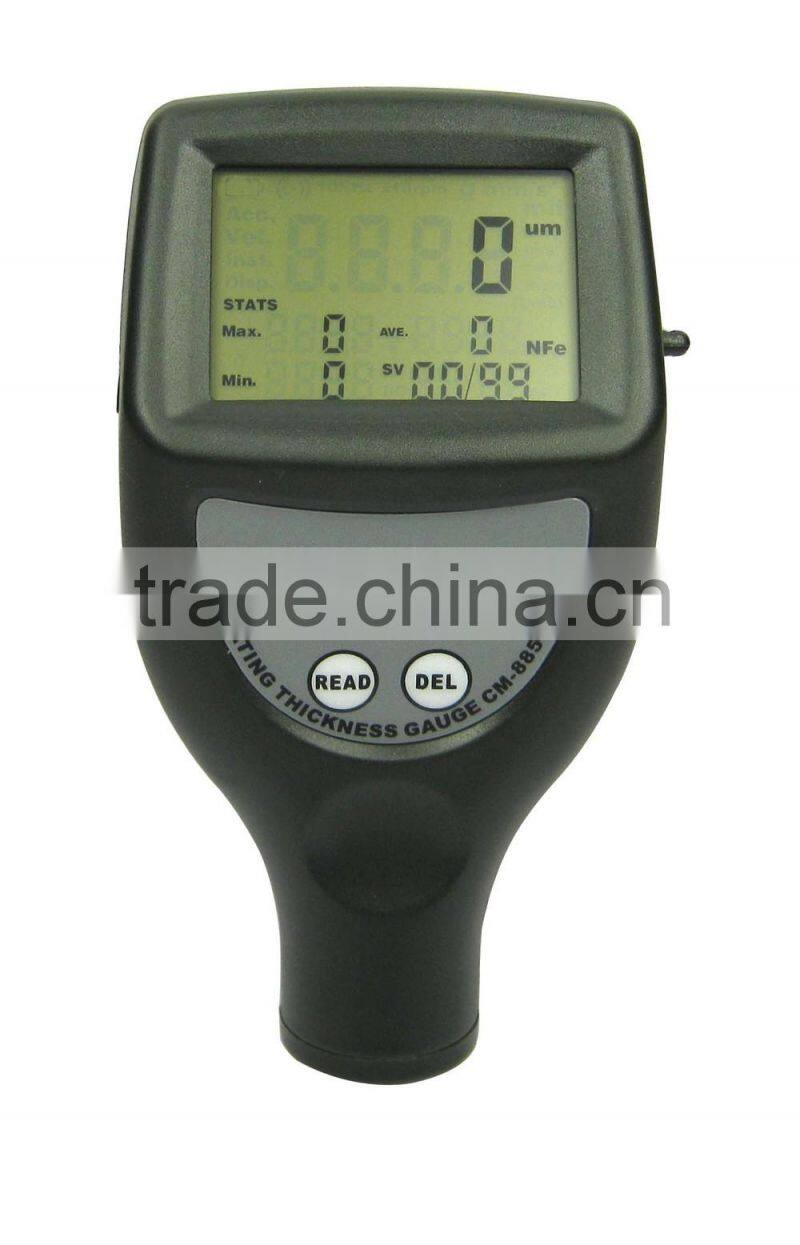

Integral Type Coating Thickness Gauge CM-8855 0~1250 um / 0~50 mil
- 1000 Piece / Pieces per Month
- Guangzhou
- Credit Card
- Coating Thickness Gauge CM-8829H with high measuring range 0~7000um
- Digital Car Paint Tester CM-8828 With Built-in Probe
- High Accuracy Coating Thickness Gauge CM-8826FN (F/NF type)
- Portable Tin Coating Thickness Gauge CM-8825FN
- Auto Paint Thckness Gauge CM-8828
- F&NF Type Coating Thickness Gauge CM-1210B 0~2000 um / 0~80 mil
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Landtek | Model Number: | CM-8855 |
Power: | Electronic | Usage: | Other, coating thickness testing gauge |
Product Description
Applications:
The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability,
users can get continuous, good repetitive and precise measurements.
Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
Measuring Range | 0~1250 um / 0~50 mil |
Resolution | 0.1 um / 1 um |
Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
Min. Measuring Area | 6 mm |
Min. Sample Thickness | 0.3 mm |
Accuracy | ± 1~3%n or ± 2.5 um |
Auto Power Off | |
Metric / Imperial | Convertible |
Battery Indicator | Low Battery Indicator |
Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
Power Supply | 2 x 1.5 V AAA (UM-4) Battery |
Dimensions | 126 x 65 x 35 mm |
Weight | 81 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. Calibration Base Set (F Type / NF Type) CTG-BS
3. Calibration Foils CTG-CF (1 set, 4 pieces)

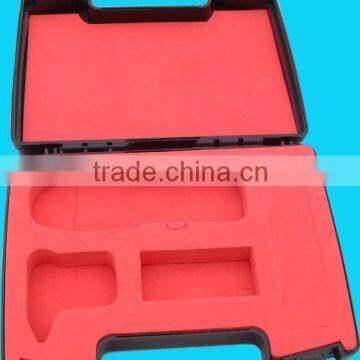

4. Carrying Case
5. Operation Manual
Optional accessories:

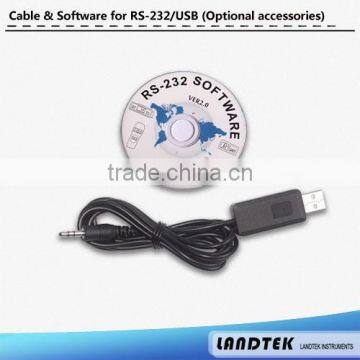

2. Bluetooth data out put with software
