Dual-axis Land Survey Total Station

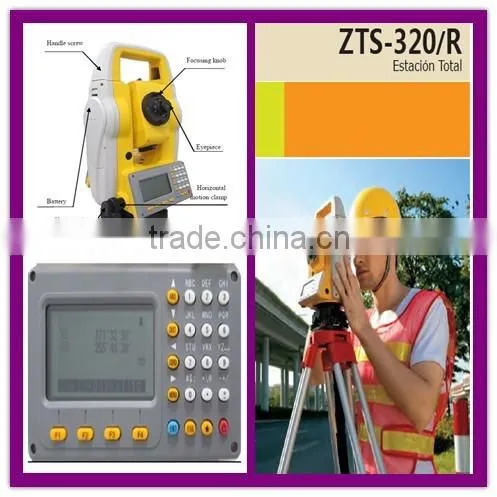

Dual-axis Land Survey Total Station thumbnail-1
Dual-axis Land Survey Total Station photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
7 inch
Contact Supplier Request Quote Chat Now
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHONGQING
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size 7 inch
Place of Origin Chongqing, China
Brand Name GOLD
Model Number ZTS Total Station
Warranty 12 Months

                                                                       Dual-axis Land Survey  Total Station

Application:



1. Mineral survey, exploration and excavation;
2. Construction of railways, highways, Bridges;
3. Irrigation and water conservancy, urban planning and construction;
4. The battlefield preparation, harbor, fortress, airports and military engineering construction;
5. Precision positioning and installation in shipbuilding and aerospace industry ;
6. The three-dimensional coordinates, the location of measurement, pipeline orientation, cross section measurement of the stuctures;
7. The triangle control survey, topographic survey, cadastral and property measurement



Technical Specification:



Angle measurement (Hz,V)



Detecting system——Absolute encoder



Minimum display——1″/5″/10″(selectable)



Accuracy——2″



Telescope



Magnification——30X



Field of view——1°30′



Minimum focus distance——1.5m



Image——Erect



Compensation



System——Dual-axis



Range——±3′



Resolving power——1″



Distance measurement (IR)



Single prism (good condition)——3000m



Reflective sheet——800m



Accuracy——2mm±2ppm



Measuring time (Repete/Tracking)——1s/0.5s



Reflectorless (RL)



Range (white board reflectivity 90%)——600m



Single prism——>7500m



Accuracy——3mm±2ppm



Measuring time——1.5s



Communication



Internal memory——20000 points (SD card supported)



Interface——RS232, Mini-USB, USB



Data format——ASCII



Operation



Operation system——Real-time operation system



Display——192×96 high-light LED screen, brightness adjustable in 3 level



Keyboard——2 sides alphanumeric backlit crystal keyboard



Laser plummet



Type——Laser point, 4 brightness levels adjustable (Optical plummet is optional)



Accuracy——1mm at 1.5m instrument height



Environmental



meteorological parameter modification——Manually(T-P senser is optional)



Operation temperature——-20℃_+50℃



Storage temperature——-40℃_+70℃



Dust & Water proof——IP66



Power supply



Battery type——BT30 Li-ion battery



Voltage/Capacity——7.4V 3400mAh



Operating time——18 hours(continuous angle measurement every 30 seconds)



Measuring times——Approx. 12000 times



Weight



Weight——3.8kg with battery



Characters



Zenith point measurement without removing the handle



Shortcut measurement key on the side, convenient for surveying



Small and light



Key define



Intelligent checking
