Main Application:
Using different parameters, JGS-1B can processing:
Coal field digital integrated logging.
Hydro-logical engineering digital integrated logging.
Solid metal ore digital integrated logging.
Other minerals digital integrated logging, etc.
Main Features:
External laptop (Desktop PC)
For upward logging, also for downward logging
Receive digital signal, analog signal
8 taps of power supply current, optional
Automatic sampling as per depth interval, sampling interval arbitrarily
Indoor simulation logging, repeatability observation of instruments and probes
Technical Specification:
12bit A/D conversion, program-controlled magnification K=0.5~128
Counting channel: f≤500KHz
Digital signal transmission frequency: 9600bit/s
Power supply cycle: 400ms
Current: 2mA~50mA optional
Signal input range: ≤±10V
Continuous working time: ≤24h
Power consumption: <200W
Volume: 420*260*210mm
Weight: <7kg
Working temperature range: -10℃~50℃
Working power supply: AC220V±10% 50HZ±5%
Logging speed: 0-30m/min adjustable (as per sampling interval)
System component:
Main instrument and software
Winch Controller

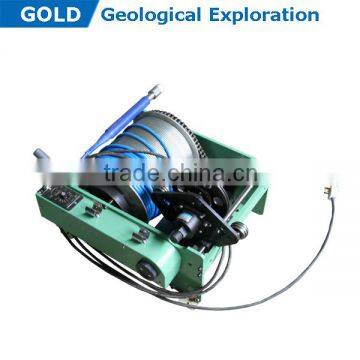

Winch and cable
Well logging probes

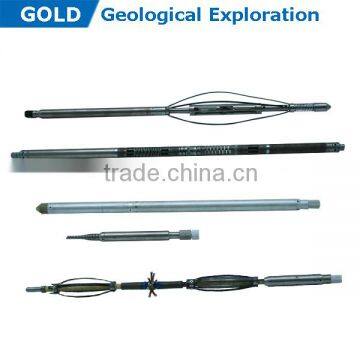

Probes information:
No. | Probe Name | Usage |
1 | M552 combined sidewall probe | Double-spaced compensated density (DsCD),Natural gamma, three direction laterolog,caliper and spontaneous potential |
2 | M451 combined density probe | Double-spaced compensated density,natural gamma, three direction laterolog and spontaneous potential. |
3 | S524-1S combined acoustic wave probe | SP sound velocity, acoustic amplitude. |
4 | CZ521 combined natural gamma probe | Magnetic locator, natural gamma. |
5 | W422 temperature & liquid resistivity combined probe | Well temperature, liquid resistivity. |
6 | CX3019 SP, inclination, natural gamma combined probe | SP, inclination, natural gamma |
7 | JSC-1 digital inclination probe | Inclination |
8 | H411 magnetic susceptibility probe | Seeking for magnetic iron ores |
9 | X411 three-lateral direction resistivity laterolog probe | Determines the resistivity of rock strata |
10 | J411 caliper probe | Check the integrity of well and provide additional information. |
11 | LLY-1 flow probe | Liquid flow |
12 | R411 natural gamma probe | Natural gamma |
13 | JD-1 conventional resistivity log probe | SP, NR and LR |
14 | JD-3 Soft-electrode probe | SP, NR, LR and IP |
Any queation please feel free to contact:
