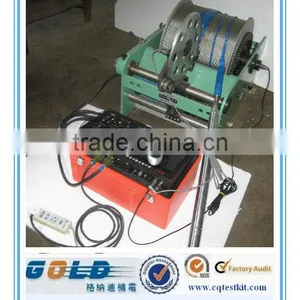

30, 300m, 3000m Bore Hole Logger JGS Bore Hole Logging

30, 300m, 3000m Bore Hole Logger JGS Bore Hole Logging thumbnail-1
30, 300m, 3000m Bore Hole Logger JGS Bore Hole Logging photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Gold
Model Number:
Bore Hole Logger JGS Bore Hole Logging
Contact Supplier Request Quote Chat Now
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Gold
Model Number Bore Hole Logger JGS Bore Hole Logging



                                            Bore Hole Logger JGS Bore Hole Logging

Main Applications:

1. Coal Field Digital Integrated Logging

2. Hydrological Engineering Digital Integrated Logging

3. Solid Metal Ore Digital Integrated Logging

4. Other Minerals Digital Integrated Logging





System component:



1. Main instrument and software

2. Winch and cable

3. Well logging probes





Features:



1. External Laptop (Desktop PC)

2. For upward logging, also for downward logging

3. Receive digital signal, analog signal

4. 8 taps of power supply current, Optional

5. Automatic sampling as per depth interval, sampling interval arbitrarily

6. Indoor simulation logging, repeatability observation of instruments and probes

7. Membrane panel, attractive and durable





Technical Specification





1. 12bit A/D Conversion, Program-Controlled Magnification K=0.5~128

2. Counting Channel: f≤500KHz

3. Digital Signal Transmission Frequency: 9600bit/s

4. Power Supply Cycle: 400ms

5. Current: 2mA~500 mA Optional

6. Signal Input Range: ≤±10V

7. Continuous Working Time: ≤24 hr

8. Power Consumption: <200W

9. Volume: 420×260×210mm,

10. Weight: <7Kg

11. Working Temperature Range: -10°C~ +50°C

12. Working Power Supply: AC220V±10% 50Hz ±5%

13. Logging Speed: 0~30 m/min Adjustable (as per sampling interval)
