WSD-2A Geological Digital Sonic Instrument for Engineering

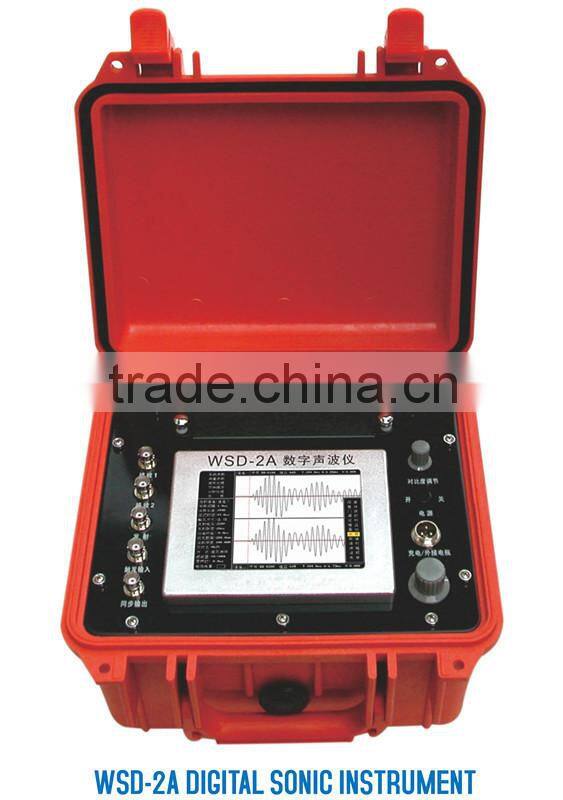

WSD-2A Digital Sonic Instrument

Application:

Primarily applied for detecting concrete, rock and core sample, and nonmetallic material such as porcelain, graphite by sound or supersonic wave nondestructive detecting.

It can be used for intensity detection, intrinsic defect detection, fissure detection, interface quality and rupture thickness detection, equality detection, framework thickness detection, pile foundation inspection, sonic logging and material elastic parameter detection and other applications.

Technical Specifications:

(1)  Receiving channel

Two channels

A/D bit:  12    Sampling interval:0.1μs~3276.7μs   Sampling length: 1k, 2k, 4k

Burst mode: single, continuous, signal, outside

Burst level:10%,20%...70% FRS

Band width: 10Hz~5KHz, 10Hz~500KHz, 10KHz~500KHz

Sonic time difference range: 0~32767*t (t is sample interval)

Sonic time difference precision: ± 0.1μs

Sonic amplitude range: -20dB~84dB Sonic amplitude precision: 1.0%

(2)  Transmission channel

One channel

Transmission voltage: 100V, 250V, 500V, 750V, 1000V

Transmission width: 1μs~500μs

(3)  System configuration

Host computer: P ^Ⅲ 400MHz industrial control PC Flash Disk: 128M

Display: 640*480 LCD (with back light)

General port: USB , RS-232 serial port , mouse port , keyboard port
