Specifications
heat shrinkable busbar tube1.High Dielectric Strength
2.Switchgear and Busbar high insulation
3.durable
Heat shrinkable busbar tube:
Product Usage:
MPG35 series is widely used in 36KV power distribution system to protect the copper or allumin busbar, wire insulation and keep the the pipe metal from rusting and corrosion.
Product Properties:
1.High flame retardant: oxygen index greater than 30
2.Excellent heat resistance: long-term and stable operation under 105 centigrade degree
3.Low temperature resistance: not brittle crack under -55 centigrade degree
4.Good flexibility: adapt to complex busbar shape and easy to install
5.Good insulation: narrow the distance between interphase and to ground, meet the busbar's insulation requirment
6.High security: prevent the short circuit caused by animals or casually accident by personal contact.
Product specification:
Specification |
Model |
Applicable Busbar Width(mm) |
Inner Diameter after Shrinkage (mm) |
Packaging |
mm/pcs | ||||
φ30 |
MPG35-30/12 |
30~40 |
<12 |
1000 |
φ40 |
MPG35-40/16 |
40~50 |
<16 |
1000 |
φ50 |
MPG35-50/20 |
50~60 |
<20 |
1000 |
φ65 |
MPG35-65/25 |
60~70 |
<25 |
1000 |
φ75 |
MPG35-75/30 |
80~90 |
<30 |
1000 |
φ85 |
MPG35-85/35 |
90~100 |
<35 |
1000 |
φ100 |
MPG35-100/40 |
120 |
<40 |
1000 |
φ120 |
MPG35-120/50 |
140 |
<50 |
1000 |
φ150 |
MPG35-150/60 |
180 |
<60 |
1000 |
φ180 |
MPG35-180/70 |
210 |
<70 |
1000 |
φ200 |
MPG35-200/70 |
240 |
<70 |
1000 |
Notes: Other specifications can be offered as requested. | ||||
Technical data sheet :

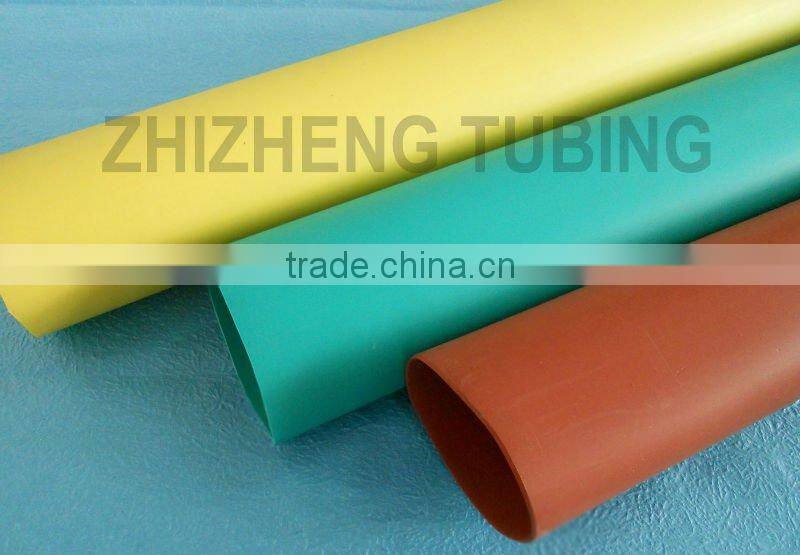

Picture of heat shrinkable busbar tube:

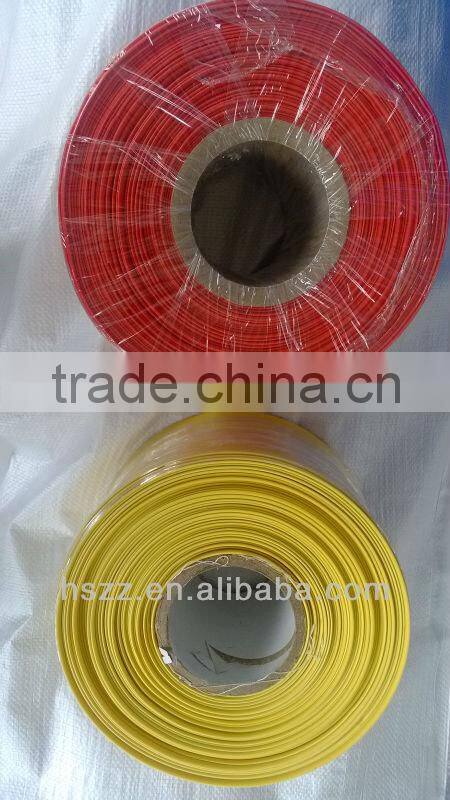

Packages of heat shrinkable busbar tube:
