Pipe Heat Shrink Sleeve for Busbar Protection

Specifications

Detailed description of products

• Commodity:    pipe heat shrink sleeve for busbar protection
• Features:

 High flame retardant: oxygen index greater than 30

 Excellent heat resistance: long-term and stable operation under 105 centigrade degree

 Low temperature resistance: not brittle crack under -55 centigrade degree

 Good insulation: narrow the distance between interphase and to ground, meet the busbar's      insulation requirment

 Good flexibility: adapt to complex busbar shape and easy to install

 Easy phase separation: have different colors

 High security: prevent the short circuit caused by small animals and casualty accident caused by personal contact

• Performance Index:

• Specification:

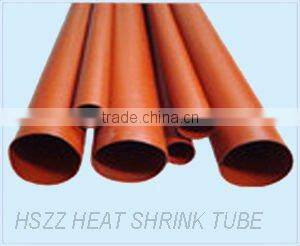

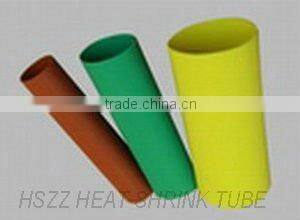

• Pictures:

Packaging and shipping:

Packaging: 200m/roll, 100m/roll, 50m/roll, 1.22m/roll etc. (Can be packed or cutted as request)

Shipping:By express(Samples), by air, by sea(Large volume)

Our Services:

1.Payment Terms:T/T transfer, Paypal, Western Union.

2.Delivery time: 10-15 days upon quantity.

3. Samples could be offered free withn 1-5 meters, but the express charge is on the customer’s side.

Company Information:

We are manufactuer of heat shrink tubes for more than 15 years. Our products are widely exported to Asia, North America and Europe etc. We promise to supply you our products in great quality and competitive price.

FAQS:

Things needs to be confirmed before quotation:

1. What type of the heat shrink tube do you need?

1.) Single wall flame retardant heat shrink tube  2.)Adhesive lined double wall heat shrink tube 3.)1KV/11KV/36KV Busbar protection heat shrink tube 4.) Medium wall heat shrink tubes (You can visit our product catergories in our website on alibaba.)

2. What size (inner diameter of the tube)?

Look at the Specification chart.

3. What Color?

Color available: black,white,red,yellow,green,blue, more colors available upon request

4.Shrink ratio?

2:1, 3:1, 4:1
