Jinan Pre-stretch System Box Wrapping Machine

Jinan Pre-stretch System Box Wrapping Machine photo-1
Jinan Pre-stretch System Box Wrapping Machine photo-2
Jinan Pre-stretch System Box Wrapping Machine photo-3
Jinan Pre-stretch System Box Wrapping Machine photo-4
US$ 5,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Medical, Textiles
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Medical, Textiles
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V,50HZ,1phase
Power 1.5KW
Place of Origin Shandong, China
Brand Name Shunyi
Model Number T1650FZ-PL
Dimension(L*W*H) 2745*1650*2863mm
Weight 700kgs
Certification ISO9001,SGS,CE
After-sales Service Provided Engineers available to service machinery overseas



Product Description

 Box wrapping machine

T1650FZ-PL

Jinan pre-stretch system box wrapping machine



Jinan pre-stretch system box wrapping machine



1. Full-automatic model, Human-computer interface with touch screen; PLC easy operation

control; Pre-stretch system up to 300% of the film length (customized); Auto cut & grab

film after wrap finished.



2. Stable performance, working life 10 years, quality guarantee 2 years.



3. European standard design and manufacture, same quality, but Chinese market

price; pass CE certificate.



4. Accept customer’s design order, satisfy customer’s different requirements, and install weighting unit ect.



5. Widely used in glass products, hardware tool, electric product, paper, ceramic,

chemical, food, beverage, building material and so on.



6. Improve logistic efficiency, reduce goods loss during transporting, has waterproof, dustproof, reduce product cost, improve packaging grade.





Model

T1650FZ-PL Full-automatic film wrapping machine

Wrapping product size

L(500-1200) mm × W(500-1200)mm

Wrapping height

L type:1800mm  H type:2400mm  Y type:2800mm

Packing efficiency

20-40 pallet/h

Rotary speed

0~12rpm rotary speed, adjustable

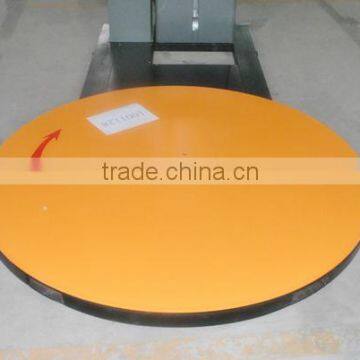

Turntable diameter

1650mm

Turntable height

78mm

Turntable weight capacity

2000kgs

Film carriage system

Pre-stretch film carriage, pre-stretch up to 250%,

automatic transport film

Up and down upright

Double chain structure, adjustable up and down speed by

transducer

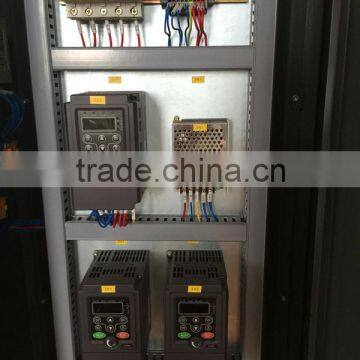

Control system

PLC intelligent control, steady start and stop;

bottom packing quantity,up and down packing quantity 1-20 adjustable, turntable automatic re-back, automatic sensor packing height

Pneumatic system work voltage

0.6~0.8Mpa 1000ml/min

Machine weight

700kg

Machine size

2745mm×1650mm × (2260-3260) mm

Electric

Single phase AC220V/50Hz/1.5KW

Power

Turntable 0.75kw, film carriage 0.4kw, upright 0.37kw



 Jinan pre-stretch system box wrapping machine



Jinan pre-stretch system box wrapping machine

Our Services

Jinan pre-stretch system box wrapping machine

Company Information

 Jinan pre-stretch system box wrapping machineJinan pre-stretch system box wrapping machine

FAQ

 Jinan pre-stretch system box wrapping machine

1. What about your wrapping machine quality?

Our factory has 16 years experience in packing machine; already get ISO9001, SGS

certificate, CE certificate; already exported into many countries and areas; already got

customer’s good reputation.



2. What about your wrapping machine price?

Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!



3. What about your company service for wrapping machine?

Guarantee is one year, we will supply spare parts or send engineers to your side free,

we will give you service anytime, 24 hours, 7days.
