Factory Stretch Film Pallet Wrapping Machine

Factory Stretch Film Pallet Wrapping Machine photo-1
Factory Stretch Film Pallet Wrapping Machine photo-2

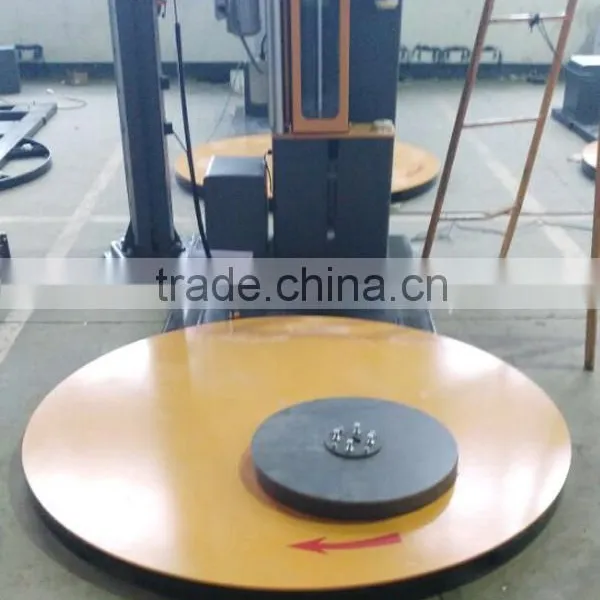

Factory Stretch Film Pallet Wrapping Machine photo-3

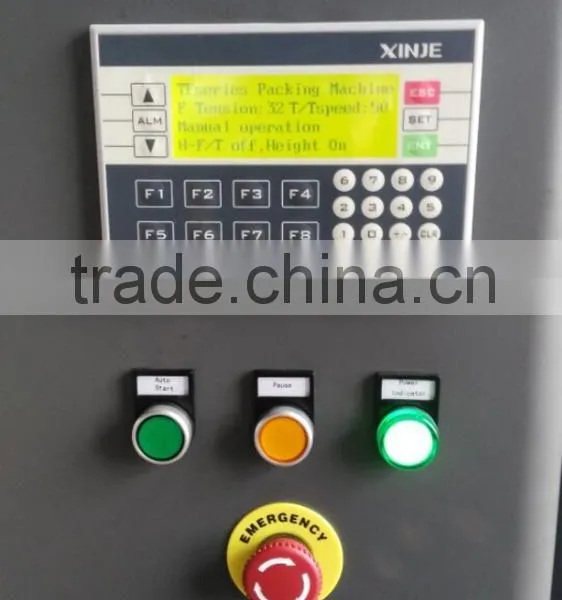

Factory Stretch Film Pallet Wrapping Machine photo-4

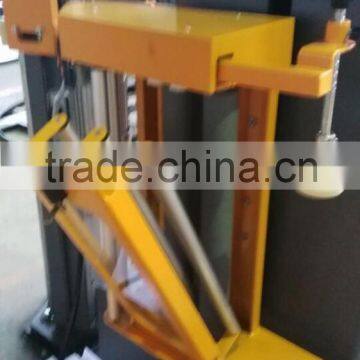

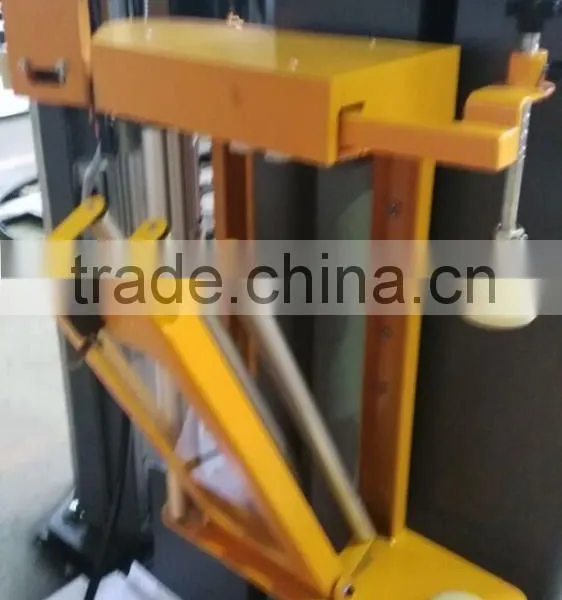

Factory Stretch Film Pallet Wrapping Machine photo-5

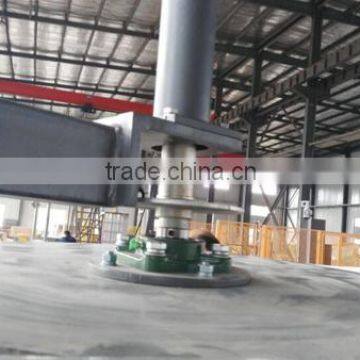

Factory Stretch Film Pallet Wrapping Machine photo-6
US$ 2,500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Other, Textiles, Commodity, Machinery & Hardware, Textiles
Packaging Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity, Other, Textiles, Commodity, Machinery & Hardware, Textiles
Packaging Type Other
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V 50HZ 1PHASE
Power 1.8KW
Place of Origin Shandong, China
Brand Name Shunyi
Model Number T1650F-CS
Dimension(L*W*H) 2745*1650*2863m
Weight 600kgs
Certification ISO9001,CE,SGS
After-sales Service Provided Engineers available to service machinery overseas
Product Description

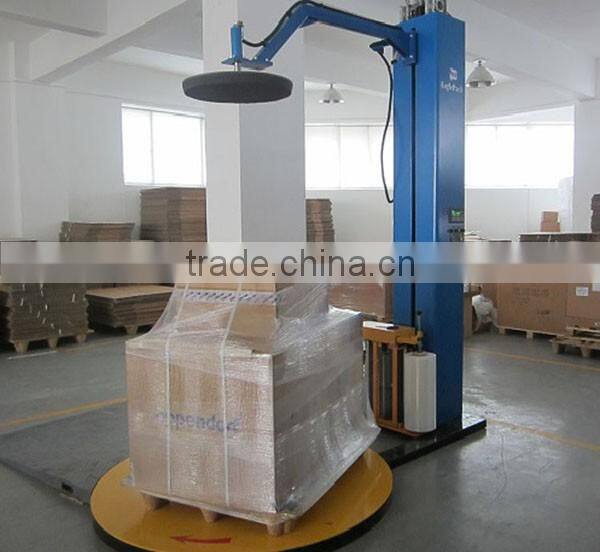

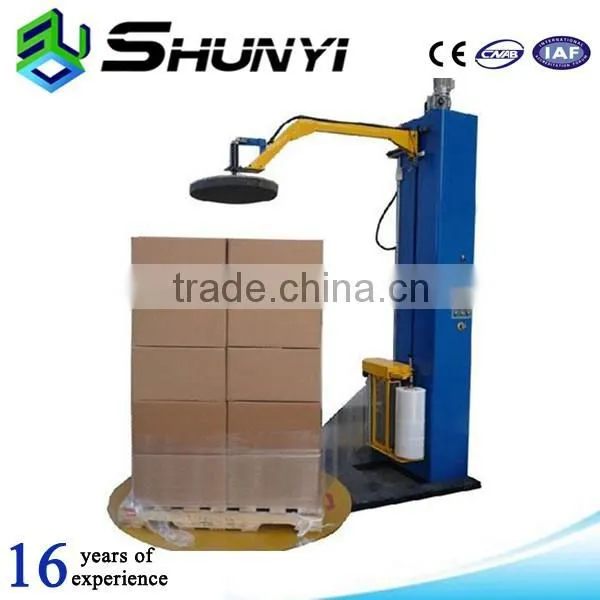

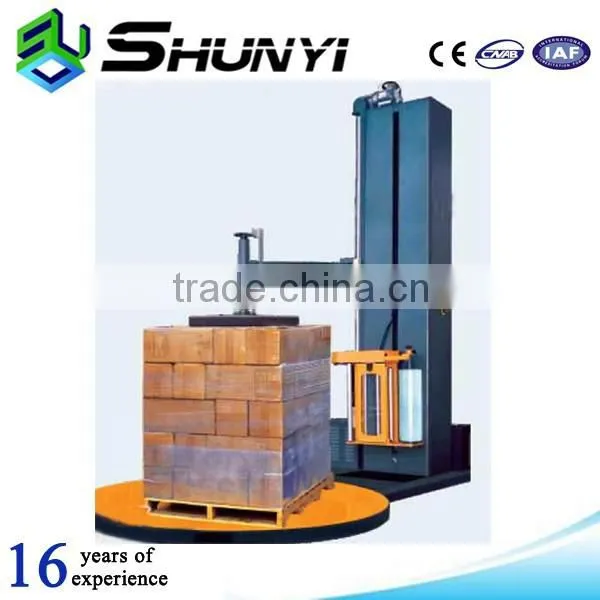

T1650F-CS Automatic pre-stretch top platen film wrapping machine
Wrapping product size
L(500-1200) mm × W(500-1200)mm
Wrapping height
according to customer’s requirement
Packing efficiency
20-40 pallet/h
Rotary speed
0~12rpm turntable transducer adjustable, turntable automatic re-back

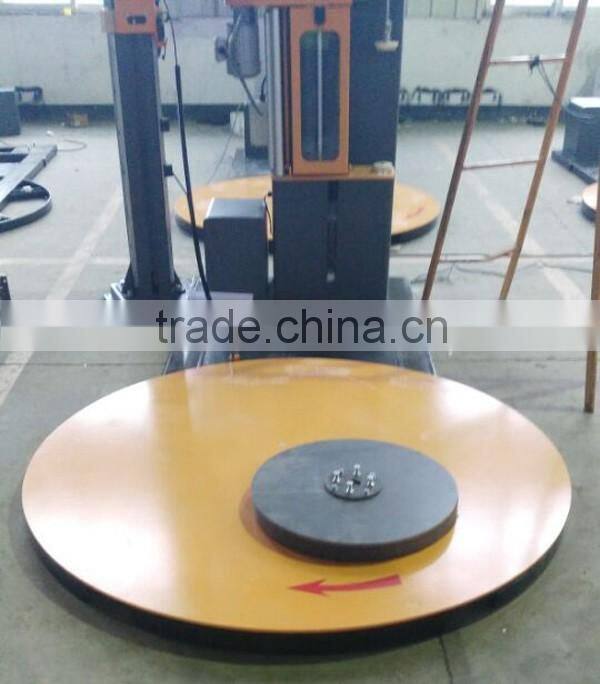

Turntable size
Dia:1650mm Height:85mm
Turntable weight capacity
2000kgs

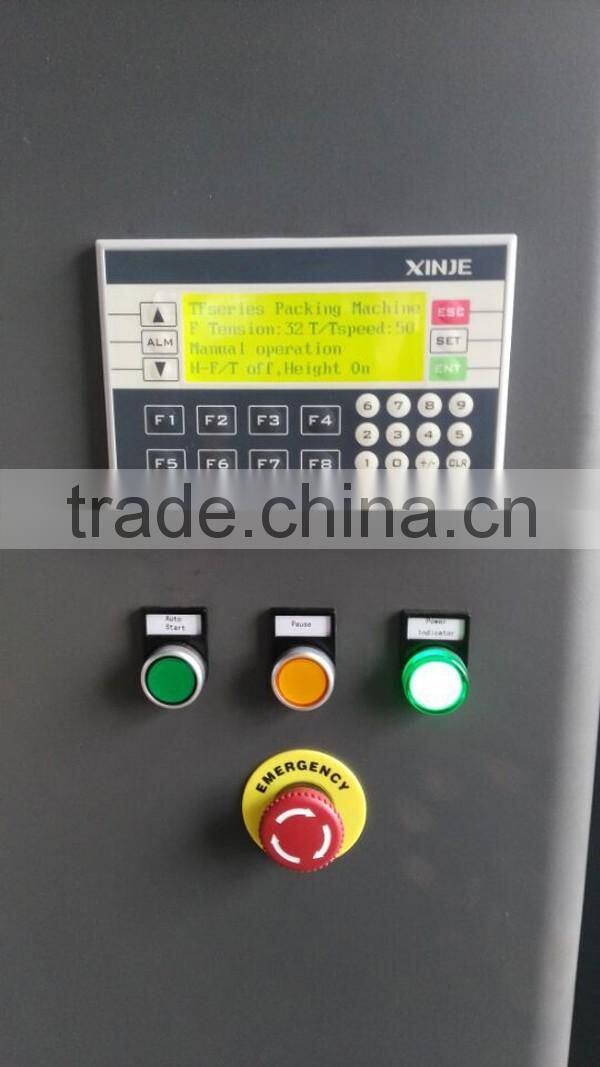

Control system
PLC programmable
Work voltage pneumatic system
0.6~0.8Mpa 1000ml/min
Machine weight
700kg
Machine size
2745mm×1650mm × (2260-3260) mm
Electric
Single phase AC220V/50Hz/1.5KW
Power
Turntable 0.75kw, film carriage 0.4kw, upright 0.37kw

Factory stretch film pallet wrapping machine

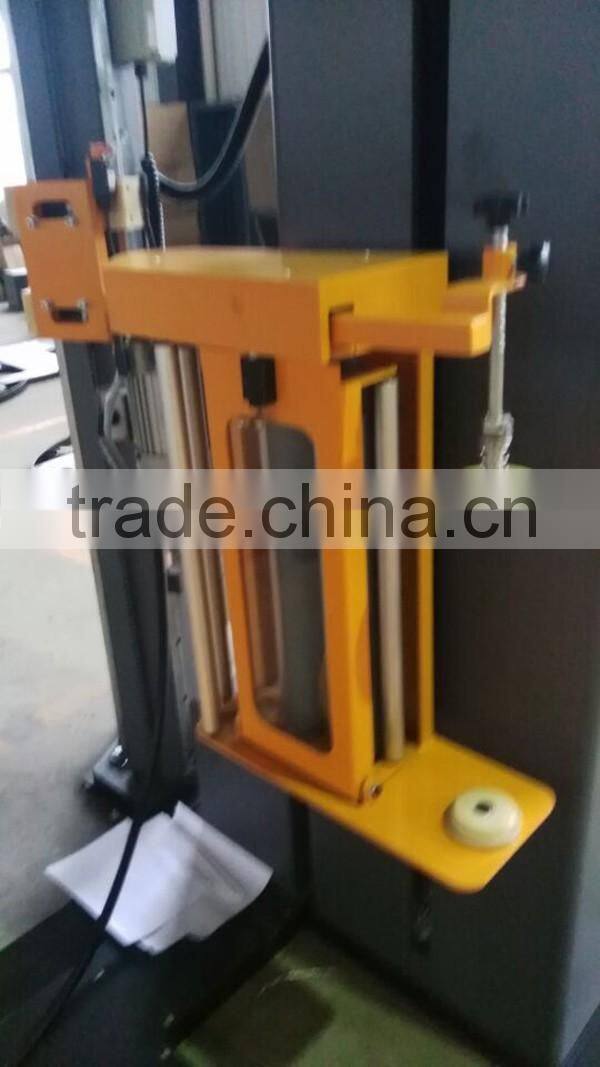

1. Special install top platen unit to suit tall and light goods packing; PLC easy operation control; Pre-stretch system up

to 300% of the film length (customized).
2. Stable performance, working life 10 years, quality guarantee 2 years.
3. European standard design and manufacture, same quality, but Chinese market price; pass CE certificate.
4. Accept customer’s design order, satisfy customer’s different requirements, and install weighting unit ect.
5. Widely used in glass products, hardware tool, electric product, paper, ceramic, chemical, food, beverage, building material

and so on.
6. Improve logistic efficiency, reduce goods loss during transporting, has waterproof, dustproof, reduce product cost, improve

packaging grade.

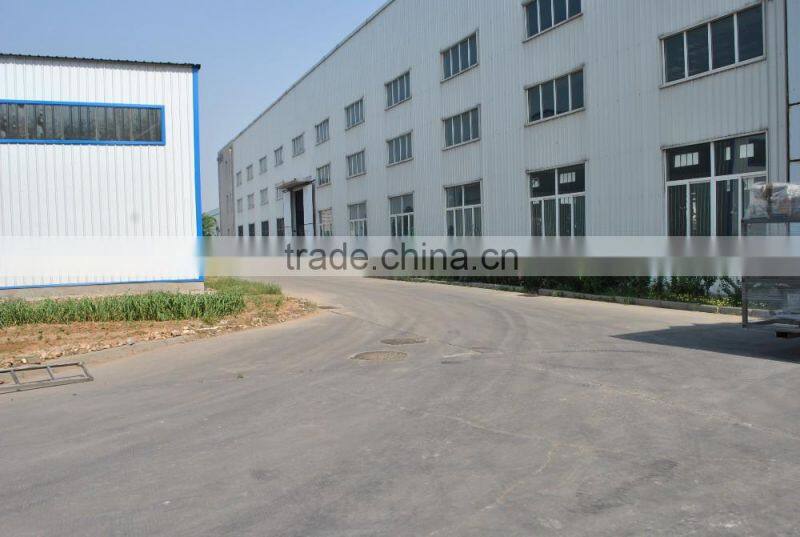

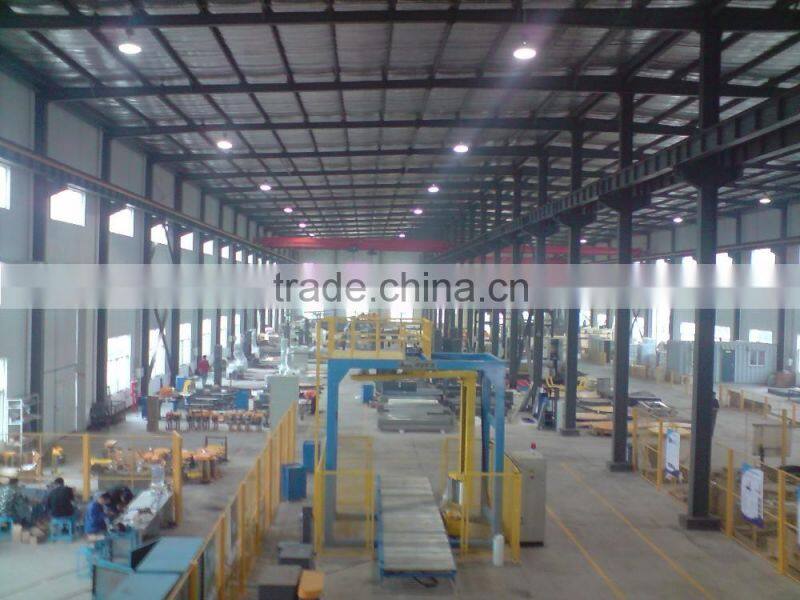

Know us

We already have 16 years manufacturing experience, and will supply best service to each customer,trust you,we will be your best choice.


FAQ

You will care the following FAQ:

1. What about your stretch wrapping machine quality?
Our factory has 16 years experience in wrapping machine; already get ISO9001, SGS certificate, CE certificate;

already exported into many countries and areas; already got customer’s good reputation.

2. What about your stretch wrapping machine price?
Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!

3. What about your company service for stretch wrapping machine?
Guarantee is one year, we will supply spare parts or send engineers to your side free,we will give you service

anytime, 24 hours, 7days.
