Home > Construction & Decoration > Heat Insulation Material > Glass Wool > Dual Wall Glue Heat Shrinkable Insulating Tube
Dual Wall Glue Heat Shrinkable Insulating Tube
Negotiable
MOQ: 500 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
zhizheng
Model Number:
SRS ID 3.2-70mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Transparent Heat Shrink Polymer Insulator TubeNegotiableMOQ: 1000 Meters -
Polyolefin Heat Shrink TubingNegotiableMOQ: 3000 Meters
-
Adhesive Lined Pipe Insulation Heating Shrink TubingUS$ 0.15 - 12.85MOQ: 500 Meters
-
Hot Melt Adhesive Lined Dual Wall Heat Shrinkable TubeNegotiableMOQ: 500 Meters
-
Adhesive Lined Heat Shrink TubeNegotiableMOQ: 500 Meters
Place of Origin
Hubei, China
Brand Name
zhizheng
Model Number
SRS ID 3.2-70mm
Type
Insulation Sleeving
Material
Other, polyolefin and hot melt adhesive
Application
Low Voltage
Rated Voltage
600V
Tensile Strength
>10.4Mpa
Specifications
dual wall heat shrinkable tube1)excellent insulating and water-proof
2)high shrink ratio(3:1 4:1)
3) ROHS/SGS
dual wall glue heat shrinkable tube:
Description:
The outer wall is made of Polyolefin and with inner wall of hot melt adhesive. Suitable for electrical applications where good longitudinal water tightness is needed.High shrink ratio( 3:1 4:1), having properties of excellent insulating, environmental sealing, and resistant to impact and abrasion.
Applications:
- Protects and seals electronic components, wire splices, back end connectors and cable breakouts.
- High expansion ratio for repairing damaged wire and cable jacketing without removing connectors.
- Protection from fluids, moisture and corrosion in outdoor, automotive and marine applications.
- Rugged protection against abrasion, vibration and flexing.
Technical data sheet:
| Item | Indicators |
| Tensile strength | ≥10.4mpa |
| elongation at breat | ≥ 250% |
| Thermal shock | after 4hours,at 250,no cracking |
| Low temperature performance | after 1hour,at -30,no cracking |
| Withstanding voltage | after 1hour,at 2.2kv,no Breakdown |
| Damage voltage | more than 3.0kv |
| volume resistivity | 1014Ω/cm |
| flammability | Self-extinguishing within 30 seconds |
| water absorption | less than 0.5% |
| eccentricity ratio | less than 30 % |
Specifications:

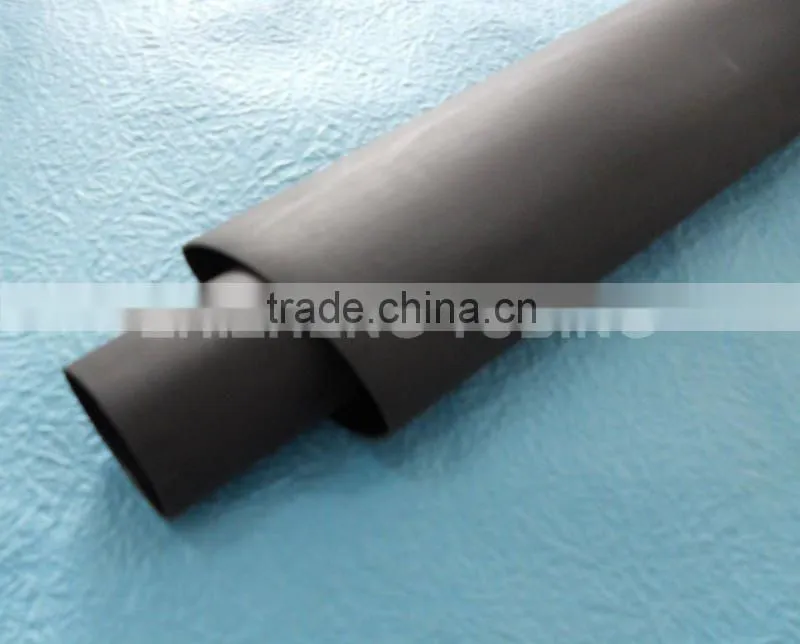

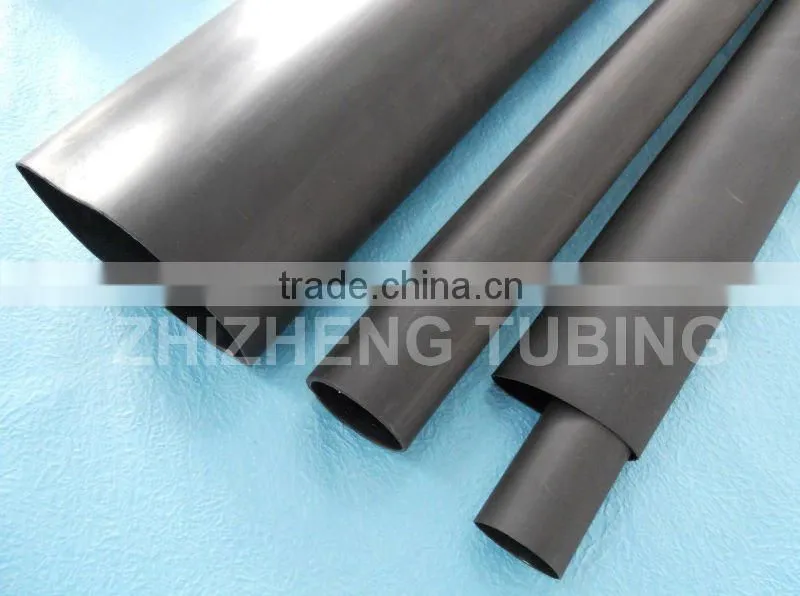

Pictures :
