Specifications
adhesive lined pipe insulation heating tubing1)Excellent Insulation/Waterproof sealing
2)high Shrink Ratio:3:1/4:1
3)UL/Rohs

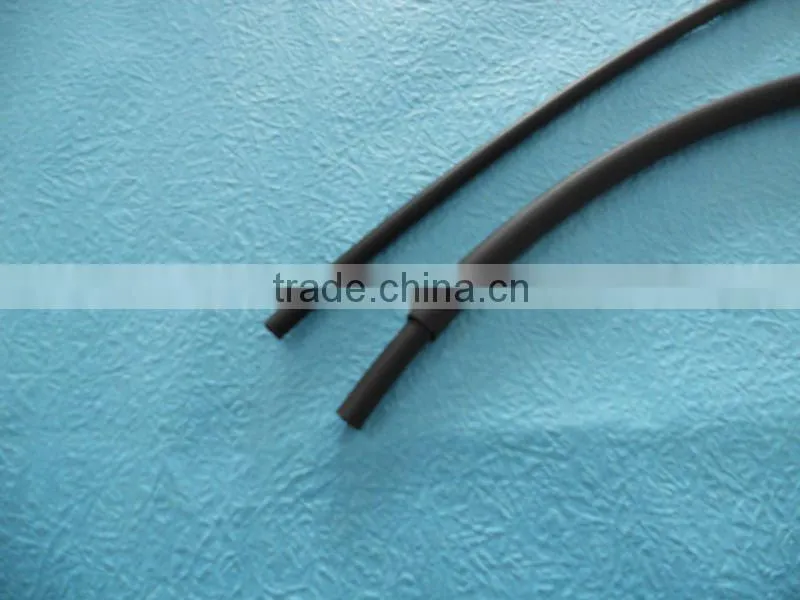

adhesive lined pipe insulation heating
Description:
The outer wall is made of Polyolefin and with inner wall of hot melt adhesive. Suitable for electrical applications where good longitudinal water tighness is needed.High shrink ratio( 3:1 or 4:1),having properties of excellent insulating, environmental sealing, and resistant to impact and abrasion. It is designed for applications to seal and protect electrical splices, cable terminations and Joints kits where electrical insulation and water proof are required
Applications
- 1. Protects and seals electronic components, wire splices, back end connectors and cable breakouts.
- 2. High expansion ratio for repairing damaged wire and cable jacketing without removing connectors. Protection from fluids, moisture and corrosion in outdoor, automotive and marine applications.
- 3. Rugged protection against abrasion, vibration and flexing.
Product Properties:
1. Shrink Ratio available :2:1/ 3:1/ 4:1
2. Totally shrink temperature: 110°C
3. Operating temperature: -55°C~125°C
4. Flame retardant, RoHs compliant,
Specification Catalogue
SRS-3X
Specification |
Before shrinkage(mm) |
After shrinkage(mm) |
Packaging |
|
|
Inner Diameter-D |
Inner diameter-d |
Wall Thickness-t |
m/roll |
φ3.2 |
3.5±0.3 |
1.00 |
0.30±0.05 |
200 |
φ4.8 |
5.2±0.3 |
1.60 |
0.35±0.05 |
100 |
φ6.4 |
6.8±0.4 |
2.20 |
0.35±0.05 |
100 |
φ7.9 |
8.4±0.4 |
2.70 |
0.40±0.05 |
100 |
φ9.5 |
9.9±0.4 |
3.20 |
0.40±0.05 |
1.22 |
φ12.7 |
13.2±0.5 |
4.20 |
0.40±0.05 |
1.22 |
φ15.0 |
15.6±0.5 |
5.20 |
0.40±0.05 |
1.22 |
φ19.1 |
19.6±0.5 |
6.30 |
0.50±0.05 |
1.22 |
φ25.4 |
25.4±0.8 |
8.50 |
0.50±0.05 |
1.22 |
φ30.0 |
≥30 |
10.20 |
0.55±0.05 |
1.22 |
φ39.0 |
≥40 |
13.50 |
0.55±0.05 |
1.22 |
φ50.0 |
≥50 |
17.00 |
0.55±0.05 |
1.22 |
φ64.0 |
≥64 |
21.00 |
0.55±0.05 |
1.22 |
Notes: Other specifications can be offered as requested. | ||||
SRS-4X
Specification |
After shrinkage(mm) |
Packaging |
||
Inner Diameter-d |
Total Wall Thickness(t+t1) |
Adhesive thickness(t1) |
m/roll |
|
φ4.0 |
1.0 |
1.0±0.15 |
0.4±0.15 |
200 |
φ6.0 |
1.5 |
1.1±0.15 |
0.4±0.15 |
100 |
φ8.0 |
2.0 |
1.2±0.15 |
0.5±0.15 |
1.22 |
φ12.0 |
3.0 |
1.4±0.15 |
0.5±0.15 |
1.22 |
φ16.0 |
4.0 |
1.7±0.15 |
0.6±0.15 |
1.22 |
φ20.0 |
5.0 |
2.0±0.15 |
0.6±0.15 |
1.22 |
φ24.0 |
6.0 |
2.1±0.15 |
0.6±0.15 |
1.22 |
φ32.0 |
8.0 |
2.4±0.15 |
0.7±0.15 |
1.22 |
φ52.0 |
13.0 |
2.4±0.15 |
0.7±0.15 |
1.22 |
Notes: Other specifications can be offered as requested. | ||||
Technical Data Sheet
Packaging and shipping:
Packaging: 200m/roll, 100m/roll, 50m/roll, 1.22m/roll etc. (Can be packed or cutted as request)
Shipping:By express(Samples), by air, by sea(Large volume)
Our Services:
1.Payment Terms:T/T transfer, Paypal, Western Union.
2.Delivery time: 10-15 days upon quantity.
3. Samples could be offered free withn 1-5 meters, but the express charge is on the customer’s side.
Company Information:
We are manufactuer of heat shrink tubes for more than 15 years. Our products are widely exported to Asia, North America and Europe etc. We promise to supply you our products in great quality and competitive price.
FAQS:
Things needs to be confirmed before quotation:
1. What type of the heat shrink tube do you need?
1.) Single wall flame retardant heat shrink tube 2.)Adhesive lined double wall heat shrink tube 3.)1KV/11KV/36KV Busbar protection heat shrink tube 4.) Medium wall heat shrink tubes (You can visit our product catergories in our website on alibaba.)
2. What size (inner diameter of the tube)?
Look at the Specification chart.
3. What Color?
Color available: black,white,red,yellow,green,blue, more colors available upon request
4.Shrink ratio?
2:1, 3:1, 4:1
