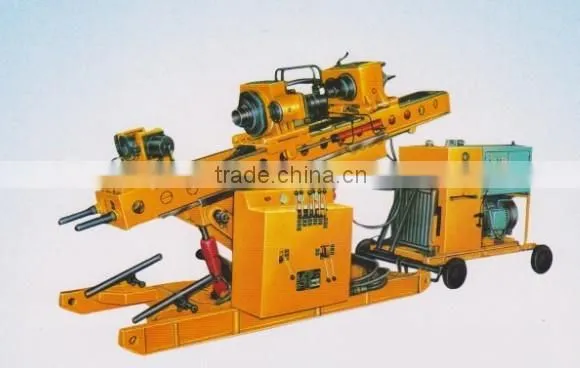

ANCHORING DRILLING MACHINE

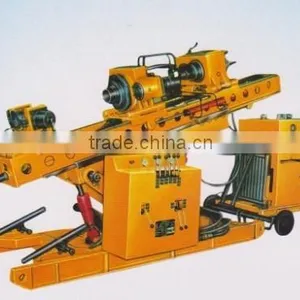

ANCHORING DRILLING MACHINE thumbnail-1
ANCHORING DRILLING MACHINE photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Electric
Place of Origin Chongqing, China
Brand Name gold
Model Number MGY-100A
Usage Water Well

Place of Origin

Chongqing, China (Mainland)

Brand Name

GOLD

Model Number

MGY-100A

Cutting Depth

100-60m

Diameter of Blade

110-200mm

Rotary Speed

1-100r/min

Hydraulic system pressure(Mpa):20

Powerpack weight(kg):700(approximately)
Payment & Shipping Terms:

FOB Price:

US $ 1-3/ Set

Minimum Order Quantity:

1 Set/Sets

Port:

shanghai

Packaging Details:

wooden case

Delivery Time:

15days

Payment Terms:

L/C,T/T

Supply Ability:

20 Set/Sets per Month



Detailed Product Description



MGY-100A anchoring chilling machine used in drilling soil and rock anchoring hole for prevention and fix of geology disaster

APPLICATIONS:

    MGY-100A anchoring chilling machine is an important project of "the Ninth five" of the state. Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric powerstation, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.

2. FEATURES:

 Hydraulic top head, hydraulic powerstation separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
 It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
 Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
 Large powered, top-drive head has big torque and pull force, wide rotary speed range.
 Holder and unscrew device, working efficiently, labor saving.
 2-tier guiding rail, easy to find hole position.

Technical Specifications

Hole dia(mm)

110-200

Drilling depth(m)

100-60

Hydraulic power pack type

Variable(Electric motor)



Power model

Y200L2-2

CC490Q

Power and ratings

37Kw/2950r/min

36Kw/2800r/min


Hydraulic system pressure(Mpa)

20

A-top drill head speeds(r/min)


Ⅰseries

0-100

0-95

Ⅱ series

0-30

0-29

A-top drill head torque(Nm)

Ⅰseries

1600

Ⅱ series

5000

B-top drill head speed(r/min)

0

10

BB-top drill head torque(Nm)

6400

lift/feed speeds (m/s)

0-0.16/0-0.21

Max pull force/Max push force(N)

80000/57000

Max feed stroke (mm)

2000

Drilling angle(°)

Elevation20°Depression angle100°

mast Raised height horizontally(mm)

300

Drill body weight (kg)

1800(approximately)

Powerpack weight(kg)

700(approximately)

Mount type

Plate mounted,drill body separated from power
