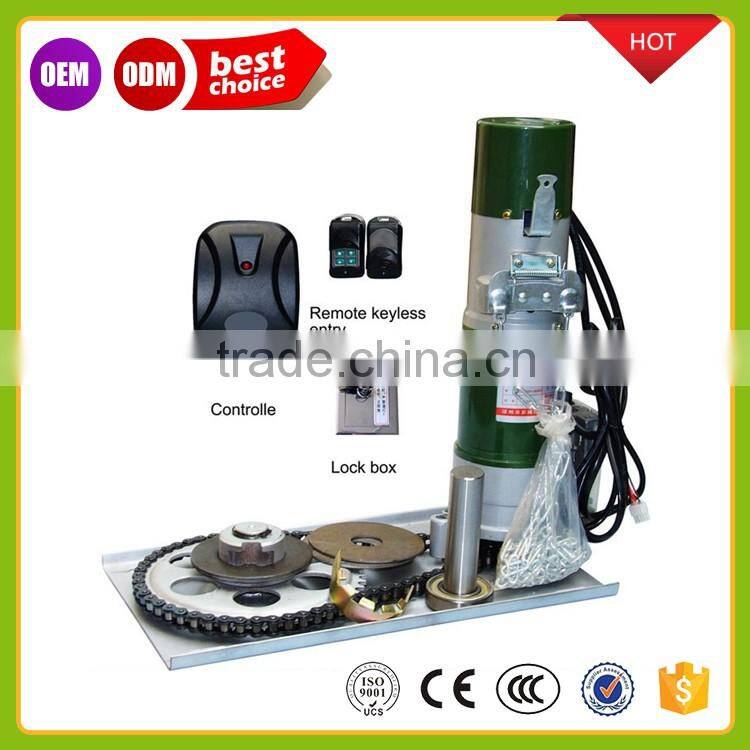

low price automatic garage door operator roller side rolling motor ac anti-thief rolling door operator China manufacture
- 5000 Set / Sets per Month
- xiamen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Fujian, China | Brand Name: | door motor | Model Number: | 600KG ac door operator |
Product Description
Add safety edge can rebound when meet obstacle
Add alarm system can sounds when door is opened by thief
low price automatic garage door operator roller side rolling motor ac anti-thief rolling door operator China manufacture
MAIN TECHNICAL PARAMENT | |||||||||
Model | Power source | Rated frequency | Rated Power (W) | Rate Load | Output rotate speed(R/.MIN) | Max raising height (M) | Short-team ration (MIN) | ||
Rated current (A) | Lifting Force (KG) | Output torque (N.M) | |||||||
AL-1P-I(300Kg) | 220V | 50Hz | 180 | 2.5 | 300 | 150 | 5.2 | 6.0 | 8 |
AL-1P-(400Kg) | 220V | 50Hz | 220 | 2.5 | 400 | 168 | 5.2 | 6.0 | 8 |
AL-1P(500Kg) | 220V | 50Hz | 250 | 2.5 | 500 | 168 | 5.2 | 6.0 | 8 |
AL-1P-(600Kg) | 220V | 50Hz | 370 | 3.5 | 600 | 412 | 5.2 | 6.0 | 8 |
AL-3P-(600Kg) | 220V | 50Hz | 300 | 3.5 | 600 | 412 | 5.2 | 6.0 | 8 |
AL-1P-(800Kg) | 220V | 50Hz | 400 | 4.0 | 800 | 647 | 4.6 | 9.0 | 8 |
AL-3P-(800Kg) | 380V | 50Hz | 400 | 4.0 | 800 | 647 | 4.6 | 9.0 | 8 |
AL-1P-(1000Kg) | 220V | 50Hz | 400 | 4.5 | 1000 | 810 | 4.2 | 9.0 | 8 |
AL-3P-(1000Kg) | 380V | 50Hz | 400 | 4.5 | 1000 | 810 | 4.2 | 9.0 | 15 |
AL-3P-(1300Kg) | 380V | 50Hz | 800 | 4.5 | 1300 | 1401 | 4.2 | 13.0 | 15 |
AL-3P-(1500Kg) | 380V | 50Hz | 800 | 4.5 | 1500 | 1617 | 3.8 | 13.0 | 15 |
AL-3P-(2000Kg) | 380V | 50Hz | 1500 | 4.5 | 2000 | 2450 | 3.6 | 15.0 | 15 |
What is the Features of our garage door side mount opener?
1) Shell: Aluminium alloy, solid and light but durable and easy to install.
2) Gear: High-quality alloy steel and special technical treatment to guarantee the strong hoist.
3) Brake structure: special device mechanical brakes, power cut off in an instant
the brakes, to ensure absolute safety brake.
4) Limit System: Correct control, easy operation, and big control range.
5) Transmission System: High accuracy, smooth running, and low noise.
6) Anti-dro garage garage door side mount opener

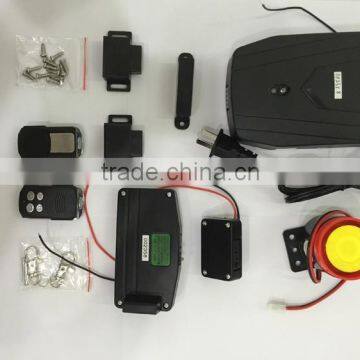

packing spare parts
1:Motor(Including power line)

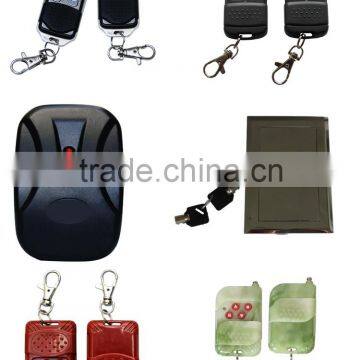

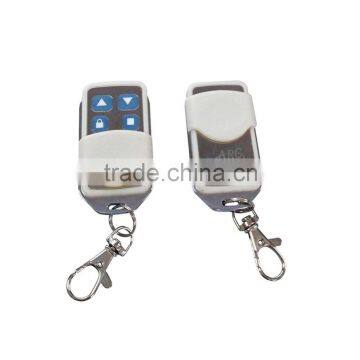

2.Remote controller(Including 2 transmitter)
3:Bracket board(Including random accessories)
Random accessories
1:Bracket board 1 pc 2.Big sprocket wheel 1set 3.Rolling chain 1 set 4:shaft 1pc 5:Bearing,bearing block 1set
6.Strapdrive 1pc 7.support plate 2pc 8.Screw spare parts 1 package
INSPECTION, PACKING AND SHIPPING
| AC garage door side mount opener | DC door opener |
| Sliding motor | Shutter pannel |
Welcome to visit our alibaba website http://zzanling.en.china.cn and
Add Company to My Favorites
FAQ
- QWhat is the MOQ ?
- A1 ton for our own available designs
- QCan I mix different designs?
- ASure!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
- QCan I get the pre-production sample ?
- AYes, we will send you free sample, after you confirm, then we will start production.
- QWhen you ship my order?
- ANormally 1-7days after receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AFive year!
- QHow can you guarantee the production quality ?
- AOur production quality follow AS/NZS 4859.1standard We have 15years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
