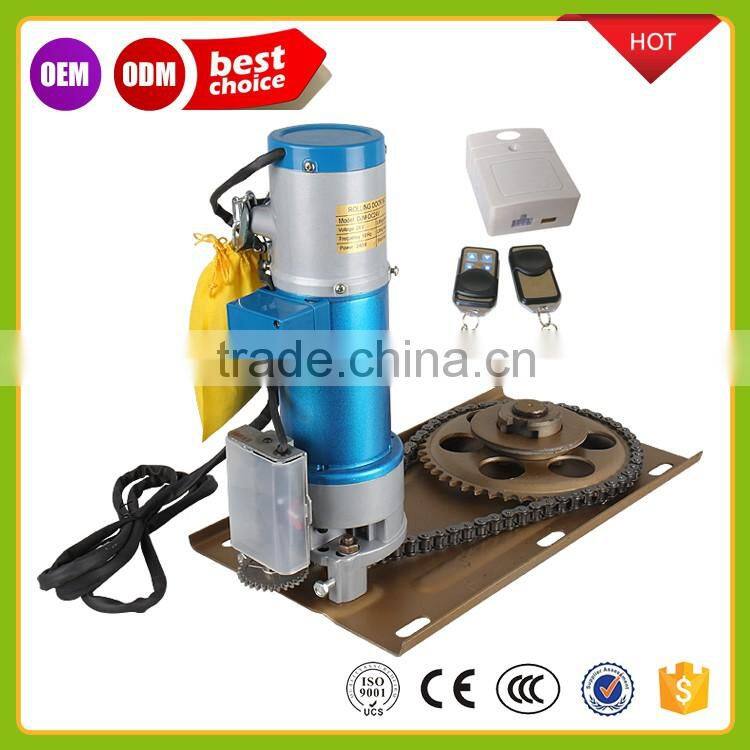

Wholesale Supplierelectric Door Motor 12w,easylift Garage Door Motor,dc Electric Roll up Door Motor
- xiamen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Favorable Price dc Rolling Door Motor Opener Fast Roller Door Motor ,electric Rolling Door Motors
-
Side Roller Shutter Door Motor Rolling Shutter Door Motor Operator, Shutter Sliding Door Motor
-
High Quality Door Motors Warehouse Door Motor Remote Control Electric Door Motor
-
Push Style Industrial Roll up Door Motor Garage Door Opener Side Mount,industrial dc Rolling Door Motor
-
Made in China Rolling Roller Shutter Door Motor,roller Shutter Door Motor Price,roller Door Motor Remote Controller
-
Wholesale Supplier for Industrial Rolling Door Motor
Product Description
Add safety edge can rebound when meet obstacle
Add alarm system can sounds when door is opened by thief
wholesale supplierelectric door motor 12w,easylift garage door motor,dc electric roll up door motor
MAIN TECHNICAL PARAMENT | |||||||||
Model | Power source | Rated frequency | Rated Power (W) | Rate Load | Output rotate speed(R/.MIN) | Max raising height (M) | Short-team ration (MIN) | ||
Rated current (A) | Lifting Force (KG) | Output torque (N.M) | |||||||
AL-1P-I(300Kg) | 220V | 50Hz | 180 | 2.5 | 300 | 150 | 5.2 | 6.0 | 8 |
AL-1P-(400Kg) | 220V | 50Hz | 220 | 2.5 | 400 | 168 | 5.2 | 6.0 | 8 |
AL-1P(500Kg) | 220V | 50Hz | 250 | 2.5 | 500 | 168 | 5.2 | 6.0 | 8 |
AL-1P-(600Kg) | 220V | 50Hz | 370 | 3.5 | 600 | 412 | 5.2 | 6.0 | 8 |
AL-3P-(600Kg) | 220V | 50Hz | 300 | 3.5 | 600 | 412 | 5.2 | 6.0 | 8 |
AL-1P-(800Kg) | 220V | 50Hz | 400 | 4.0 | 800 | 647 | 4.6 | 9.0 | 8 |
AL-3P-(800Kg) | 380V | 50Hz | 400 | 4.0 | 800 | 647 | 4.6 | 9.0 | 8 |
AL-1P-(1000Kg) | 220V | 50Hz | 400 | 4.5 | 1000 | 810 | 4.2 | 9.0 | 8 |
AL-3P-(1000Kg) | 380V | 50Hz | 400 | 4.5 | 1000 | 810 | 4.2 | 9.0 | 15 |
AL-3P-(1300Kg) | 380V | 50Hz | 800 | 4.5 | 1300 | 1401 | 4.2 | 13.0 | 15 |
AL-3P-(1500Kg) | 380V | 50Hz | 800 | 4.5 | 1500 | 1617 | 3.8 | 13.0 | 15 |
AL-3P-(2000Kg) | 380V | 50Hz | 1500 | 4.5 | 2000 | 2450 | 3.6 | 15.0 | 15 |
What is the Features of our gate mule?
1) Shell: Aluminium alloy, solid and light but durable and easy to install.
2) Gear: High-quality alloy steel and special technical treatment to guarantee the strong hoist.
3) Brake structure: special device mechanical brakes, power cut off in an instant
the brakes, to ensure absolute safety brake.
4) Limit System: Correct control, easy operation, and big control range.
5) Transmission System: High accuracy, smooth running, and low noise.
6) Anti-dro garage gate mule
packing spare parts
1:Motor(Including power line)
2.Remote controller(Including 2 transmitter)
3:Bracket board(Including random accessories)
Random accessories
1:Bracket board 1 pc 2.Big sprocket wheel 1set 3.Rolling chain 1 set 4:shaft 1pc 5:Bearing,bearing block 1set
6.Strapdrive 1pc 7.support plate 2pc 8.Screw spare parts 1 package
INSPECTION, PACKING AND SHIPPING
| AC gate mule | DC door opener |
| Sliding motor | Shutter pannel |
Welcome to visit our alibaba website http://zzanling.en.china.cn and
Add Company to My Favorites
FAQ
- QWhat is the MOQ ?
- A1 ton for our own available designs
- QCan I mix different designs?
- ASure!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
- QCan I get the pre-production sample ?
- AYes, we will send you free sample, after you confirm, then we will start production.
- QWhen you ship my order?
- ANormally 1-7days after receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AFive year!
- QHow can you guarantee the production quality ?
- AOur production quality follow AS/NZS 4859.1standard We have 15years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
