Medical Stainless Steel Micro Tubes

US$ 0.3 - 0.9 MOQ: 100 Pieces

Key Specifications

Thickness:

0.03, 0.5

Section Shape:

Other, round,rectangular,etc

Place of Origin:

Jiangsu, China

Nanjing Yuhuatai Tello Stainless Steel Products Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Thickness 0.03, 0.5

Section Shape Other, round,rectangular,etc

Place of Origin Jiangsu, China

Secondary Or Not Non-secondary

Application Other, industry,electronic,medical device,boiler/heatmedical device,etc

Technique ERW

Certification Other, ISO

Surface Treatment Other, smooth,bright,etc.

Alloy Or Not Non-alloy

Specifications

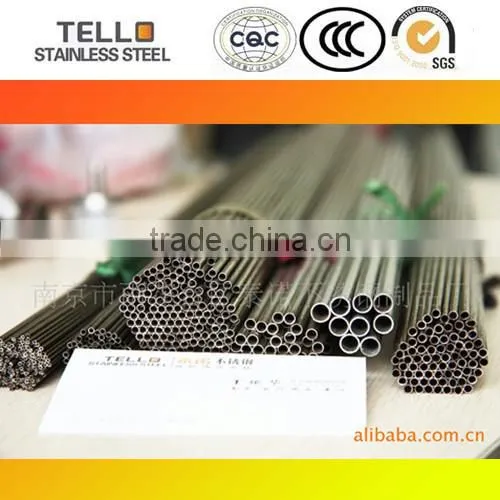

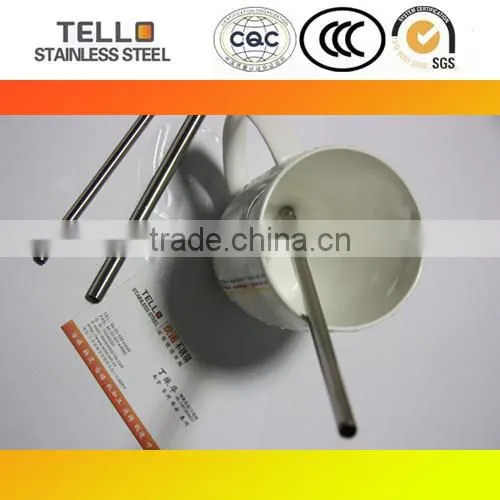

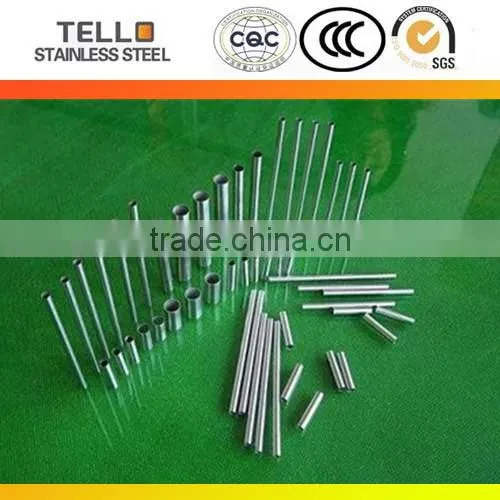

medical stainless steel micro tubes
1.grade:201,304,316,316l.etc
2.ISO,SGS
3.diameter:various,customized.

medical stainless steel micro tubes

Name	Stainless Steel Sanitary Capillary Tube
Standard	ASTM A554, A312, A249, A269 and A270
Material Grade	304,316,201,202, 316L,430
Size Range	1) Outer diameter:≥1mm 2) Wall thickness: ≥0.4mm
Length	6m or as customers' request
Tolerance	a) Outer Diameter: +/-0. 15mm
	b) Thickness: +/- 0.02mm
	c) Length:+/-4. 5mm - 0mm
Surface	180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish
Application	Ornamental tubes, Decoration construction, upholstery, industry instruments
Test	Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT
Chemical Composition of Material	Composition Material	201	202	304	316	430
	C	≤0.15	≤0.15	≤0.08	≤0.08	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	16-18	17-19	18-20	16-18	16-18
	Ni	3.5-5.5	4-6	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<253	<253	<200	<200
