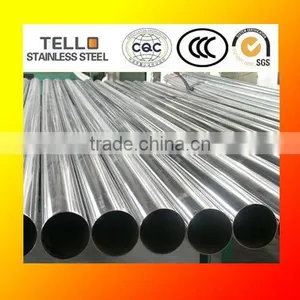

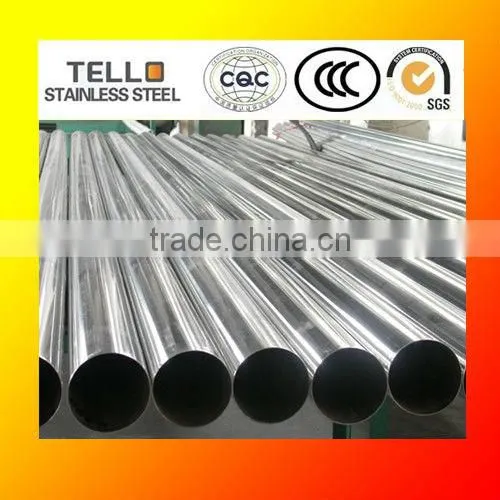

201 Stainless Steel Welded Tube

Name: 201 Stainless Steel Welded Tube
Brand: Tello stainless steel
SKU: 128855331
Availability: InStock

US$ 850 - 4,000 MOQ: 1 Ton

Key Specifications

Standard:

JIS, AISI, ASTM, GB, DIN

Place of Origin:

Jiangsu, China

Brand Name:

Tello stainless steel

Nanjing Yuhuatai Tello Stainless Steel Products Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Standard JIS, AISI, ASTM, GB, DIN

Place of Origin Jiangsu, China

Brand Name Tello stainless steel

Model Number various

Type Welded

Steel Grade 300 Series

Application industry,decoration, medical,ball point pen and structure

Certification SGS

Welding Line Type Spiral Welded

Thickness ≥0.4mm

Outer Diameter ≥1mm

Specifications

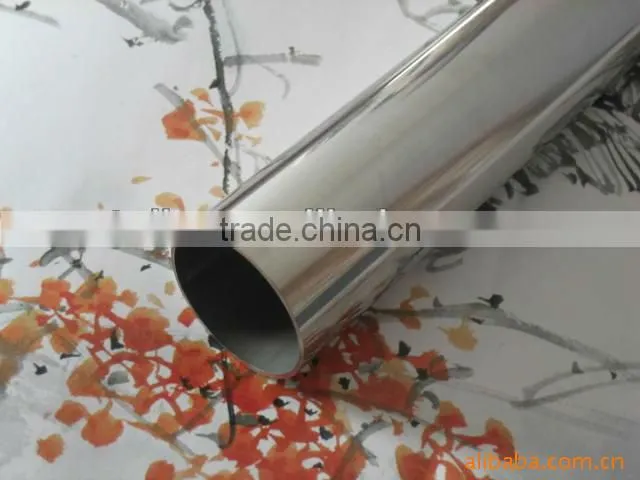

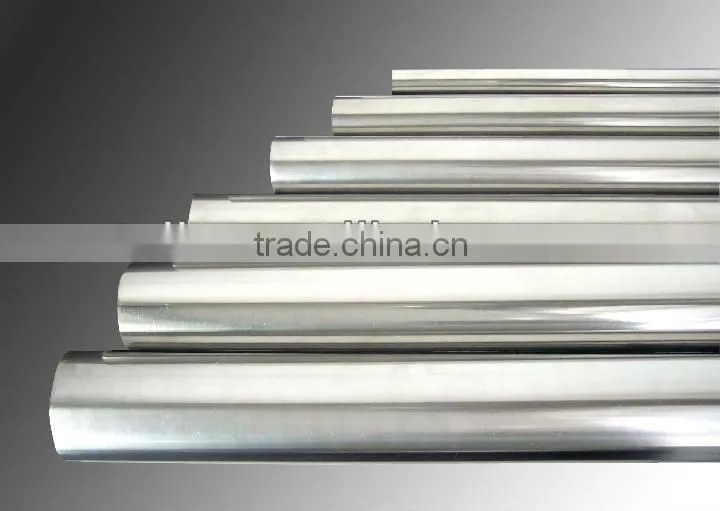

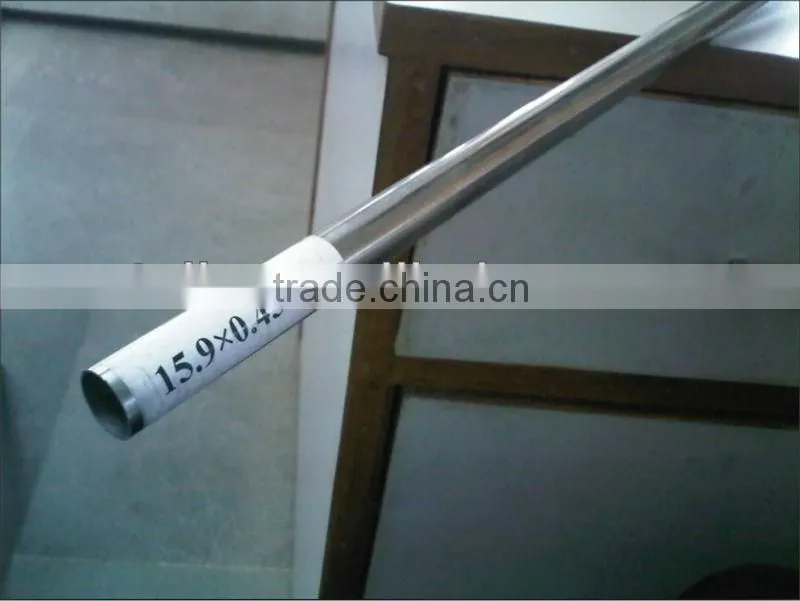

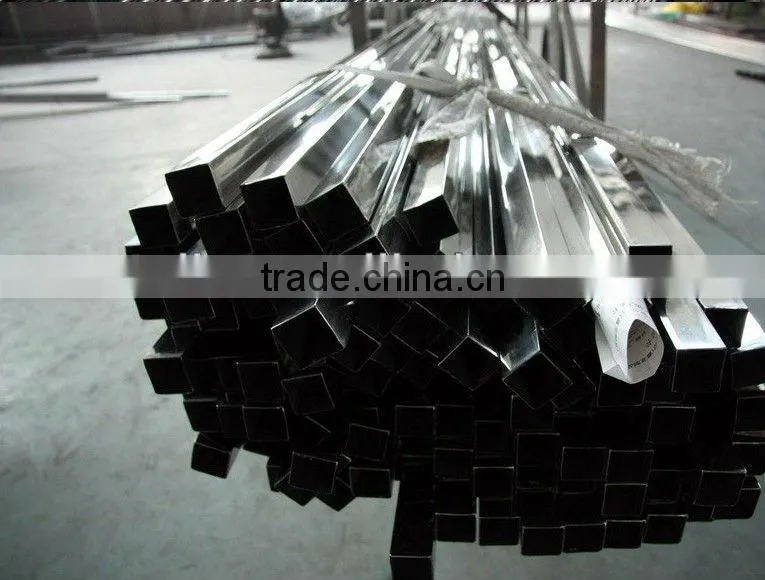

201 stainless steel welded tube
1.Grade:201,304,316,316L.etc
2.Length:6m/pc (be customized)
3.ISO,SGS
4.OEM service availabl

201 stainless steel welded tube

Name	Stainless Steel tube
Standard	ASTM A554, A312, A249, A269 and A270
Material Grade	304,316,201,202, 316L,430
Size Range	1) Outer diameter:≥1mm 2) Wall thickness: ≥0.4mm
Length	6m or as customers' request
Tolerance	a) Outer Diameter: +/-0. 15mm
	b) Thickness: +/- 0.02mm
	c) Length:+/-4. 5mm - 0mm
Surface	180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish
Application	Ornamental tubes, Decoration construction, upholstery, industry instruments
Test	Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT
Chemical Composition of Material	Composition Material	201	202	304	316	430
	C	≤0.15	≤0.15	≤0.08	≤0.08	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	16-18	17-19	18-20	16-18	16-18
	Ni	3.5-5.5	4-6	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<253	<253	<200	<200
