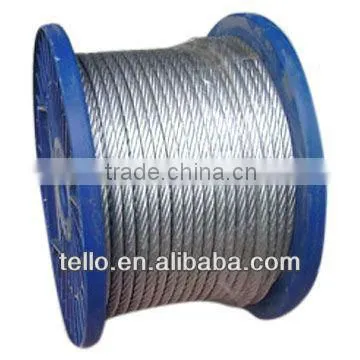

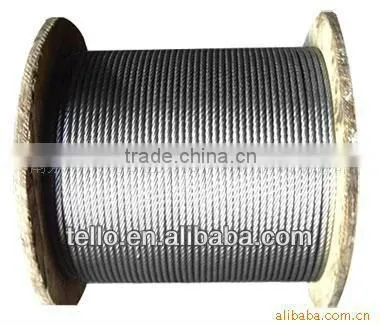

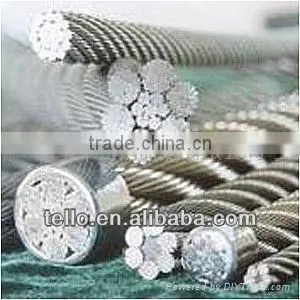

Help CenterStainless Steel Wire Rope
US$ 0.2 - 20
MOQ: 200 Meters
Key Specifications
Get Latest Price
Steel Grade:
Stainless Steel,201,304,316.etc.
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:
various
Payment & Shipping
Payment Methods:
Port of Shipment:
shangahi
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Wire Rope ManufactureUS$ 0.2 - 1.5MOQ: 100 Meters -
Steel Wire Ropes for LiftsUS$ 0.25 - 25MOQ: 100 Meters
-
1x7 Steel Wire RopesUS$ 0.2 - 30MOQ: 100 Meters
-
Steel Wire Nylon Coated 0.45 mm DiameterUS$ 0.3 - 2MOQ: 200 Meters
-
Nylon Coated 316 Grade Stainless Steel CableUS$ 0.3 - 2MOQ: 200 Meters
Steel Grade
Stainless Steel,201,304,316.etc.
Standard
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge
various
Place of Origin
Jiangsu, China
Application
Other, Construction,Industry,machine, Aircraft,Rigging...
Model Number
all size,as requirements.
Brand Name
TELLO
Specifications
stainless steel wire rope1.Factory Price
2.ISO,SGS
stainless steel wire rope
| construction | dia(mm) | tolerance | Appro Weight(kg/100m) | MBL/KN |
| 1*7 | 0.3 | 0/+0.08 | 0.05 | 0.075 |
| 0.4 | 0.08 | 0.133 | ||
| 0.6 | 0.18 | 0.3 | ||
| 0.8 | 0.32 | 0.533 | ||
| 1 | 0.51 | 0.832 | ||
| 1.2 | 0.73 | 1.198 | ||
| 1.5 | 1.14 | 1.872 | ||
| 1.8 | 1.64 | 2.696 | ||
| 2 | 2.02 | 3.325 | ||
| 2.5 | 3.16 | 5.201 | ||
| 3 | 4.55 | 7.489 | ||
| 4 | 0/+0.07 | 8.08 | 13.314 | |
| 1*19 | 0.8 | 0/+0.08 | 0.31 | 0.53 |
| 1 | 0.49 | 0.82 | ||
| 1.5 | 1.11 | 1.85 | ||
| 1.8 | 1.6 | 2.67 | ||
| 2 | 1.98 | 3.3 | ||
| 2.5 | 3.09 | 5.16 | ||
| 3 | 4.45 | 7.43 | ||
| 4 | 0/+0.07 | 7.92 | 13.21 | |
| 5 | 12.37 | 20.64 | ||
| 6 | 0/+0.06 | 17.82 | 29.72 | |
| 8 | 0/+0.05 | 31.68 | 52.85 | |
| 10 | 49.6 | 82.58 | ||
| 12 | 71.28 | 118.91 | ||
| 1*37 | 5 | 0/+0.07 | 12.23 | 20.41 |
| 6 | 0/+0.06 | 17.6 | 29.39 | |
| 8 | 0/+0.05 | 31.3 | 52.25 | |
| 10 | 48.9 | 81.64 | ||
| 12 | 70.42 | 117.56 | ||
| 14 | 95.84 | 160.01 | ||
| 16 | 125.18 | 208.99 | ||
| 18 | 158.44 | 264.51 | ||
| 20 | 195.6 | 326.56 | ||
| 7*7 | 0.33 | 0.037 | 0.1 | |
| 0.36 | 0/+0.08 | 0.054 | 0.15 | |
| 0.5 | 0.09 | 0.14 | ||
| 0.8 | 0.25 | 0.29 | ||
| 1 | 0.39 | 0.56 | ||
| 1.2 | 0.56 | 0.81 | ||
| 1.5 | 0.88 | 1.27 | ||
| 1.8 | 1.27 | 1.83 | ||
| 2 | 1.57 | 2.25 | ||
| 2.5 | 2.45 | 3.52 | ||
| 3 | 3.53 | 5.07 | ||
| 4 | 0/+0.07 | 6.28 | 9.01 | |
| 5 | 9.82 | 14.09 | ||
| 6 | 0/+0.06 | 14.14 | 20.29 | |
| 8 | 0/+0.05 | 25.15 | 36.07 | |
| 10 | 39.3 | 56.36 | ||
| 12 | 56.59 | 81.16 | ||
| 7*19 | 1.2 | 0/+0.08 | 0.54 | 0.75 |
| 1.5 | 0.85 | 1.17 | ||
| 1.8 | 1.23 | 1.68 | ||
| 2 | 1.52 | 2.08 | ||
| 2.5 | 2.38 | 3.25 | ||
| 3 | 3.42 | 4.69 | ||
| 4 | 0/+0.07 | 6.09 | 8.33 | |
| 5 | 9.52 | 13.03 | ||
| 6 | 0/+0.06 | 13.71 | 18.76 | |
| 7 | 18.66 | 25.54 | ||
| 8 | 0/+0.05 | 24.38 | 33.35 | |
| 10 | 38.1 | 52.12 | ||
| 12 | 54.86 | 75.05 | ||
| 14 | 74.67 | 102.16 | ||
| 16 | 97.53 | 133.43 | ||
| 18 | 123.44 | 168.88 | ||
| 20 | 152.4 | 208.49 | ||
| 24 | 219.45 | 300.23 | ||
| 26 | 257.55 | 352.35 | ||
| 6*19S/W+IWRC | 8 | 0/+0.05 | 25.92 | 35.77 |
| 10 | 40.5 | 55.89 | ||
| 12 | 58.32 | 80.48 | ||
| 14 | 79.38 | 109.55 | ||
| 16 | 103.68 | 143.08 | ||
| 18 | 131.22 | 181.09 | ||
| 20 | 162 | 223.57 | ||
| 6*36S/W+IWRC | 8 | 0/+0.05 | 26.75 | 35.77 |
| 10 | 41.8 | 55.89 | ||
| 12 | 60.19 | 80.48 | ||
| 14 | 81.93 | 109.55 | ||
| 16 | 107.01 | 143.08 | ||
| 18 | 135.43 | — | ||
| 20 | 167.2 | — | ||
| 22 | 202.31 | — | ||
| 24 | 240.77 | — | ||
| 26 | 282.57 | — | ||
| 28 | 327.71 | — | ||
| 19*7 | 4 | 0/+0.07 | 6.43 | 7.61 |
| 5 | 10.05 | 13.58 | ||
| 6 | 0/+0.06 | 14.47 | 19.56 | |
| 7 | 19.69 | 26.62 | ||
| 8 | 0/+0.05 | 25.73 | 34.77 | |
| 10 | 40.2 | 54.32 | ||
| 12 | 57.89 | 78.22 | ||
| 14 | 78.79 | 106.47 | ||
| 16 | 102.91 | 139.06 | ||
| 18 | 130.25 | 176 | ||
| 20 | 160.8 | 217.29 |
selection Material: Stainless Steel,201,301,304,316...
Packing:wood reel,plastic reel , carton, as your requirements.
We are the professional manufactury for stainless steel products.
Various stainless steel products with high quality with the factory price.
Send Inquiry to This Supplier
Mr. Zhenhua Ding
Manager
Nanjing Yuhuatai Tello Stainless Steel Products Factory
Nanjing, Jiangsu, China
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
Below 1,000 square meters
Total Employees
101 - 200 People
